Definition Type: Element
Name: PLPivotField
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:PLPivotFieldType
Containing Schema: excel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.

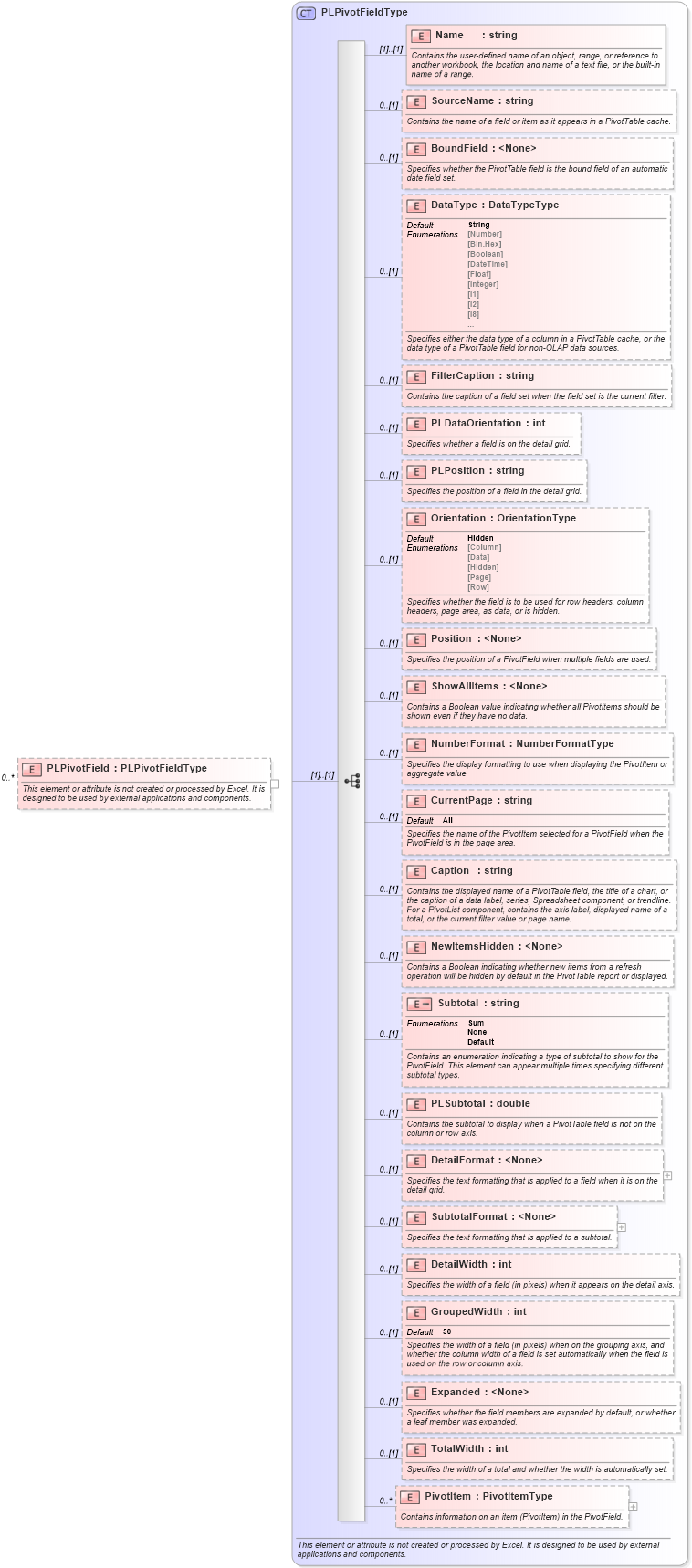

Collapse XSD Schema Diagram:
Drilldown into PivotItem in schema excel_xsd Drilldown into TotalWidth in schema excel_xsd Drilldown into Expanded in schema excel_xsd Drilldown into GroupedWidth in schema excel_xsd Drilldown into DetailWidth in schema excel_xsd Drilldown into SubtotalFormat in schema excel_xsd Drilldown into DetailFormat in schema excel_xsd Drilldown into PLSubtotal in schema excel_xsd Drilldown into Subtotal in schema excel_xsd Drilldown into NewItemsHidden in schema excel_xsd Drilldown into Caption in schema excel_xsd Drilldown into CurrentPage in schema excel_xsd Drilldown into NumberFormat in schema excel_xsd Drilldown into ShowAllItems in schema excel_xsd Drilldown into Position in schema excel_xsd Drilldown into Orientation in schema excel_xsd Drilldown into PLPosition in schema excel_xsd Drilldown into PLDataOrientation in schema excel_xsd Drilldown into FilterCaption in schema excel_xsd Drilldown into DataType in schema excel_xsd Drilldown into BoundField in schema excel_xsd Drilldown into SourceName in schema excel_xsd Drilldown into Name in schema excel_xsd Drilldown into PLPivotFieldType in schema excel_xsdXSD Diagram of PLPivotField in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="PLPivotField" type="PLPivotFieldType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name x:Name (1) (1)
SourceName x:SourceName 0 (1)
BoundField x:BoundField 0 (1)
DataType x:DataType 0 (1)
FilterCaption x:FilterCaption 0 (1)
PLDataOrientation x:PLDataOrientation 0 (1)
PLPosition x:PLPosition 0 (1)
Orientation x:Orientation 0 (1)
Position x:Position 0 (1)
ShowAllItems x:ShowAllItems 0 (1)
NumberFormat x:NumberFormat 0 (1)
CurrentPage x:CurrentPage 0 (1)
Caption x:Caption 0 (1)
NewItemsHidden x:NewItemsHidden 0 (1)
Subtotal x:Subtotal 0 (1)
PLSubtotal x:PLSubtotal 0 (1)
DetailFormat x:DetailFormat 0 (1)
SubtotalFormat x:SubtotalFormat 0 (1)
DetailWidth x:DetailWidth 0 (1)
GroupedWidth x:GroupedWidth 0 (1)
Expanded x:Expanded 0 (1)
TotalWidth x:TotalWidth 0 (1)
PivotItem x:PivotItem 0 unbounded
Collapse Derivation Tree:
