Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: PLTotal
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:PLTotalType
Containing Schema: excel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.

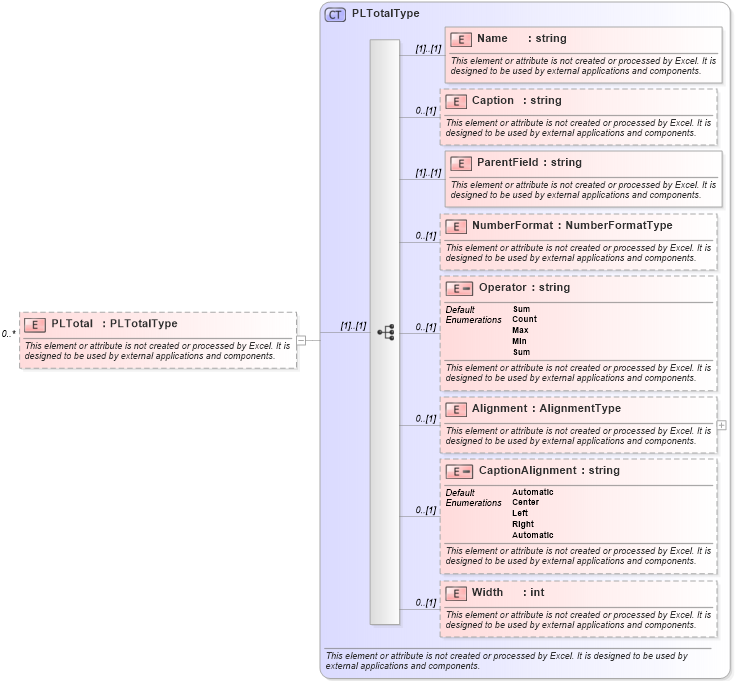

Collapse XSD Schema Diagram:
Drilldown into Width in schema excel_xsd Drilldown into CaptionAlignment in schema excel_xsd Drilldown into Alignment in schema excel_xsd Drilldown into Operator in schema excel_xsd Drilldown into NumberFormat in schema excel_xsd Drilldown into ParentField in schema excel_xsd Drilldown into Caption in schema excel_xsd Drilldown into Name in schema excel_xsd Drilldown into PLTotalType in schema excel_xsdXSD Diagram of PLTotal in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="PLTotal" type="PLTotalType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name x:Name (1) (1)
Caption x:Caption 0 (1)
ParentField x:ParentField (1) (1)
NumberFormat x:NumberFormat 0 (1)
Operator x:Operator 0 (1)
Alignment x:Alignment 0 (1)
CaptionAlignment x:CaptionAlignment 0 (1)
Width x:Width 0 (1)
Collapse Derivation Tree:
