Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: PLTPivotItem
Namespace: urn:schemas-microsoft-com:office:excel
Type: x:PivotItemType
Containing Schema: excel.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.

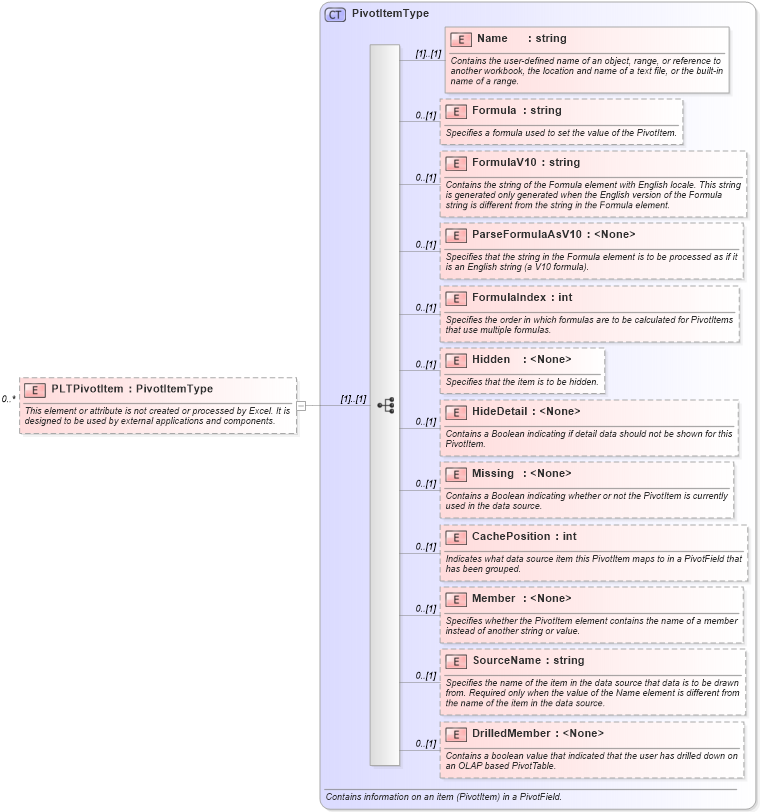

Collapse XSD Schema Diagram:
Drilldown into DrilledMember in schema excel_xsd Drilldown into SourceName in schema excel_xsd Drilldown into Member in schema excel_xsd Drilldown into CachePosition in schema excel_xsd Drilldown into Missing in schema excel_xsd Drilldown into HideDetail in schema excel_xsd Drilldown into Hidden in schema excel_xsd Drilldown into FormulaIndex in schema excel_xsd Drilldown into ParseFormulaAsV10 in schema excel_xsd Drilldown into FormulaV10 in schema excel_xsd Drilldown into Formula in schema excel_xsd Drilldown into Name in schema excel_xsd Drilldown into PivotItemType in schema excel_xsdXSD Diagram of PLTPivotItem in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="PLTPivotItem" type="PivotItemType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name x:Name (1) (1)
Formula x:Formula 0 (1)
FormulaV10 x:FormulaV10 0 (1)
ParseFormulaAsV10 x:ParseFormulaAsV10 0 (1)
FormulaIndex x:FormulaIndex 0 (1)
Hidden x:Hidden 0 (1)
HideDetail x:HideDetail 0 (1)
Missing x:Missing 0 (1)
CachePosition x:CachePosition 0 (1)
Member x:Member 0 (1)
SourceName x:SourceName 0 (1)
DrilledMember x:DrilledMember 0 (1)
Collapse Derivation Tree:
