Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: PolylineTo_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:IndexedRow_Type
Containing Schema: visio.xsd
Abstract

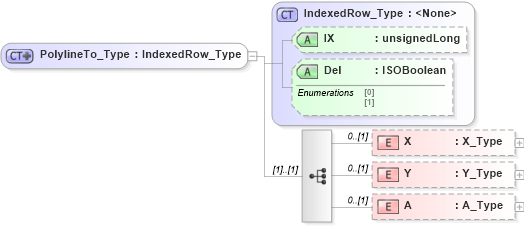

Collapse XSD Schema Diagram:
Drilldown into A in schema visio_xsd Drilldown into Y in schema visio_xsd Drilldown into X in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into IX in schema visio_xsd Drilldown into IndexedRow_Type in schema visio_xsdXSD Diagram of PolylineTo_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="PolylineTo_Type">
    <xsd:complexContent>
        <xsd:extension base="IndexedRow_Type">
            <xsd:sequence>
                <xsd:element name="X" type="X_Type" minOccurs="0" />
                <xsd:element name="Y" type="Y_Type" minOccurs="0" />
                <xsd:element name="A" type="A_Type" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
X nsA:X 0 (1)
Y nsA:Y 0 (1)
A nsA:A 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
IX nsA:IX (Optional)
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:PolylineTo
