Definition Type: ComplexType
Name: PrintType
Namespace: urn:schemas-microsoft-com:office:excel
Containing Schema: excel.xsd
Abstract
Documentation:
Contains workbook and worksheet print options.

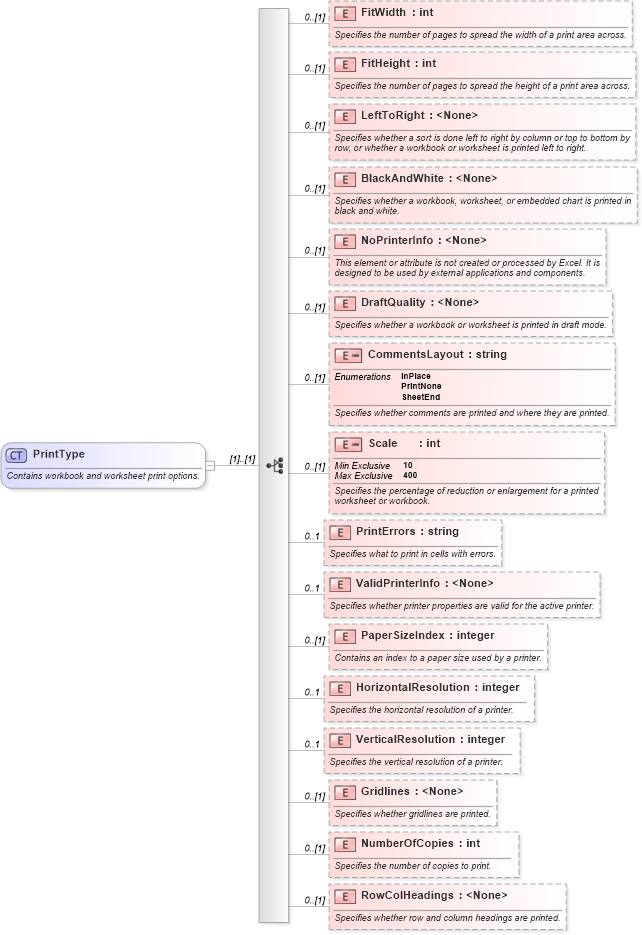

Collapse XSD Schema Diagram:
Drilldown into RowColHeadings in schema excel_xsd Drilldown into NumberOfCopies in schema excel_xsd Drilldown into Gridlines in schema excel_xsd Drilldown into VerticalResolution in schema excel_xsd Drilldown into HorizontalResolution in schema excel_xsd Drilldown into PaperSizeIndex in schema excel_xsd Drilldown into ValidPrinterInfo in schema excel_xsd Drilldown into PrintErrors in schema excel_xsd Drilldown into Scale in schema excel_xsd Drilldown into CommentsLayout in schema excel_xsd Drilldown into DraftQuality in schema excel_xsd Drilldown into NoPrinterInfo in schema excel_xsd Drilldown into BlackAndWhite in schema excel_xsd Drilldown into LeftToRight in schema excel_xsd Drilldown into FitHeight in schema excel_xsd Drilldown into FitWidth in schema excel_xsdXSD Diagram of PrintType in schema excel_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="PrintType">
    <xsd:annotation>
        <xsd:documentation>Contains workbook and worksheet print options.</xsd:documentation>
    </xsd:annotation>
    <xsd:all>
        <xsd:element name="FitWidth" type="xsd:int" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies the number of pages to spread the width of a print area across.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="FitHeight" type="xsd:int" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies the number of pages to spread the height of a print area across.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LeftToRight" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether a sort is done left to right by column or top to bottom by row, or whether a workbook or worksheet is printed left to right.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="BlackAndWhite" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether a workbook, worksheet, or embedded chart is printed in black and white.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NoPrinterInfo" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This element or attribute is not created or processed by Excel. It is designed to be used by external applications and components.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DraftQuality" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether a workbook or worksheet is printed in draft mode.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CommentsLayout" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether comments are printed and where they are printed.</xsd:documentation>
            </xsd:annotation>
            <xsd:simpleType>
                <xsd:restriction base="xsd:string">
                    <xsd:enumeration value="InPlace" />
                    <xsd:enumeration value="PrintNone" />
                    <xsd:enumeration value="SheetEnd" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:element>
        <xsd:element name="Scale" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies the percentage of reduction or enlargement for a printed worksheet or workbook.</xsd:documentation>
            </xsd:annotation>
            <xsd:simpleType>
                <xsd:restriction base="xsd:int">
                    <xsd:minExclusive value="10" />
                    <xsd:maxExclusive value="400" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:element>
        <xsd:element name="PrintErrors" type="xsd:string" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Specifies what to print in cells with errors.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ValidPrinterInfo" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Specifies whether printer properties are valid for the active printer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PaperSizeIndex" type="xsd:integer" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Contains an index to a paper size used by a printer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="HorizontalResolution" minOccurs="0" maxOccurs="1" type="xsd:integer">
            <xsd:annotation>
                <xsd:documentation>Specifies the horizontal resolution of a printer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VerticalResolution" minOccurs="0" maxOccurs="1" type="xsd:integer">
            <xsd:annotation>
                <xsd:documentation>Specifies the vertical resolution of a printer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Gridlines" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether gridlines are printed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NumberOfCopies" type="xsd:int" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies the number of copies to print.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RowColHeadings" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Specifies whether row and column headings are printed.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:all>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FitWidth x:FitWidth 0 (1)
FitHeight x:FitHeight 0 (1)
LeftToRight x:LeftToRight 0 (1)
BlackAndWhite x:BlackAndWhite 0 (1)
NoPrinterInfo x:NoPrinterInfo 0 (1)
DraftQuality x:DraftQuality 0 (1)
CommentsLayout x:CommentsLayout 0 (1)
Scale x:Scale 0 (1)
PrintErrors x:PrintErrors 0 1
ValidPrinterInfo x:ValidPrinterInfo 0 1
PaperSizeIndex x:PaperSizeIndex 0 (1)
HorizontalResolution x:HorizontalResolution 0 1
VerticalResolution x:VerticalResolution 0 1
Gridlines x:Gridlines 0 (1)
NumberOfCopies x:NumberOfCopies 0 (1)
RowColHeadings x:RowColHeadings 0 (1)
Collapse Derivation Tree:
Collapse References:
x:Print
