Definition Type: Element
Name: Rate
Namespace: http://schemas.microsoft.com/project
Containing Schema: mspdi.xsd
MinOccurs 0
MaxOccurs 25
Abstract
Documentation:
The definition of a time period, and the rates applicable for the resource during that period.

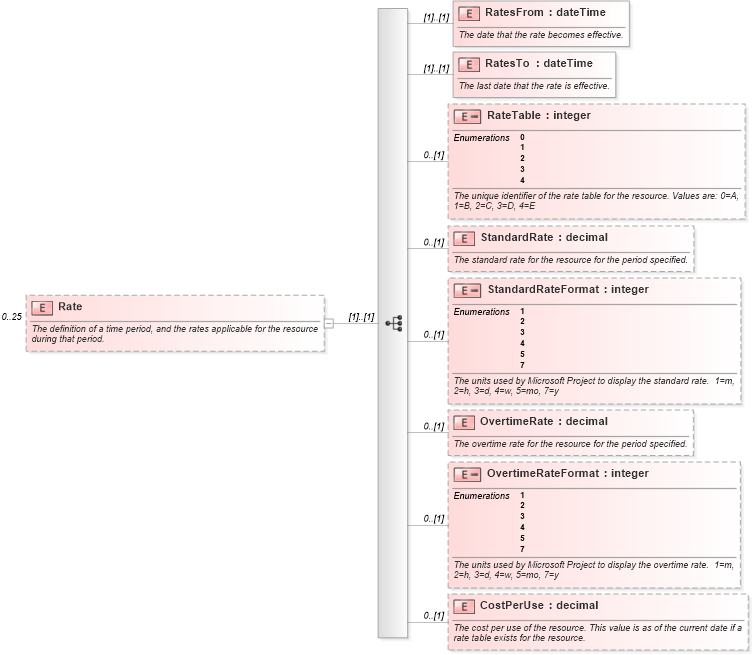

Collapse XSD Schema Diagram:
Drilldown into CostPerUse in schema mspdi_xsd Drilldown into OvertimeRateFormat in schema mspdi_xsd Drilldown into OvertimeRate in schema mspdi_xsd Drilldown into StandardRateFormat in schema mspdi_xsd Drilldown into StandardRate in schema mspdi_xsd Drilldown into RateTable in schema mspdi_xsd Drilldown into RatesTo in schema mspdi_xsd Drilldown into RatesFrom in schema mspdi_xsdXSD Diagram of Rate in schema mspdi_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="Rate" minOccurs="0" maxOccurs="25">
    <xsd:annotation>
        <xsd:documentation>The definition of a time period, and the rates applicable for the resource during that period.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="RatesFrom" type="xsd:dateTime">
                <xsd:annotation>
                    <xsd:documentation>The date that the rate becomes effective.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="RatesTo" type="xsd:dateTime">
                <xsd:annotation>
                    <xsd:documentation>The last date that the rate is effective.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="RateTable" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The unique identifier of the rate table for the resource. Values are: 0=A, 1=B, 2=C, 3=D, 4=E</xsd:documentation>
                </xsd:annotation>
                <xsd:simpleType>
                    <xsd:restriction base="xsd:integer">
                        <xsd:enumeration value="0" />
                        <xsd:enumeration value="1" />
                        <xsd:enumeration value="2" />
                        <xsd:enumeration value="3" />
                        <xsd:enumeration value="4" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
            <xsd:element name="StandardRate" type="xsd:decimal" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The standard rate for the resource for the period specified.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="StandardRateFormat" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The units used by Microsoft Project to display the standard rate.  1=m, 2=h, 3=d, 4=w, 5=mo, 7=y</xsd:documentation>
                </xsd:annotation>
                <xsd:simpleType>
                    <xsd:restriction base="xsd:integer">
                        <xsd:enumeration value="1" />
                        <xsd:enumeration value="2" />
                        <xsd:enumeration value="3" />
                        <xsd:enumeration value="4" />
                        <xsd:enumeration value="5" />
                        <xsd:enumeration value="7" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
            <xsd:element name="OvertimeRate" type="xsd:decimal" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The overtime rate for the resource for the period specified.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="OvertimeRateFormat" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The units used by Microsoft Project to display the overtime rate.  1=m, 2=h, 3=d, 4=w, 5=mo, 7=y</xsd:documentation>
                </xsd:annotation>
                <xsd:simpleType>
                    <xsd:restriction base="xsd:integer">
                        <xsd:enumeration value="1" />
                        <xsd:enumeration value="2" />
                        <xsd:enumeration value="3" />
                        <xsd:enumeration value="4" />
                        <xsd:enumeration value="5" />
                        <xsd:enumeration value="7" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
            <xsd:element name="CostPerUse" type="xsd:decimal" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The cost per use of the resource. This value is as of the current date if a rate table exists for the resource.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
RatesFrom nsC:RatesFrom (1) (1)
RatesTo nsC:RatesTo (1) (1)
RateTable nsC:RateTable 0 (1)
StandardRate nsC:StandardRate 0 (1)
StandardRateFormat nsC:StandardRateFormat 0 (1)
OvertimeRate nsC:OvertimeRate 0 (1)
OvertimeRateFormat nsC:OvertimeRateFormat 0 (1)
CostPerUse nsC:CostPerUse 0 (1)
