Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: Reviewer_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:IndexedRow_Type
Containing Schema: visio.xsd
Abstract

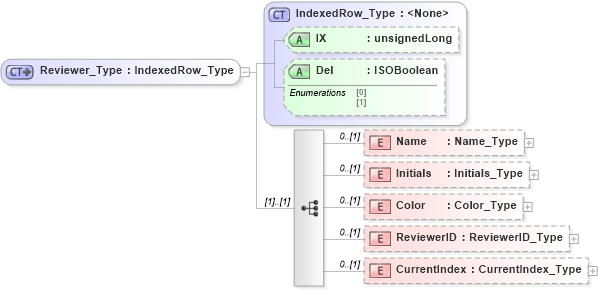

Collapse XSD Schema Diagram:
Drilldown into CurrentIndex in schema visio_xsd Drilldown into ReviewerID in schema visio_xsd Drilldown into Color in schema visio_xsd Drilldown into Initials in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into IX in schema visio_xsd Drilldown into IndexedRow_Type in schema visio_xsdXSD Diagram of Reviewer_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Reviewer_Type">
    <xsd:complexContent>
        <xsd:extension base="IndexedRow_Type">
            <xsd:sequence>
                <xsd:element name="Name" type="Name_Type" minOccurs="0" />
                <xsd:element name="Initials" type="Initials_Type" minOccurs="0" />
                <xsd:element name="Color" type="Color_Type" minOccurs="0" />
                <xsd:element name="ReviewerID" type="ReviewerID_Type" minOccurs="0" />
                <xsd:element name="CurrentIndex" type="CurrentIndex_Type" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Name nsA:Name 0 (1)
Initials nsA:Initials 0 (1)
Color nsA:Color 0 (1)
ReviewerID nsA:ReviewerID 0 (1)
CurrentIndex nsA:CurrentIndex 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
IX nsA:IX (Optional)
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Reviewer
