Definition Type: ComplexType
Name: RulerGrid_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Row_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

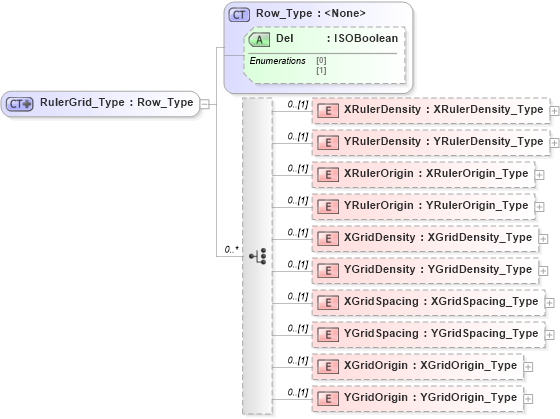

Drilldown into YGridOrigin in schema visio_xsd Drilldown into XGridOrigin in schema visio_xsd Drilldown into YGridSpacing in schema visio_xsd Drilldown into XGridSpacing in schema visio_xsd Drilldown into YGridDensity in schema visio_xsd Drilldown into XGridDensity in schema visio_xsd Drilldown into YRulerOrigin in schema visio_xsd Drilldown into XRulerOrigin in schema visio_xsd Drilldown into YRulerDensity in schema visio_xsd Drilldown into XRulerDensity in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsdXSD Diagram of RulerGrid_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="RulerGrid_Type">
    <xsd:complexContent>
        <xsd:extension base="Row_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="XRulerDensity" type="XRulerDensity_Type" minOccurs="0" />
                <xsd:element name="YRulerDensity" type="YRulerDensity_Type" minOccurs="0" />
                <xsd:element name="XRulerOrigin" type="XRulerOrigin_Type" minOccurs="0" />
                <xsd:element name="YRulerOrigin" type="YRulerOrigin_Type" minOccurs="0" />
                <xsd:element name="XGridDensity" type="XGridDensity_Type" minOccurs="0" />
                <xsd:element name="YGridDensity" type="YGridDensity_Type" minOccurs="0" />
                <xsd:element name="XGridSpacing" type="XGridSpacing_Type" minOccurs="0" />
                <xsd:element name="YGridSpacing" type="YGridSpacing_Type" minOccurs="0" />
                <xsd:element name="XGridOrigin" type="XGridOrigin_Type" minOccurs="0" />
                <xsd:element name="YGridOrigin" type="YGridOrigin_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
XRulerDensity nsA:XRulerDensity 0 (1)
YRulerDensity nsA:YRulerDensity 0 (1)
XRulerOrigin nsA:XRulerOrigin 0 (1)
YRulerOrigin nsA:YRulerOrigin 0 (1)
XGridDensity nsA:XGridDensity 0 (1)
YGridDensity nsA:YGridDensity 0 (1)
XGridSpacing nsA:XGridSpacing 0 (1)
YGridSpacing nsA:YGridSpacing 0 (1)
XGridOrigin nsA:XGridOrigin 0 (1)
YGridOrigin nsA:YGridOrigin 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:RulerGrid
