Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: shadowElt
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml.xsd
Abstract

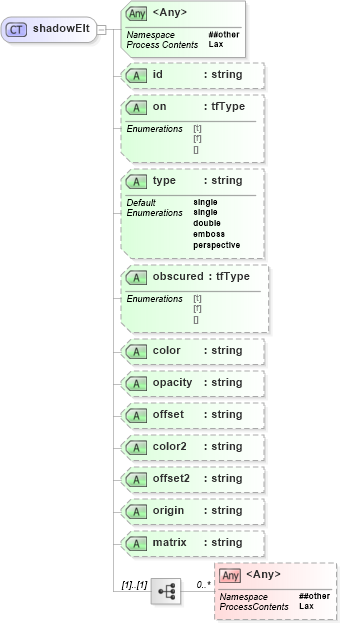

Collapse XSD Schema Diagram:
Drilldown into matrix in schema vml_xsd Drilldown into origin in schema vml_xsd Drilldown into offset2 in schema vml_xsd Drilldown into color2 in schema vml_xsd Drilldown into offset in schema vml_xsd Drilldown into opacity in schema vml_xsd Drilldown into color in schema vml_xsd Drilldown into obscured in schema vml_xsd Drilldown into type in schema vml_xsd Drilldown into on in schema vml_xsd Drilldown into id in schema vml_xsdXSD Diagram of shadowElt in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="shadowElt">
    <xsd:sequence>
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:string" use="optional" />
    <xsd:attribute name="on" type="tfType" use="optional" />
    <xsd:attribute name="type" use="optional" default="single">
        <xsd:simpleType>
            <xsd:restriction base="xsd:string">
                <xsd:enumeration value="single" />
                <xsd:enumeration value="double" />
                <xsd:enumeration value="emboss" />
                <xsd:enumeration value="perspective" />
            </xsd:restriction>
        </xsd:simpleType>
    </xsd:attribute>
    <xsd:attribute name="obscured" type="tfType" use="optional" />
    <xsd:attribute name="color" type="xsd:string" use="optional" />
    <xsd:attribute name="opacity" type="xsd:string" use="optional" />
    <xsd:attribute name="offset" type="xsd:string" use="optional" />
    <xsd:attribute name="color2" type="xsd:string" use="optional" />
    <xsd:attribute name="offset2" type="xsd:string" use="optional" />
    <xsd:attribute name="origin" type="xsd:string" use="optional" />
    <xsd:attribute name="matrix" type="xsd:string" use="optional" />
    <xsd:anyAttribute namespace="##other" processContents="lax" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##other' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
on v:on Optional
type v:type single Optional
obscured v:obscured Optional
color v:color Optional
opacity v:opacity Optional
offset v:offset Optional
color2 v:color2 Optional
offset2 v:offset2 Optional
origin v:origin Optional
matrix v:matrix Optional
<anyAttribute> Allowed namespace: '##other'
Collapse Derivation Tree:
Collapse References:
v:shadow
