Definition Type: Element
Name: shape
Namespace: urn:schemas-microsoft-com:vml
Type: v:shapeElt
Containing Schema: vml.xsd
Abstract

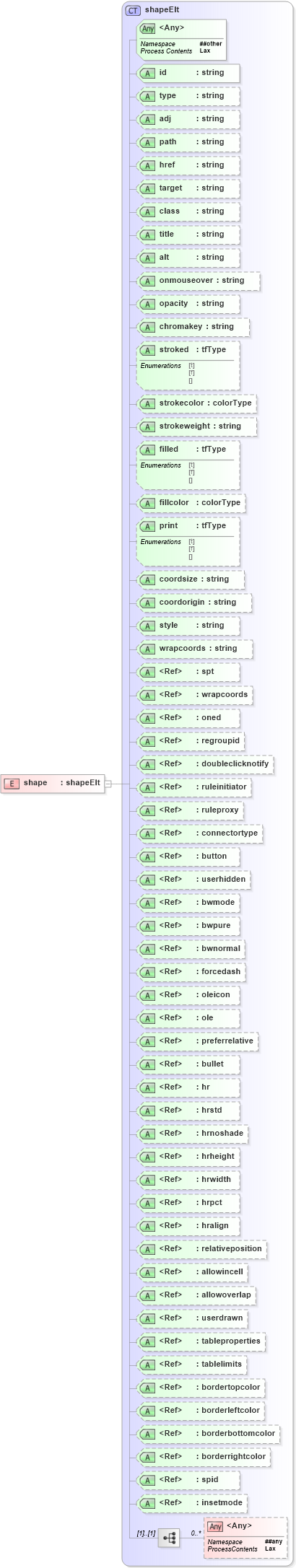

Collapse XSD Schema Diagram:
Drilldown into insetmode in schema office_xsd Drilldown into spid in schema office_xsd Drilldown into borderrightcolor in schema office_xsd Drilldown into borderbottomcolor in schema office_xsd Drilldown into borderleftcolor in schema office_xsd Drilldown into bordertopcolor in schema office_xsd Drilldown into tablelimits in schema office_xsd Drilldown into tableproperties in schema office_xsd Drilldown into userdrawn in schema office_xsd Drilldown into allowoverlap in schema office_xsd Drilldown into allowincell in schema office_xsd Drilldown into relativeposition in schema office_xsd Drilldown into hralign in schema office_xsd Drilldown into hrpct in schema office_xsd Drilldown into hrwidth in schema office_xsd Drilldown into hrheight in schema office_xsd Drilldown into hrnoshade in schema office_xsd Drilldown into hrstd in schema office_xsd Drilldown into hr in schema office_xsd Drilldown into bullet in schema office_xsd Drilldown into preferrelative in schema office_xsd Drilldown into ole in schema office_xsd Drilldown into oleicon in schema office_xsd Drilldown into forcedash in schema office_xsd Drilldown into bwnormal in schema office_xsd Drilldown into bwpure in schema office_xsd Drilldown into bwmode in schema office_xsd Drilldown into userhidden in schema office_xsd Drilldown into button in schema office_xsd Drilldown into connectortype in schema office_xsd Drilldown into ruleproxy in schema office_xsd Drilldown into ruleinitiator in schema office_xsd Drilldown into doubleclicknotify in schema office_xsd Drilldown into regroupid in schema office_xsd Drilldown into oned in schema office_xsd Drilldown into wrapcoords in schema office_xsd Drilldown into spt in schema office_xsd Drilldown into wrapcoords in schema vml_xsd Drilldown into style in schema vml_xsd Drilldown into coordorigin in schema vml_xsd Drilldown into coordsize in schema vml_xsd Drilldown into print in schema vml_xsd Drilldown into fillcolor in schema vml_xsd Drilldown into filled in schema vml_xsd Drilldown into strokeweight in schema vml_xsd Drilldown into strokecolor in schema vml_xsd Drilldown into stroked in schema vml_xsd Drilldown into chromakey in schema vml_xsd Drilldown into opacity in schema vml_xsd Drilldown into onmouseover in schema vml_xsd Drilldown into alt in schema vml_xsd Drilldown into title in schema vml_xsd Drilldown into class in schema vml_xsd Drilldown into target in schema vml_xsd Drilldown into href in schema vml_xsd Drilldown into path in schema vml_xsd Drilldown into adj in schema vml_xsd Drilldown into type in schema vml_xsd Drilldown into id in schema vml_xsd Drilldown into shapeElt in schema vml_xsdXSD Diagram of shape in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="shape" type="shapeElt" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Required
type v:type Optional
adj v:adj Optional
path v:path Optional
href v:href Optional
target v:target Optional
class v:class Optional
title v:title Optional
alt v:alt Optional
onmouseover v:onmouseover Optional
opacity v:opacity Optional
chromakey v:chromakey Optional
stroked v:stroked Optional
strokecolor v:strokecolor Optional
strokeweight v:strokeweight Optional
filled v:filled Optional
fillcolor v:fillcolor Optional
print v:print Optional
coordsize v:coordsize Optional
coordorigin v:coordorigin Optional
style v:style Optional
wrapcoords v:wrapcoords Optional
spt o:spt Optional
wrapcoords o:wrapcoords Optional
oned o:oned Optional
regroupid o:regroupid Optional
doubleclicknotify o:doubleclicknotify Optional
ruleinitiator o:ruleinitiator Optional
ruleproxy o:ruleproxy Optional
connectortype o:connectortype Optional
button o:button Optional
userhidden o:userhidden Optional
bwmode o:bwmode Optional
bwpure o:bwpure Optional
bwnormal o:bwnormal Optional
forcedash o:forcedash Optional
oleicon o:oleicon Optional
ole o:ole Optional
preferrelative o:preferrelative Optional
bullet o:bullet Optional
hr o:hr Optional
hrstd o:hrstd Optional
hrnoshade o:hrnoshade Optional
hrheight o:hrheight Optional
hrwidth o:hrwidth Optional
hrpct o:hrpct Optional
hralign o:hralign Optional
relativeposition o:relativeposition Optional
allowincell o:allowincell Optional
allowoverlap o:allowoverlap Optional
userdrawn o:userdrawn Optional
tableproperties o:tableproperties Optional
tablelimits o:tablelimits Optional
bordertopcolor o:bordertopcolor Optional
borderleftcolor o:borderleftcolor Optional
borderbottomcolor o:borderbottomcolor Optional
borderrightcolor o:borderrightcolor Optional
spid o:spid Optional
insetmode o:insetmode Optional
<anyAttribute> Allowed namespace: '##other'
