Definition Type: ComplexType
Name: shapetypeElt
Namespace: urn:schemas-microsoft-com:vml
Containing Schema: vml.xsd
Abstract

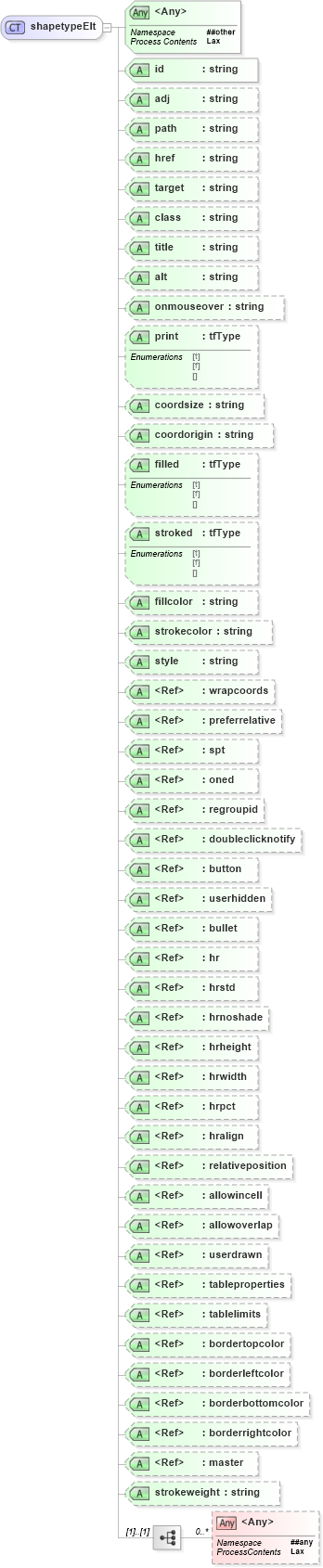

Collapse XSD Schema Diagram:
Drilldown into strokeweight in schema vml_xsd Drilldown into master in schema office_xsd Drilldown into borderrightcolor in schema office_xsd Drilldown into borderbottomcolor in schema office_xsd Drilldown into borderleftcolor in schema office_xsd Drilldown into bordertopcolor in schema office_xsd Drilldown into tablelimits in schema office_xsd Drilldown into tableproperties in schema office_xsd Drilldown into userdrawn in schema office_xsd Drilldown into allowoverlap in schema office_xsd Drilldown into allowincell in schema office_xsd Drilldown into relativeposition in schema office_xsd Drilldown into hralign in schema office_xsd Drilldown into hrpct in schema office_xsd Drilldown into hrwidth in schema office_xsd Drilldown into hrheight in schema office_xsd Drilldown into hrnoshade in schema office_xsd Drilldown into hrstd in schema office_xsd Drilldown into hr in schema office_xsd Drilldown into bullet in schema office_xsd Drilldown into userhidden in schema office_xsd Drilldown into button in schema office_xsd Drilldown into doubleclicknotify in schema office_xsd Drilldown into regroupid in schema office_xsd Drilldown into oned in schema office_xsd Drilldown into spt in schema office_xsd Drilldown into preferrelative in schema office_xsd Drilldown into wrapcoords in schema office_xsd Drilldown into style in schema vml_xsd Drilldown into strokecolor in schema vml_xsd Drilldown into fillcolor in schema vml_xsd Drilldown into stroked in schema vml_xsd Drilldown into filled in schema vml_xsd Drilldown into coordorigin in schema vml_xsd Drilldown into coordsize in schema vml_xsd Drilldown into print in schema vml_xsd Drilldown into onmouseover in schema vml_xsd Drilldown into alt in schema vml_xsd Drilldown into title in schema vml_xsd Drilldown into class in schema vml_xsd Drilldown into target in schema vml_xsd Drilldown into href in schema vml_xsd Drilldown into path in schema vml_xsd Drilldown into adj in schema vml_xsd Drilldown into id in schema vml_xsdXSD Diagram of shapetypeElt in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="shapetypeElt">
    <xsd:sequence>
        <xsd:any processContents="lax" namespace="##any" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="id" type="xsd:string" use="required" />
    <xsd:attribute name="adj" type="xsd:string" use="optional" />
    <xsd:attribute name="path" type="xsd:string" use="optional" />
    <xsd:attribute name="href" type="xsd:string" use="optional" />
    <xsd:attribute name="target" type="xsd:string" use="optional" />
    <xsd:attribute name="class" type="xsd:string" use="optional" />
    <xsd:attribute name="title" type="xsd:string" use="optional" />
    <xsd:attribute name="alt" type="xsd:string" use="optional" />
    <xsd:attribute name="onmouseover" type="xsd:string" use="optional" />
    <xsd:attribute name="print" type="tfType" use="optional" />
    <xsd:attribute name="coordsize" type="xsd:string" use="optional" />
    <xsd:attribute name="coordorigin" type="xsd:string" use="optional" />
    <xsd:attribute name="filled" type="tfType" use="optional" />
    <xsd:attribute name="stroked" type="tfType" use="optional" />
    <xsd:attribute name="fillcolor" type="xsd:string" use="optional" />
    <xsd:attribute name="strokecolor" type="xsd:string" use="optional" />
    <xsd:attribute name="style" type="xsd:string" use="optional" />
    <xsd:attribute ref="o:wrapcoords" use="optional" />
    <xsd:attribute ref="o:preferrelative" use="optional" />
    <xsd:attribute ref="o:spt" use="optional" />
    <xsd:attribute ref="o:oned" use="optional" />
    <xsd:attribute ref="o:regroupid" use="optional" />
    <xsd:attribute ref="o:doubleclicknotify" use="optional" />
    <xsd:attribute ref="o:button" use="optional" />
    <xsd:attribute ref="o:userhidden" use="optional" />
    <xsd:attribute ref="o:bullet" use="optional" />
    <xsd:attribute ref="o:hr" use="optional" />
    <xsd:attribute ref="o:hrstd" use="optional" />
    <xsd:attribute ref="o:hrnoshade" use="optional" />
    <xsd:attribute ref="o:hrheight" use="optional" />
    <xsd:attribute ref="o:hrwidth" use="optional" />
    <xsd:attribute ref="o:hrpct" use="optional" />
    <xsd:attribute ref="o:hralign" use="optional" />
    <xsd:attribute ref="o:relativeposition" use="optional" />
    <xsd:attribute ref="o:allowincell" use="optional" />
    <xsd:attribute ref="o:allowoverlap" use="optional" />
    <xsd:attribute ref="o:userdrawn" use="optional" />
    <xsd:attribute ref="o:tableproperties" use="optional" />
    <xsd:attribute ref="o:tablelimits" use="optional" />
    <xsd:attribute ref="o:bordertopcolor" use="optional" />
    <xsd:attribute ref="o:borderleftcolor" use="optional" />
    <xsd:attribute ref="o:borderbottomcolor" use="optional" />
    <xsd:attribute ref="o:borderrightcolor" use="optional" />
    <xsd:attribute ref="o:master" use="optional" />
    <xsd:attribute name="strokeweight" type="xsd:string" use="optional" />
    <xsd:anyAttribute namespace="##other" processContents="lax" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> Allowed namespace: '##any' 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Required
adj v:adj Optional
path v:path Optional
href v:href Optional
target v:target Optional
class v:class Optional
title v:title Optional
alt v:alt Optional
onmouseover v:onmouseover Optional
print v:print Optional
coordsize v:coordsize Optional
coordorigin v:coordorigin Optional
filled v:filled Optional
stroked v:stroked Optional
fillcolor v:fillcolor Optional
strokecolor v:strokecolor Optional
style v:style Optional
wrapcoords o:wrapcoords Optional
preferrelative o:preferrelative Optional
spt o:spt Optional
oned o:oned Optional
regroupid o:regroupid Optional
doubleclicknotify o:doubleclicknotify Optional
button o:button Optional
userhidden o:userhidden Optional
bullet o:bullet Optional
hr o:hr Optional
hrstd o:hrstd Optional
hrnoshade o:hrnoshade Optional
hrheight o:hrheight Optional
hrwidth o:hrwidth Optional
hrpct o:hrpct Optional
hralign o:hralign Optional
relativeposition o:relativeposition Optional
allowincell o:allowincell Optional
allowoverlap o:allowoverlap Optional
userdrawn o:userdrawn Optional
tableproperties o:tableproperties Optional
tablelimits o:tablelimits Optional
bordertopcolor o:bordertopcolor Optional
borderleftcolor o:borderleftcolor Optional
borderbottomcolor o:borderbottomcolor Optional
borderrightcolor o:borderrightcolor Optional
master o:master Optional
strokeweight v:strokeweight Optional
<anyAttribute> Allowed namespace: '##other'
