Definition Type: Element
Name: signedDataBlock
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

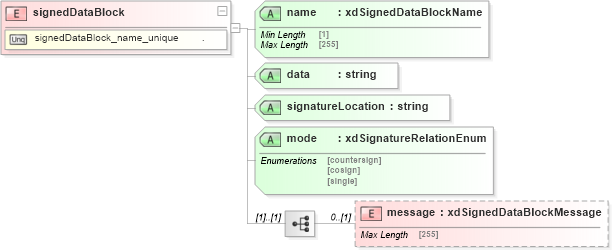

Collapse XSD Schema Diagram:
Drilldown into message in schema sd_xsd Drilldown into mode in schema sd_xsd Drilldown into signatureLocation in schema sd_xsd Drilldown into data in schema sd_xsd Drilldown into name in schema sd_xsdXSD Diagram of signedDataBlock in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="signedDataBlock">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="message" type="xsf:xdSignedDataBlockMessage" minOccurs="0" />
        </xsd:sequence>
        <xsd:attribute name="name" type="xsf:xdSignedDataBlockName" use="required" />
        <xsd:attribute name="data" type="xsd:string" use="required" />
        <xsd:attribute name="signatureLocation" type="xsd:string" use="required" />
        <xsd:attribute name="mode" type="xsf:xdSignatureRelationEnum" use="required" />
    </xsd:complexType>
    <xsd:unique name="signedDataBlock_name_unique">
        <xsd:selector xpath="." />
        <xsd:field xpath="@name" />
    </xsd:unique>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
message xsf:message 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name xsf:name Required
data xsf:data Required
signatureLocation xsf:signatureLocation Required
mode xsf:mode Required
