Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: SmartTagDef
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:SmartTagDef_Type
Containing Schema: visio.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

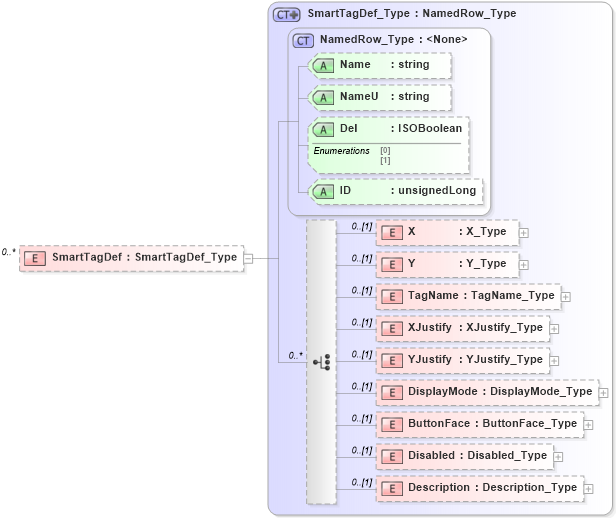

Collapse XSD Schema Diagram:
Drilldown into Description in schema visio_xsd Drilldown into Disabled in schema visio_xsd Drilldown into ButtonFace in schema visio_xsd Drilldown into DisplayMode in schema visio_xsd Drilldown into YJustify in schema visio_xsd Drilldown into XJustify in schema visio_xsd Drilldown into TagName in schema visio_xsd Drilldown into Y in schema visio_xsd Drilldown into X in schema visio_xsd Drilldown into ID in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into NameU in schema visio_xsd Drilldown into Name in schema visio_xsd Drilldown into NamedRow_Type in schema visio_xsd Drilldown into SmartTagDef_Type in schema visio_xsdXSD Diagram of SmartTagDef in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="SmartTagDef" type="SmartTagDef_Type" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
X nsA:X 0 (1)
Y nsA:Y 0 (1)
TagName nsA:TagName 0 (1)
XJustify nsA:XJustify 0 (1)
YJustify nsA:YJustify 0 (1)
DisplayMode nsA:DisplayMode 0 (1)
ButtonFace nsA:ButtonFace 0 (1)
Disabled nsA:Disabled 0 (1)
Description nsA:Description 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Name nsA:Name (Optional)
NameU nsA:NameU (Optional)
Del nsA:Del (Optional)
ID nsA:ID (Optional)
Collapse Derivation Tree:
