Definition Type: Element
Name: stroke
Namespace: urn:schemas-microsoft-com:vml
Type: v:strokeElt
Containing Schema: vml.xsd
Abstract
Collapse XSD Schema Diagram:

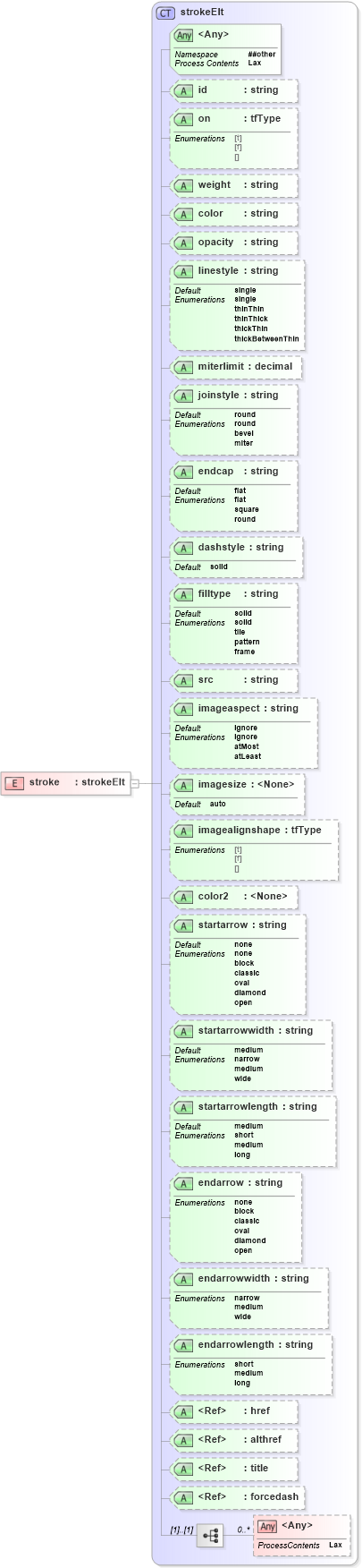

Drilldown into forcedash in schema office_xsd Drilldown into title in schema office_xsd Drilldown into althref in schema office_xsd Drilldown into href in schema office_xsd Drilldown into endarrowlength in schema vml_xsd Drilldown into endarrowwidth in schema vml_xsd Drilldown into endarrow in schema vml_xsd Drilldown into startarrowlength in schema vml_xsd Drilldown into startarrowwidth in schema vml_xsd Drilldown into startarrow in schema vml_xsd Drilldown into color2 in schema vml_xsd Drilldown into imagealignshape in schema vml_xsd Drilldown into imagesize in schema vml_xsd Drilldown into imageaspect in schema vml_xsd Drilldown into src in schema vml_xsd Drilldown into filltype in schema vml_xsd Drilldown into dashstyle in schema vml_xsd Drilldown into endcap in schema vml_xsd Drilldown into joinstyle in schema vml_xsd Drilldown into miterlimit in schema vml_xsd Drilldown into linestyle in schema vml_xsd Drilldown into opacity in schema vml_xsd Drilldown into color in schema vml_xsd Drilldown into weight in schema vml_xsd Drilldown into on in schema vml_xsd Drilldown into id in schema vml_xsd Drilldown into strokeElt in schema vml_xsdXSD Diagram of stroke in schema vml_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="stroke" type="strokeElt" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
<xs:any> 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id v:id Optional
on v:on Optional
weight v:weight Optional
color v:color Optional
opacity v:opacity Optional
linestyle v:linestyle single Optional
miterlimit v:miterlimit Optional
joinstyle v:joinstyle round Optional
endcap v:endcap flat Optional
dashstyle v:dashstyle solid Optional
filltype v:filltype solid Optional
src v:src Optional
imageaspect v:imageaspect ignore Optional
imagesize v:imagesize auto Optional
imagealignshape v:imagealignshape Optional
color2 v:color2 Optional
startarrow v:startarrow none Optional
startarrowwidth v:startarrowwidth medium Optional
startarrowlength v:startarrowlength medium Optional
endarrow v:endarrow Optional
endarrowwidth v:endarrowwidth Optional
endarrowlength v:endarrowlength Optional
href o:href Optional
althref o:althref Optional
title o:title Optional
forcedash o:forcedash Optional
<anyAttribute> Allowed namespace: '##other'
