Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: tableWidthProperty
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines a property that uses a table-width value.

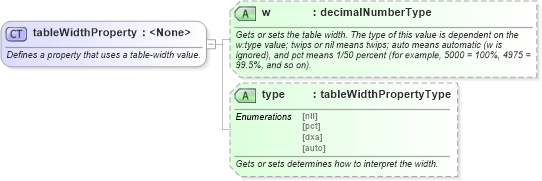

Collapse XSD Schema Diagram:
Drilldown into type in schema wordnet_xsd Drilldown into w in schema wordnet_xsdXSD Diagram of tableWidthProperty in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="tableWidthProperty">
    <xsd:annotation>
        <xsd:documentation>Defines a property that uses a table-width value.</xsd:documentation>
    </xsd:annotation>
    <xsd:attribute name="w" type="decimalNumberType">
        <xsd:annotation>
            <xsd:documentation>Gets or sets the table width. The type of this value is dependent on the w:type value; twips or nil means twips; auto means automatic (w is ignored), and pct means 1/50 percent (for example, 5000 = 100%, 4975 = 99.5%, and so on).</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="type" type="tableWidthPropertyType">
        <xsd:annotation>
            <xsd:documentation>Gets or sets determines how to interpret the width.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Attributes:
Name Type Default Value Use
w W:w (Optional)
type W:type (Optional)
Collapse Derivation Tree:
Collapse References:
W:bottom, W:bottom, W:left, W:left, W:right, W:right, W:tblCellSpacing, W:tblCellSpacing, W:tblCellSpacing, W:tblInd, W:tblInd, W:tblW, W:tblW, W:tcW, W:top, W:top, W:wAfter, W:wBefore
