Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: tcMarElt
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Containing Schema: wordnet.xsd
Abstract
Documentation:
Defines the table cell margins.

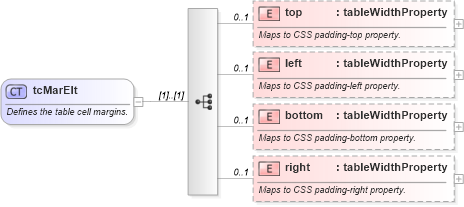

Collapse XSD Schema Diagram:
Drilldown into right in schema wordnet_xsd Drilldown into bottom in schema wordnet_xsd Drilldown into left in schema wordnet_xsd Drilldown into top in schema wordnet_xsdXSD Diagram of tcMarElt in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="tcMarElt">
    <xsd:annotation>
        <xsd:documentation>Defines the table cell margins.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="top" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Maps to CSS padding-top property.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="left" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Maps to CSS padding-left property.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="bottom" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Maps to CSS padding-bottom property.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="right" type="tableWidthProperty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Maps to CSS padding-right property.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
top W:top 0 1
left W:left 0 1
bottom W:bottom 0 1
right W:right 0 1
Collapse Derivation Tree:
Collapse References:
W:tcMar
