<xsd:complexType name="TimephasedDataType">
<xsd:annotation>
<xsd:documentation>The definition of the time phased data block.</xsd:documentation>
</xsd:annotation>
<xsd:sequence>
<xsd:element name="Type" minOccurs="0">
<xsd:annotation>
<xsd:documentation>
The type of task timephased data. Values are:
1=Assignment Remaining Work
2=Assignment Actual Work
3=Assignment Actual Overtime Work
4=Assignment Baseline Work
5=Assignment Baseline Cost
6=Assignment Actual Cost
7=Resource Baseline Work
8=Resource Baseline Cost
9=Task Baseline Work
10=Task Baseline Cost
11=Task Percent Complete
16=Assignment Baseline 1 Work
17=Assignment Baseline 1 Cost
18=Task Baseline 1 Work
19=Task Baseline 1 Cost
20=Resource Baseline 1 Work
21=Resource Baseline 1 Cost
22=Assignment Baseline 2 Work
23=Assignment Baseline 2 Cost
24=Task Baseline 2 Work
25=Task Baseline 2 Cost
26=Resource Baseline 2 Work
27=Resource Baseline 2 Cost
28=Assignment Baseline 3 Work
29=Assignment Baseline 3 Cost
30=Task Baseline 3 Work
31=Task Baseline 3 Cost
32=Resource Baseline 3 Work
33=Resource Baseline 3 Cost
34=Assignment Baseline 4 Work
35=Assignment Baseline 4 Cost
36=Task Baseline 4 Work
37=Task Baseline 4 Cost
38=Resource Baseline 4 Work
39=Resource Baseline 4 Cost
40=Assignment Baseline 5 Work
41=Assignment Baseline 5 Cost
42=Task Baseline 5 Work
43=Task Baseline 5 Cost
44=Resource Baseline 5 Work
45=Resource Baseline 5 Cost
46=Assignment Baseline 6 Work
47=Assignment Baseline 6 Cost
48=Task Baseline 6 Work
49=Task Baseline 6 Cost
50=Resource Baseline 6 Work
51=Resource Baseline 6 Cost
52=Assignment Baseline 7 Work
53=Assignment Baseline 7 Cost
54=Task Baseline 7 Work
55=Task Baseline 7 Cost
56=Resource Baseline 7 Work
57=Resource Baseline 7 Cost
58=Assignment Baseline 8 Work
59=Assignment Baseline 8 Cost
60=Task Baseline 8 Work
61=Task Baseline 8 Cost
62=Resource Baseline 8 Work
63=Resource Baseline 8 Cost
64=Assignment Baseline 9 Work
65=Assignment Baseline 9 Cost
66=Task Baseline 9 Work
67=Task Baseline 9 Cost
68=Resource Baseline 9 Work
69=Resource Baseline 9 Cost
70=Assignment Baseline 10 Work
71=Assignment Baseline 10 Cost
72=Task Baseline 10 Work
73=Task Baseline 10 Cost
74=Resource Baseline 10 Work
75=Resource Baseline 10 Cost
76=Physical Percent Complete
</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:integer">
<xsd:enumeration value="1" />
<xsd:enumeration value="2" />
<xsd:enumeration value="3" />
<xsd:enumeration value="4" />
<xsd:enumeration value="5" />
<xsd:enumeration value="6" />
<xsd:enumeration value="7" />
<xsd:enumeration value="8" />
<xsd:enumeration value="9" />
<xsd:enumeration value="10" />
<xsd:enumeration value="11" />
<xsd:enumeration value="16" />
<xsd:enumeration value="17" />
<xsd:enumeration value="18" />
<xsd:enumeration value="19" />
<xsd:enumeration value="20" />
<xsd:enumeration value="21" />
<xsd:enumeration value="22" />
<xsd:enumeration value="23" />
<xsd:enumeration value="24" />
<xsd:enumeration value="25" />
<xsd:enumeration value="26" />
<xsd:enumeration value="27" />
<xsd:enumeration value="28" />
<xsd:enumeration value="29" />
<xsd:enumeration value="30" />
<xsd:enumeration value="31" />
<xsd:enumeration value="32" />
<xsd:enumeration value="33" />
<xsd:enumeration value="34" />
<xsd:enumeration value="35" />
<xsd:enumeration value="36" />
<xsd:enumeration value="37" />
<xsd:enumeration value="38" />
<xsd:enumeration value="39" />
<xsd:enumeration value="40" />
<xsd:enumeration value="41" />
<xsd:enumeration value="42" />
<xsd:enumeration value="43" />
<xsd:enumeration value="44" />
<xsd:enumeration value="45" />
<xsd:enumeration value="46" />
<xsd:enumeration value="47" />
<xsd:enumeration value="48" />
<xsd:enumeration value="49" />
<xsd:enumeration value="50" />
<xsd:enumeration value="51" />
<xsd:enumeration value="52" />
<xsd:enumeration value="53" />
<xsd:enumeration value="54" />
<xsd:enumeration value="55" />
<xsd:enumeration value="56" />
<xsd:enumeration value="57" />
<xsd:enumeration value="58" />
<xsd:enumeration value="59" />
<xsd:enumeration value="60" />
<xsd:enumeration value="61" />
<xsd:enumeration value="62" />
<xsd:enumeration value="63" />
<xsd:enumeration value="64" />
<xsd:enumeration value="65" />
<xsd:enumeration value="66" />
<xsd:enumeration value="67" />
<xsd:enumeration value="68" />
<xsd:enumeration value="69" />
<xsd:enumeration value="70" />
<xsd:enumeration value="71" />
<xsd:enumeration value="72" />
<xsd:enumeration value="73" />
<xsd:enumeration value="74" />
<xsd:enumeration value="75" />
<xsd:enumeration value="76" />
</xsd:restriction>
</xsd:simpleType>
</xsd:element>
<xsd:element name="UID" type="xsd:integer">
<xsd:annotation>
<xsd:documentation>The unique identifier of the timephased data record.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Start" type="xsd:dateTime" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The start date of the timephased data period.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Finish" type="xsd:dateTime" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The finish date of the timephased data period.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Unit" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The time unit of the timephased data period. Values are: 0=m, 1=h, 2=d, 3=w, 5=mo, 8=y</xsd:documentation>
</xsd:annotation>
<xsd:simpleType>
<xsd:restriction base="xsd:integer">
<xsd:enumeration value="0" />
<xsd:enumeration value="1" />
<xsd:enumeration value="2" />
<xsd:enumeration value="3" />
<xsd:enumeration value="5" />
<xsd:enumeration value="8" />
</xsd:restriction>
</xsd:simpleType>
</xsd:element>
<xsd:element name="Value" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The value per unit of time for the timephased data period.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

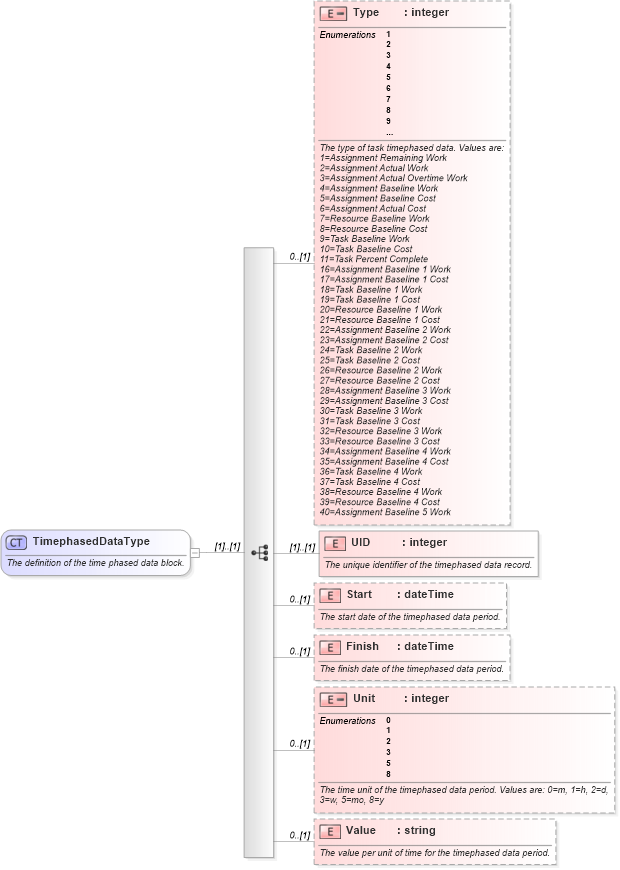

XSD Schema Diagram:
