Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: vertAlign
Namespace: http://schemas.microsoft.com/office/word/2003/wordml
Type: W:verticalAlignRunProperty
Containing Schema: wordnet.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Adjusts the vertical position of the text relative to the baseline and changes the font size if possible. To raise or lower the text without reducing the font size, use the position element.
Collapse XSD Schema Diagram:

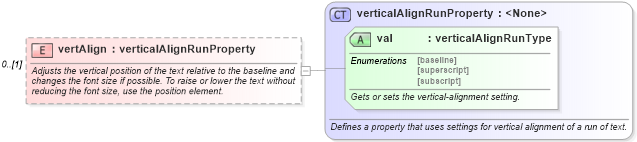

Drilldown into val in schema wordnet_xsd Drilldown into verticalAlignRunProperty in schema wordnet_xsdXSD Diagram of vertAlign in schema wordnet_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="vertAlign" type="verticalAlignRunProperty" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Adjusts the vertical position of the text relative to the baseline and changes the font size if possible. To raise or lower the text without reducing the font size, use the position element.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Attributes:
Name Type Default Value Use
val W:val Required
Collapse Derivation Tree:
