Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: WBSMasks
Namespace: http://schemas.microsoft.com/project
Containing Schema: mspdi.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
The table of entries that define the outline code mask.

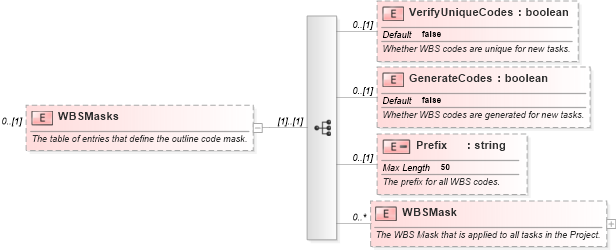

Collapse XSD Schema Diagram:
Drilldown into WBSMask in schema mspdi_xsd Drilldown into Prefix in schema mspdi_xsd Drilldown into GenerateCodes in schema mspdi_xsd Drilldown into VerifyUniqueCodes in schema mspdi_xsdXSD Diagram of WBSMasks in schema mspdi_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="WBSMasks" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>The table of entries that define the outline code mask.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="VerifyUniqueCodes" type="xsd:boolean" default="false" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Whether WBS codes are unique for new tasks.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="GenerateCodes" type="xsd:boolean" default="false" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Whether WBS codes are generated for new tasks.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="Prefix" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The prefix for all WBS codes.</xsd:documentation>
                </xsd:annotation>
                <xsd:simpleType>
                    <xsd:restriction base="xsd:string">
                        <xsd:maxLength value="50" />
                    </xsd:restriction>
                </xsd:simpleType>
            </xsd:element>
            <xsd:element name="WBSMask" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>The WBS Mask that is applied to all tasks in the Project.</xsd:documentation>
                </xsd:annotation>
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="Level" type="xsd:integer">
                            <xsd:annotation>
                                <xsd:documentation>The level of the mask.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                        <xsd:element name="Type">
                            <xsd:annotation>
                                <xsd:documentation>The type of the node value.  The values are: 0=Numbers, 1=Uppercase Letters, 2=Lowercase Letters, 3=Characters.</xsd:documentation>
                            </xsd:annotation>
                            <xsd:simpleType>
                                <xsd:restriction base="xsd:integer">
                                    <xsd:enumeration value="0" />
                                    <xsd:enumeration value="1" />
                                    <xsd:enumeration value="2" />
                                    <xsd:enumeration value="3" />
                                </xsd:restriction>
                            </xsd:simpleType>
                        </xsd:element>
                        <xsd:element name="Length" type="xsd:string">
                            <xsd:annotation>
                                <xsd:documentation>The maximum length in characters.  This element is omitted when length is "any".</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                        <xsd:element name="Separator" type="xsd:string">
                            <xsd:annotation>
                                <xsd:documentation>The separator character of the node.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
VerifyUniqueCodes nsC:VerifyUniqueCodes 0 (1)
GenerateCodes nsC:GenerateCodes 0 (1)
Prefix nsC:Prefix 0 (1)
WBSMask nsC:WBSMask 0 unbounded
