Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: ComplexType
Name: Window_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Containing Schema: visio.xsd
Abstract

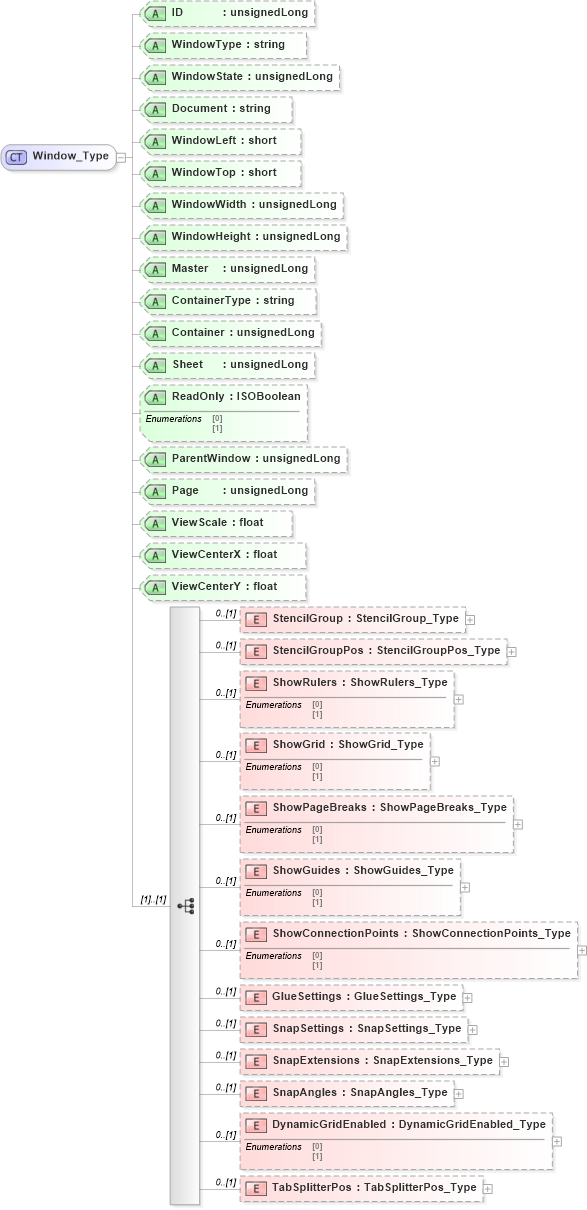

Collapse XSD Schema Diagram:
Drilldown into TabSplitterPos in schema visio_xsd Drilldown into DynamicGridEnabled in schema visio_xsd Drilldown into SnapAngles in schema visio_xsd Drilldown into SnapExtensions in schema visio_xsd Drilldown into SnapSettings in schema visio_xsd Drilldown into GlueSettings in schema visio_xsd Drilldown into ShowConnectionPoints in schema visio_xsd Drilldown into ShowGuides in schema visio_xsd Drilldown into ShowPageBreaks in schema visio_xsd Drilldown into ShowGrid in schema visio_xsd Drilldown into ShowRulers in schema visio_xsd Drilldown into StencilGroupPos in schema visio_xsd Drilldown into StencilGroup in schema visio_xsd Drilldown into ViewCenterY in schema visio_xsd Drilldown into ViewCenterX in schema visio_xsd Drilldown into ViewScale in schema visio_xsd Drilldown into Page in schema visio_xsd Drilldown into ParentWindow in schema visio_xsd Drilldown into ReadOnly in schema visio_xsd Drilldown into Sheet in schema visio_xsd Drilldown into Container in schema visio_xsd Drilldown into ContainerType in schema visio_xsd Drilldown into Master in schema visio_xsd Drilldown into WindowHeight in schema visio_xsd Drilldown into WindowWidth in schema visio_xsd Drilldown into WindowTop in schema visio_xsd Drilldown into WindowLeft in schema visio_xsd Drilldown into Document in schema visio_xsd Drilldown into WindowState in schema visio_xsd Drilldown into WindowType in schema visio_xsd Drilldown into ID in schema visio_xsdXSD Diagram of Window_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="Window_Type">
    <xsd:sequence>
        <xsd:element name="StencilGroup" type="StencilGroup_Type" minOccurs="0" />
        <xsd:element name="StencilGroupPos" type="StencilGroupPos_Type" minOccurs="0" />
        <xsd:element name="ShowRulers" type="ShowRulers_Type" minOccurs="0" />
        <xsd:element name="ShowGrid" type="ShowGrid_Type" minOccurs="0" />
        <xsd:element name="ShowPageBreaks" type="ShowPageBreaks_Type" minOccurs="0" />
        <xsd:element name="ShowGuides" type="ShowGuides_Type" minOccurs="0" />
        <xsd:element name="ShowConnectionPoints" type="ShowConnectionPoints_Type" minOccurs="0" />
        <xsd:element name="GlueSettings" type="GlueSettings_Type" minOccurs="0" />
        <xsd:element name="SnapSettings" type="SnapSettings_Type" minOccurs="0" />
        <xsd:element name="SnapExtensions" type="SnapExtensions_Type" minOccurs="0" />
        <xsd:element name="SnapAngles" type="SnapAngles_Type" minOccurs="0" />
        <xsd:element name="DynamicGridEnabled" type="DynamicGridEnabled_Type" minOccurs="0" />
        <xsd:element name="TabSplitterPos" type="TabSplitterPos_Type" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="ID" type="xsd:unsignedLong" />
    <xsd:attribute name="WindowType" type="xsd:string" />
    <xsd:attribute name="WindowState" type="xsd:unsignedLong" />
    <xsd:attribute name="Document" type="xsd:string" />
    <xsd:attribute name="WindowLeft" type="xsd:short" />
    <xsd:attribute name="WindowTop" type="xsd:short" />
    <xsd:attribute name="WindowWidth" type="xsd:unsignedLong" />
    <xsd:attribute name="WindowHeight" type="xsd:unsignedLong" />
    <xsd:attribute name="Master" type="xsd:unsignedLong" />
    <xsd:attribute name="ContainerType" type="xsd:string" />
    <xsd:attribute name="Container" type="xsd:unsignedLong" />
    <xsd:attribute name="Sheet" type="xsd:unsignedLong" />
    <xsd:attribute name="ReadOnly" type="ISOBoolean" />
    <xsd:attribute name="ParentWindow" type="xsd:unsignedLong" />
    <xsd:attribute name="Page" type="xsd:unsignedLong" />
    <xsd:attribute name="ViewScale" type="xsd:float" />
    <xsd:attribute name="ViewCenterX" type="xsd:float" />
    <xsd:attribute name="ViewCenterY" type="xsd:float" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StencilGroup nsA:StencilGroup 0 (1)
StencilGroupPos nsA:StencilGroupPos 0 (1)
ShowRulers nsA:ShowRulers 0 (1)
ShowGrid nsA:ShowGrid 0 (1)
ShowPageBreaks nsA:ShowPageBreaks 0 (1)
ShowGuides nsA:ShowGuides 0 (1)
ShowConnectionPoints nsA:ShowConnectionPoints 0 (1)
GlueSettings nsA:GlueSettings 0 (1)
SnapSettings nsA:SnapSettings 0 (1)
SnapExtensions nsA:SnapExtensions 0 (1)
SnapAngles nsA:SnapAngles 0 (1)
DynamicGridEnabled nsA:DynamicGridEnabled 0 (1)
TabSplitterPos nsA:TabSplitterPos 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ID nsA:ID (Optional)
WindowType nsA:WindowType (Optional)
WindowState nsA:WindowState (Optional)
Document nsA:Document (Optional)
WindowLeft nsA:WindowLeft (Optional)
WindowTop nsA:WindowTop (Optional)
WindowWidth nsA:WindowWidth (Optional)
WindowHeight nsA:WindowHeight (Optional)
Master nsA:Master (Optional)
ContainerType nsA:ContainerType (Optional)
Container nsA:Container (Optional)
Sheet nsA:Sheet (Optional)
ReadOnly nsA:ReadOnly (Optional)
ParentWindow nsA:ParentWindow (Optional)
Page nsA:Page (Optional)
ViewScale nsA:ViewScale (Optional)
ViewCenterX nsA:ViewCenterX (Optional)
ViewCenterY nsA:ViewCenterY (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:Window
