Definition Type: ComplexType
Name: XForm_Type
Namespace: http://schemas.microsoft.com/visio/2003/core
Type: nsA:Row_Type
Containing Schema: visio.xsd
Abstract
Collapse XSD Schema Diagram:

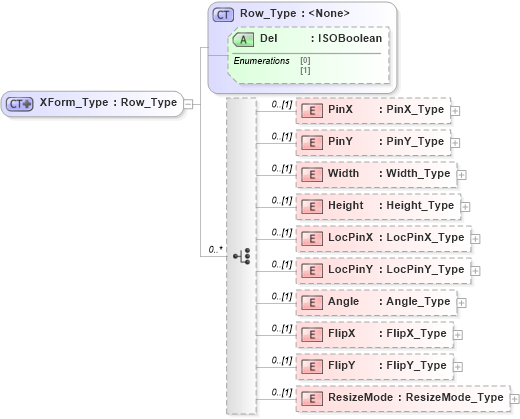

Drilldown into ResizeMode in schema visio_xsd Drilldown into FlipY in schema visio_xsd Drilldown into FlipX in schema visio_xsd Drilldown into Angle in schema visio_xsd Drilldown into LocPinY in schema visio_xsd Drilldown into LocPinX in schema visio_xsd Drilldown into Height in schema visio_xsd Drilldown into Width in schema visio_xsd Drilldown into PinY in schema visio_xsd Drilldown into PinX in schema visio_xsd Drilldown into Del in schema visio_xsd Drilldown into Row_Type in schema visio_xsdXSD Diagram of XForm_Type in schema visio_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:complexType name="XForm_Type">
    <xsd:complexContent>
        <xsd:extension base="Row_Type">
            <xsd:choice minOccurs="0" maxOccurs="unbounded">
                <xsd:element name="PinX" type="PinX_Type" minOccurs="0" />
                <xsd:element name="PinY" type="PinY_Type" minOccurs="0" />
                <xsd:element name="Width" type="Width_Type" minOccurs="0" />
                <xsd:element name="Height" type="Height_Type" minOccurs="0" />
                <xsd:element name="LocPinX" type="LocPinX_Type" minOccurs="0" />
                <xsd:element name="LocPinY" type="LocPinY_Type" minOccurs="0" />
                <xsd:element name="Angle" type="Angle_Type" minOccurs="0" />
                <xsd:element name="FlipX" type="FlipX_Type" minOccurs="0" />
                <xsd:element name="FlipY" type="FlipY_Type" minOccurs="0" />
                <xsd:element name="ResizeMode" type="ResizeMode_Type" minOccurs="0" />
            </xsd:choice>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PinX nsA:PinX 0 (1)
PinY nsA:PinY 0 (1)
Width nsA:Width 0 (1)
Height nsA:Height 0 (1)
LocPinX nsA:LocPinX 0 (1)
LocPinY nsA:LocPinY 0 (1)
Angle nsA:Angle 0 (1)
FlipX nsA:FlipX 0 (1)
FlipY nsA:FlipY 0 (1)
ResizeMode nsA:ResizeMode 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Del nsA:Del (Optional)
Collapse Derivation Tree:
Collapse References:
nsA:XForm
