Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_NonVisualDrawingProps
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-documentProperties.xsd
Abstract
Collapse XSD Schema Diagram:

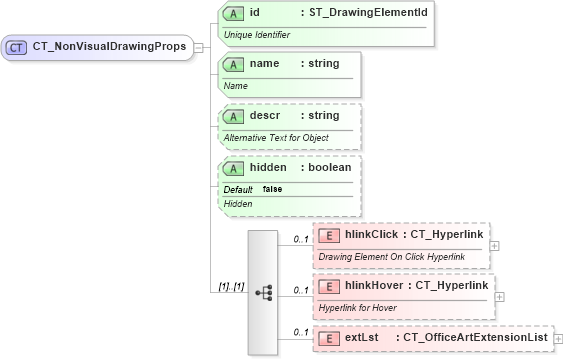

Drilldown into extLst in schema dml-documentproperties_xsd Drilldown into hlinkHover in schema dml-documentproperties_xsd Drilldown into hlinkClick in schema dml-documentproperties_xsd Drilldown into hidden in schema dml-documentproperties_xsd Drilldown into descr in schema dml-documentproperties_xsd Drilldown into name in schema dml-documentproperties_xsd Drilldown into id in schema dml-documentproperties_xsdXSD Diagram of CT_NonVisualDrawingProps in schema dml-documentproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_NonVisualDrawingProps">
    <xsd:sequence>
        <xsd:element name="hlinkClick" type="CT_Hyperlink" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Drawing Element On Click Hyperlink</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="hlinkHover" type="CT_Hyperlink" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Hyperlink for Hover</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="id" type="ST_DrawingElementId" use="required">
        <xsd:annotation>
            <xsd:documentation>Unique Identifier</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="name" type="xsd:string" use="required">
        <xsd:annotation>
            <xsd:documentation>Name</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="descr" type="xsd:string" use="optional" default="">
        <xsd:annotation>
            <xsd:documentation>Alternative Text for Object</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="hidden" type="xsd:boolean" use="optional" default="false">
        <xsd:annotation>
            <xsd:documentation>Hidden</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
hlinkClick a:hlinkClick 0 1
hlinkHover a:hlinkHover 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
id a:id Required
name a:name Required
descr a:descr Optional
hidden a:hidden false Optional
Collapse Derivation Tree:
Collapse References:
cdr:cNvPr, cdr:cNvPr, nsE:cNvPr, nsF:cNvPr, nsF:cNvPr, nsF:cNvPr, nsF:cNvPr, nsF:cNvPr, p:cNvPr, p:cNvPr, p:cNvPr, p:cNvPr, cdr:cNvPr, p:cNvPrcdr:cNvPr, cdr:cNvPr, a:cNvPr, a:cNvPr, a:cNvPr, a:cNvPr, a:cNvPr, wp:docPr, wp:docPr,
