Definition Type: ComplexType
Name: CT_NonVisualPictureProperties
Namespace: http://schemas.openxmlformats.org/drawingml/2006/main
Containing Schema: dml-documentProperties.xsd
Abstract
Collapse XSD Schema Diagram:

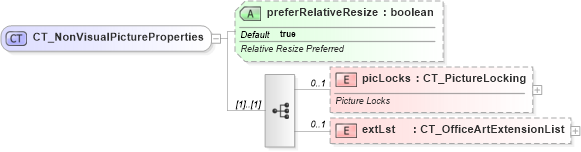

Drilldown into extLst in schema dml-documentproperties_xsd Drilldown into picLocks in schema dml-documentproperties_xsd Drilldown into preferRelativeResize in schema dml-documentproperties_xsdXSD Diagram of CT_NonVisualPictureProperties in schema dml-documentproperties_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_NonVisualPictureProperties">
    <xsd:sequence>
        <xsd:element name="picLocks" type="CT_PictureLocking" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Picture Locks</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_OfficeArtExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="preferRelativeResize" type="xsd:boolean" use="optional" default="true">
        <xsd:annotation>
            <xsd:documentation>Relative Resize Preferred</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
picLocks a:picLocks 0 1
extLst a:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
preferRelativeResize a:preferRelativeResize true Optional
Collapse Derivation Tree:
Collapse References:
cdr:cNvPicPr, a:cNvPicPr, nsE:cNvPicPr, nsF:cNvPicPr, p:cNvPicPr
