Definition Type: ComplexType
Name: CT_NumData
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

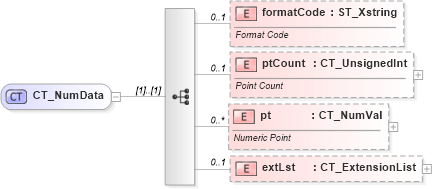

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into pt in schema dml-chart_xsd Drilldown into ptCount in schema dml-chart_xsd Drilldown into formatCode in schema dml-chart_xsdXSD Diagram of CT_NumData in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_NumData">
    <xsd:sequence>
        <xsd:element name="formatCode" type="ST_Xstring" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Format Code</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="ptCount" type="CT_UnsignedInt" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Point Count</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="pt" type="CT_NumVal" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>Numeric Point</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
formatCode nsA:formatCode 0 1
ptCount nsA:ptCount 0 1
pt nsA:pt 0 unbounded
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:numCachensA:numLit, nsA:numLit,
