Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: ComplexType
Name: CT_PlotArea
Namespace: http://schemas.openxmlformats.org/drawingml/2006/chart
Containing Schema: dml-chart.xsd
Abstract

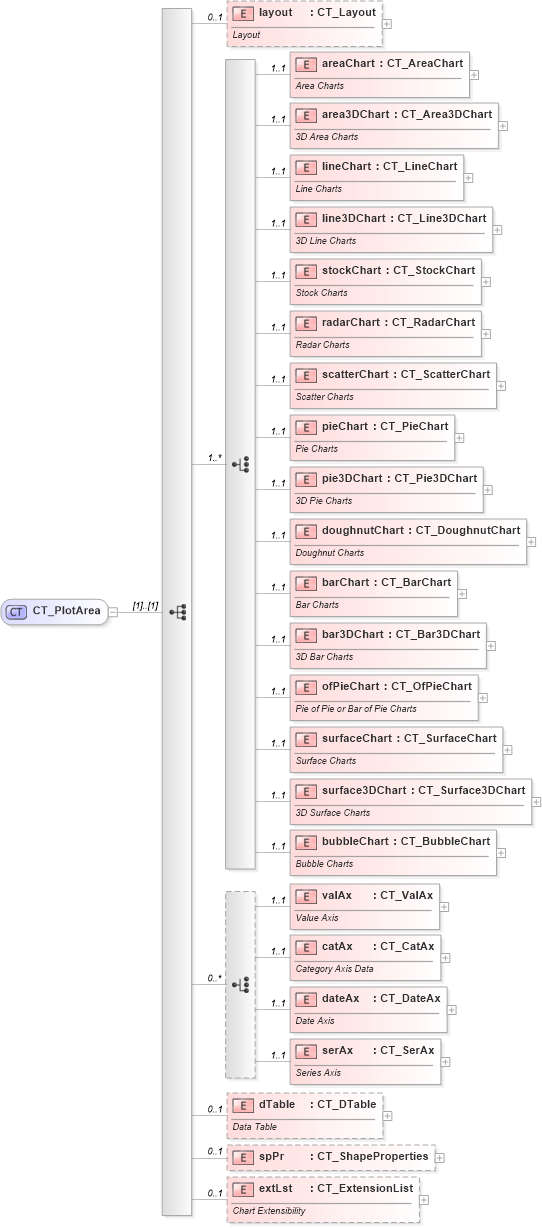

Collapse XSD Schema Diagram:
Drilldown into extLst in schema dml-chart_xsd Drilldown into spPr in schema dml-chart_xsd Drilldown into dTable in schema dml-chart_xsd Drilldown into serAx in schema dml-chart_xsd Drilldown into dateAx in schema dml-chart_xsd Drilldown into catAx in schema dml-chart_xsd Drilldown into valAx in schema dml-chart_xsd Drilldown into bubbleChart in schema dml-chart_xsd Drilldown into surface3DChart in schema dml-chart_xsd Drilldown into surfaceChart in schema dml-chart_xsd Drilldown into ofPieChart in schema dml-chart_xsd Drilldown into bar3DChart in schema dml-chart_xsd Drilldown into barChart in schema dml-chart_xsd Drilldown into doughnutChart in schema dml-chart_xsd Drilldown into pie3DChart in schema dml-chart_xsd Drilldown into pieChart in schema dml-chart_xsd Drilldown into scatterChart in schema dml-chart_xsd Drilldown into radarChart in schema dml-chart_xsd Drilldown into stockChart in schema dml-chart_xsd Drilldown into line3DChart in schema dml-chart_xsd Drilldown into lineChart in schema dml-chart_xsd Drilldown into area3DChart in schema dml-chart_xsd Drilldown into areaChart in schema dml-chart_xsd Drilldown into layout in schema dml-chart_xsdXSD Diagram of CT_PlotArea in schema dml-chart_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:complexType name="CT_PlotArea">
    <xsd:sequence>
        <xsd:element name="layout" type="CT_Layout" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Layout</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:choice minOccurs="1" maxOccurs="unbounded">
            <xsd:element name="areaChart" type="CT_AreaChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Area Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="area3DChart" type="CT_Area3DChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>3D Area Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="lineChart" type="CT_LineChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Line Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="line3DChart" type="CT_Line3DChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>3D Line Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="stockChart" type="CT_StockChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Stock Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="radarChart" type="CT_RadarChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Radar Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="scatterChart" type="CT_ScatterChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Scatter Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="pieChart" type="CT_PieChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Pie Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="pie3DChart" type="CT_Pie3DChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>3D Pie Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="doughnutChart" type="CT_DoughnutChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Doughnut Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="barChart" type="CT_BarChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Bar Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="bar3DChart" type="CT_Bar3DChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>3D Bar Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ofPieChart" type="CT_OfPieChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Pie of Pie or Bar of Pie Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="surfaceChart" type="CT_SurfaceChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Surface Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="surface3DChart" type="CT_Surface3DChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>3D Surface Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="bubbleChart" type="CT_BubbleChart" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Bubble Charts</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:choice minOccurs="0" maxOccurs="unbounded">
            <xsd:element name="valAx" type="CT_ValAx" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Value Axis</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="catAx" type="CT_CatAx" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Category Axis Data</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="dateAx" type="CT_DateAx" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Date Axis</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="serAx" type="CT_SerAx" minOccurs="1" maxOccurs="1">
                <xsd:annotation>
                    <xsd:documentation>Series Axis</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:choice>
        <xsd:element name="dTable" type="CT_DTable" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Data Table</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="spPr" type="a:CT_ShapeProperties" minOccurs="0" maxOccurs="1">
        </xsd:element>
        <xsd:element name="extLst" type="CT_ExtensionList" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>Chart Extensibility</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
layout nsA:layout 0 1
areaChart nsA:areaChart 1 1
area3DChart nsA:area3DChart 1 1
lineChart nsA:lineChart 1 1
line3DChart nsA:line3DChart 1 1
stockChart nsA:stockChart 1 1
radarChart nsA:radarChart 1 1
scatterChart nsA:scatterChart 1 1
pieChart nsA:pieChart 1 1
pie3DChart nsA:pie3DChart 1 1
doughnutChart nsA:doughnutChart 1 1
barChart nsA:barChart 1 1
bar3DChart nsA:bar3DChart 1 1
ofPieChart nsA:ofPieChart 1 1
surfaceChart nsA:surfaceChart 1 1
surface3DChart nsA:surface3DChart 1 1
bubbleChart nsA:bubbleChart 1 1
valAx nsA:valAx 1 1
catAx nsA:catAx 1 1
dateAx nsA:dateAx 1 1
serAx nsA:serAx 1 1
dTable nsA:dTable 0 1
spPr nsA:spPr 0 1
extLst nsA:extLst 0 1
Collapse Derivation Tree:
Collapse References:
nsA:plotArea
