Definition Type: Element
Name: else
Namespace: http://schemas.openxmlformats.org/drawingml/2006/diagram
Type: nsC:CT_Otherwise
Containing Schema: dml-diagramDefinition.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Else
Collapse XSD Schema Diagram:

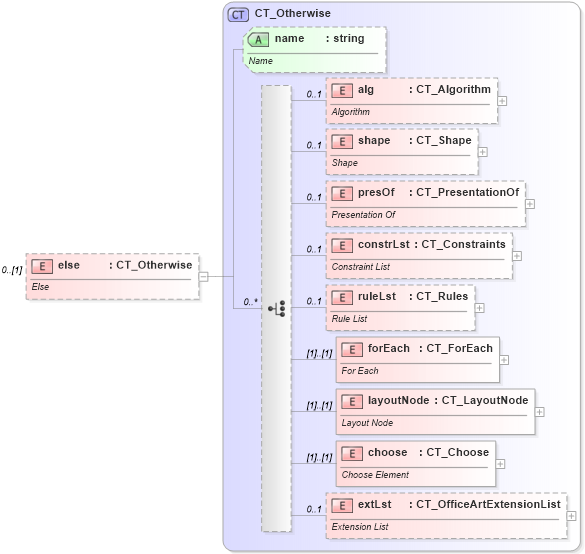

Drilldown into extLst in schema dml-diagramdefinition_xsd Drilldown into choose in schema dml-diagramdefinition_xsd Drilldown into layoutNode in schema dml-diagramdefinition_xsd Drilldown into forEach in schema dml-diagramdefinition_xsd Drilldown into ruleLst in schema dml-diagramdefinition_xsd Drilldown into constrLst in schema dml-diagramdefinition_xsd Drilldown into presOf in schema dml-diagramdefinition_xsd Drilldown into shape in schema dml-diagramdefinition_xsd Drilldown into alg in schema dml-diagramdefinition_xsd Drilldown into name in schema dml-diagramdefinition_xsd Drilldown into CT_Otherwise in schema dml-diagramdefinition_xsdXSD Diagram of else in schema dml-diagramdefinition_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="else" type="CT_Otherwise" minOccurs="0">
    <xsd:annotation>
        <xsd:documentation>Else</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
alg nsC:alg 0 1
shape nsC:shape 0 1
presOf nsC:presOf 0 1
constrLst nsC:constrLst 0 1
ruleLst nsC:ruleLst 0 1
forEach nsC:forEach (1) (1)
layoutNode nsC:layoutNode (1) (1)
choose nsC:choose (1) (1)
extLst nsC:extLst 0 1
Collapse Child Attributes:
Name Type Default Value Use
name nsC:name Optional
