Documentation for Office Open XML (OOXML / OpenXML / Ecma 376)
Definition Type: Element
Name: r
Namespace: http://schemas.openxmlformats.org/spreadsheetml/2006/main
Type: nsM:CT_Record
Containing Schema: sml-pivotTable.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
PivotCache Record

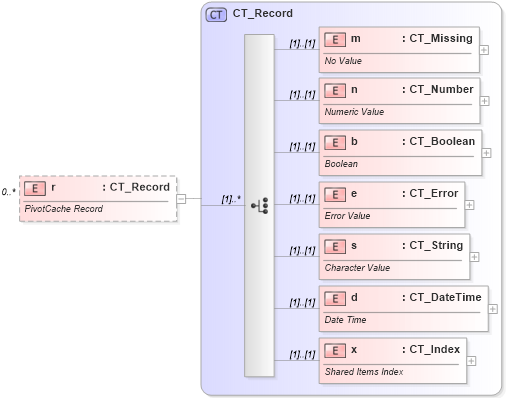

Collapse XSD Schema Diagram:
Drilldown into x in schema sml-pivottable_xsd Drilldown into d in schema sml-pivottable_xsd Drilldown into s in schema sml-pivottable_xsd Drilldown into e in schema sml-pivottable_xsd Drilldown into b in schema sml-pivottable_xsd Drilldown into n in schema sml-pivottable_xsd Drilldown into m in schema sml-pivottable_xsd Drilldown into CT_Record in schema sml-pivottable_xsdXSD Diagram of r in schema sml-pivottable_xsd (Office Open XML (OOXML / OpenXML / Ecma 376))
Collapse XSD Schema Code:
<xsd:element name="r" minOccurs="0" maxOccurs="unbounded" type="CT_Record">
    <xsd:annotation>
        <xsd:documentation>PivotCache Record</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
m nsM:m (1) (1)
n nsM:n (1) (1)
b nsM:b (1) (1)
e nsM:e (1) (1)
s nsM:s (1) (1)
d nsM:d (1) (1)
x nsM:x (1) (1)
Collapse Derivation Tree:
