Documentation for Open Travel (OTA)
Definition Type: Element
Name: AirReservation
Namespace: http://www.opentravel.org/OTA/2003/05
Type: AirReservationType
Containing Schema: OTA_AirBookRS.xsd
MinOccurs 0
MaxOccurs 9
Abstract
Documentation:
Contains all booking response information pertaining to a completed reservation.

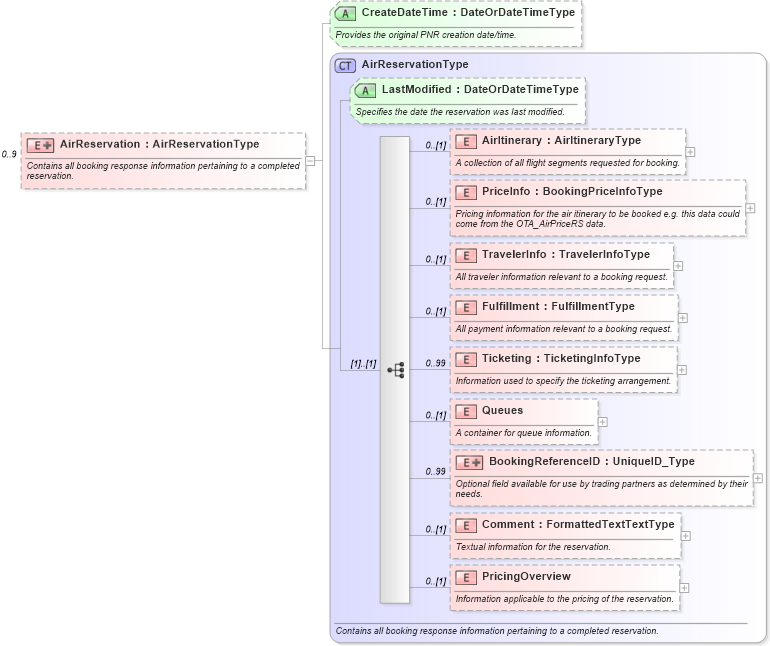

Collapse XSD Schema Diagram:
Drilldown into PricingOverview in schema ota_aircommontypes_xsd Drilldown into Comment in schema ota_aircommontypes_xsd Drilldown into BookingReferenceID in schema ota_aircommontypes_xsd Drilldown into Queues in schema ota_aircommontypes_xsd Drilldown into Ticketing in schema ota_aircommontypes_xsd Drilldown into Fulfillment in schema ota_aircommontypes_xsd Drilldown into TravelerInfo in schema ota_aircommontypes_xsd Drilldown into PriceInfo in schema ota_aircommontypes_xsd Drilldown into AirItinerary in schema ota_aircommontypes_xsd Drilldown into LastModified in schema ota_aircommontypes_xsd Drilldown into AirReservationType in schema ota_aircommontypes_xsd Drilldown into CreateDateTime in schema ota_airbookrs_xsdXSD Diagram of AirReservation in schema ota_airbookrs_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="AirReservation" minOccurs="0" maxOccurs="9">
    <xs:annotation>
        <xs:documentation xml:lang="en">Contains all booking response information pertaining to a completed reservation.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="AirReservationType">
                <xs:attribute name="CreateDateTime" type="DateOrDateTimeType" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">Provides the original PNR creation date/time.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AirItinerary AirItinerary 0 (1)
PriceInfo PriceInfo 0 (1)
TravelerInfo TravelerInfo 0 (1)
Fulfillment Fulfillment 0 (1)
Ticketing Ticketing 0 99
Queues Queues 0 (1)
BookingReferenceID BookingReferenceID 0 99
Comment Comment 0 (1)
PricingOverview PricingOverview 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
LastModified LastModified Optional
CreateDateTime nsA:CreateDateTime Optional
Collapse Derivation Tree:
