Docs for schema item DateTimeSpanType in Open Travel (OTA)

Documentation for Open Travel (OTA)

Definition Type:	ComplexType
Name:	DateTimeSpanType
Containing Schema:	OTA_CommonTypes.xsd
Abstract
Documentation:	Used to specify a time window range by either specifying an earliest and latest date for the start date and end date or by giving a date with a time period that can be applied before and/or after the start date.

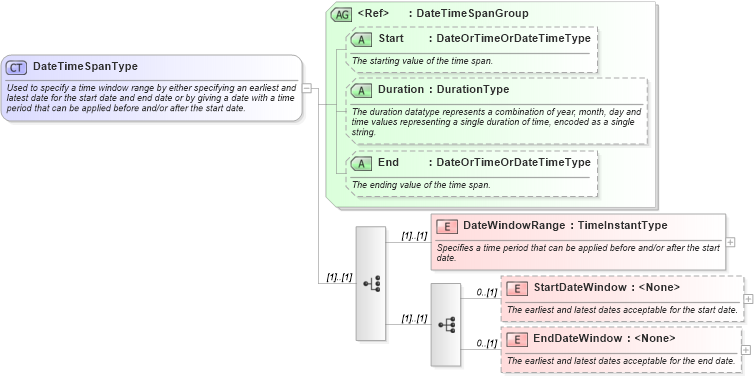

XSD Schema Diagram:

XSD Diagram of DateTimeSpanType in schema ota_commontypes_xsd1 (Open Travel (OTA))

XSD Schema Code:

<xs:complexType name="DateTimeSpanType">
    <xs:annotation>
        <xs:documentation xml:lang="en">Used to specify a time window range by either specifying an earliest and latest date for the start date and end date or by giving a date with a time period that can be applied before and/or after the start date.</xs:documentation>
    </xs:annotation>
    <xs:choice>
        <xs:element name="DateWindowRange" type="TimeInstantType">
            <xs:annotation>
                <xs:documentation xml:lang="en">Specifies a time period that can be applied before and/or after the start date.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:sequence>
            <xs:element name="StartDateWindow" minOccurs="0">
                <xs:annotation>
                    <xs:documentation xml:lang="en">The earliest and latest dates acceptable for the start date.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attributeGroup ref="TimeWindowGroup">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">Identifies a date range.</xs:documentation>
                        </xs:annotation>
                    </xs:attributeGroup>
                </xs:complexType>
            </xs:element>
            <xs:element name="EndDateWindow" minOccurs="0">
                <xs:annotation>
                    <xs:documentation xml:lang="en">The earliest and latest dates acceptable for the end date.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attributeGroup ref="TimeWindowGroup">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">Identifies a date range.</xs:documentation>
                        </xs:annotation>
                    </xs:attributeGroup>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:choice>
    <xs:attributeGroup ref="DateTimeSpanGroup">
        <xs:annotation>
            <xs:documentation xml:lang="en">Defines the date and/or time span.</xs:documentation>
        </xs:annotation>
    </xs:attributeGroup>
</xs:complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
DateWindowRange	DateWindowRange	(1)	(1)
StartDateWindow	StartDateWindow	0	(1)
EndDateWindow	EndDateWindow	0	(1)

Child Attributes:

Name	Type	Default Value	Use
Start	Start		Optional
Duration	Duration		Optional
End	End		Optional

Derivation Tree:

DateTimeSpanType

BlackoutDate

Unresolved link to sailingdaterange

Unresolved link to staydaterange

Unresolved link to staydaterange1

Unresolved link to timespan

Unresolved link to timespan3

Unresolved link to closedseason1

Unresolved link to date15

Unresolved link to date18

Unresolved link to date19

Unresolved link to timespan5

Unresolved link to inhousetimespan1

Unresolved link to date20

Unresolved link to availabledaterange1

Unresolved link to offereddaterange

Unresolved link to daterange1

Unresolved link to daterange3

Unresolved link to date24

Unresolved link to daterange6

Unresolved link to daterange12

Unresolved link to searchdaterange

References:

Unresolved link to availabledaterange1, BlackoutDate, Unresolved link to closedseason1, Unresolved link to date15, Unresolved link to date18, Unresolved link to date19, Unresolved link to date20, Unresolved link to date24, Unresolved link to daterange1, Unresolved link to daterange12, Unresolved link to daterange3, Unresolved link to daterange6, Unresolved link to inhousetimespan1, Unresolved link to offereddaterange, Unresolved link to sailingdaterange, Unresolved link to searchdaterange Unresolved link to staydaterange, Unresolved link to staydaterange1, Unresolved link to timespan, Unresolved link to timespan3, Unresolved link to timespan5,
