Documentation for Open Travel (OTA)
Definition Type: Element
Name: DepartureAirport
Namespace: http://www.opentravel.org/OTA/2003/05
Containing Schema: OTA_AirFlifoRS.xsd
MinOccurs 0
MaxOccurs (1)
Abstract
Documentation:
Departure airport for flight leg.

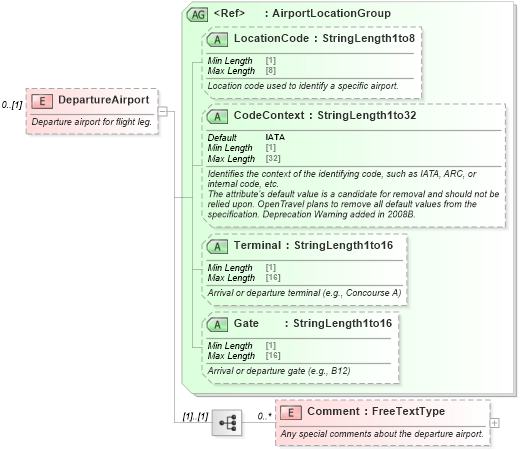

Collapse XSD Schema Diagram:
Drilldown into Comment in schema ota_airflifors_xsd Drilldown into Gate in schema ota_commontypes_xsd1 Drilldown into Terminal in schema ota_commontypes_xsd1 Drilldown into CodeContext in schema ota_commontypes_xsd1 Drilldown into LocationCode in schema ota_commontypes_xsd1 Drilldown into AirportLocationGroup in schema ota_commontypes_xsd1XSD Diagram of DepartureAirport in schema ota_airflifors_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="DepartureAirport" minOccurs="0">
    <xs:annotation>
        <xs:documentation xml:lang="en"> Departure airport for flight leg.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="Comment" type="FreeTextType" minOccurs="0" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation xml:lang="en">Any special comments about the departure airport.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:sequence>
        <xs:attributeGroup ref="AirportLocationGroup" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Comment nsA:Comment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
LocationCode LocationCode Optional
CodeContext CodeContext IATA Optional
Terminal Terminal Optional
Gate Gate Optional
