Documentation for Open Travel (OTA)
Definition Type: Element
Name: Dining
Namespace: http://www.opentravel.org/OTA/2003/05
Containing Schema: OTA_CruiseCabinHoldRS.xsd
MinOccurs 0
MaxOccurs 5
Abstract
Documentation:
A list of dining options with the availability status.

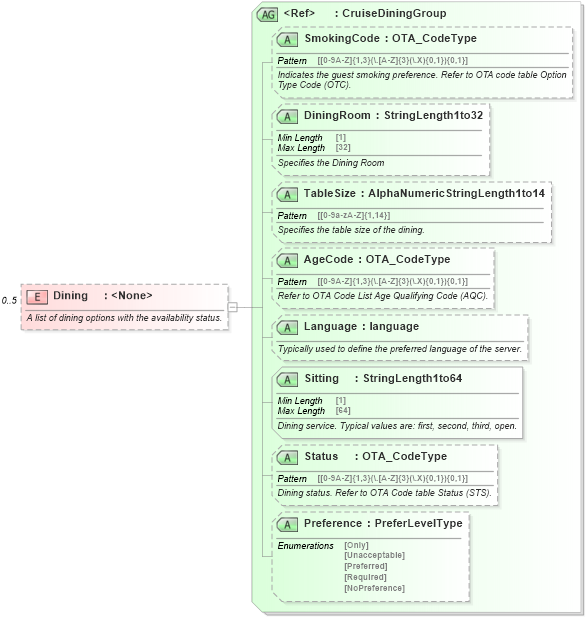

Collapse XSD Schema Diagram:
Drilldown into Preference in schema ota_cruisecommontypes_xsd Drilldown into Status in schema ota_cruisecommontypes_xsd Drilldown into Sitting in schema ota_cruisecommontypes_xsd Drilldown into Language in schema ota_cruisecommontypes_xsd Drilldown into AgeCode in schema ota_cruisecommontypes_xsd Drilldown into TableSize in schema ota_cruisecommontypes_xsd Drilldown into DiningRoom in schema ota_cruisecommontypes_xsd Drilldown into SmokingCode in schema ota_cruisecommontypes_xsdXSD Diagram of Dining in schema ota_cruisecabinholdrs_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="Dining" minOccurs="0" maxOccurs="5">
    <xs:annotation>
        <xs:documentation xml:lang="en">A list of dining options with the availability status.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attributeGroup ref="CruiseDiningGroup" />
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
SmokingCode SmokingCode Optional
DiningRoom DiningRoom Optional
TableSize TableSize Optional
AgeCode AgeCode Optional
Language Language Optional
Sitting Sitting Required
Status Status Optional
Preference Preference Optional
