Documentation for Open Travel (OTA)
Definition Type: Element
Name: FareInfo
Type: FareInfoType
Containing Schema: OTA_AirCommonTypes.xsd
MinOccurs 0
MaxOccurs 99
Abstract
Documentation:
Detailed information on individual priced fares.

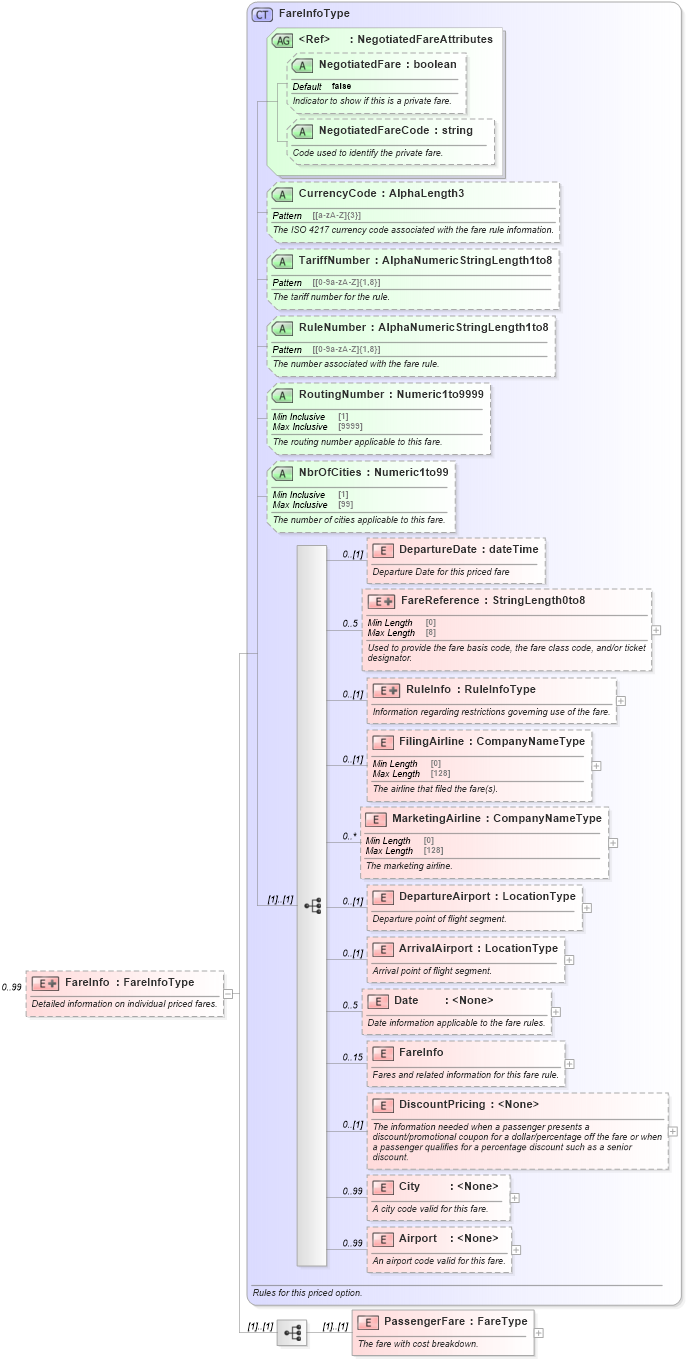

Collapse XSD Schema Diagram:
Drilldown into Airport in schema ota_aircommontypes_xsd1 Drilldown into City in schema ota_aircommontypes_xsd1 Drilldown into DiscountPricing in schema ota_aircommontypes_xsd1 Drilldown into FareInfo in schema ota_aircommontypes_xsd1 Drilldown into Date in schema ota_aircommontypes_xsd1 Drilldown into ArrivalAirport in schema ota_aircommontypes_xsd1 Drilldown into DepartureAirport in schema ota_aircommontypes_xsd1 Drilldown into MarketingAirline in schema ota_aircommontypes_xsd1 Drilldown into FilingAirline in schema ota_aircommontypes_xsd1 Drilldown into RuleInfo in schema ota_aircommontypes_xsd1 Drilldown into FareReference in schema ota_aircommontypes_xsd1 Drilldown into DepartureDate in schema ota_aircommontypes_xsd1 Drilldown into NbrOfCities in schema ota_aircommontypes_xsd Drilldown into RoutingNumber in schema ota_aircommontypes_xsd Drilldown into RuleNumber in schema ota_aircommontypes_xsd Drilldown into TariffNumber in schema ota_aircommontypes_xsd Drilldown into CurrencyCode in schema ota_aircommontypes_xsd Drilldown into NegotiatedFareCode in schema ota_aircommontypes_xsd Drilldown into NegotiatedFare in schema ota_aircommontypes_xsd Drilldown into NegotiatedFareAttributes in schema ota_aircommontypes_xsd1 Drilldown into FareInfoType in schema ota_aircommontypes_xsd1XSD Diagram of FareInfo in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="FareInfo" minOccurs="0" maxOccurs="99">
    <xs:annotation>
        <xs:documentation xml:lang="en">Detailed information on individual priced fares. </xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:annotation>
            <xs:documentation xml:lang="en"> Information used to define a fare and its associated rules information.</xs:documentation>
        </xs:annotation>
        <xs:complexContent>
            <xs:extension base="FareInfoType">
                <xs:sequence>
                    <xs:element name="PassengerFare" type="FareType">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">The fare with cost breakdown. </xs:documentation>
                        </xs:annotation>
                    </xs:element>
                </xs:sequence>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureDate DepartureDate 0 (1)
FareReference FareReference 0 5
RuleInfo RuleInfo 0 (1)
FilingAirline FilingAirline 0 (1)
MarketingAirline MarketingAirline 0 unbounded
DepartureAirport DepartureAirport 0 (1)
ArrivalAirport ArrivalAirport 0 (1)
Date Date 0 5
FareInfo FareInfo 0 15
DiscountPricing DiscountPricing 0 (1)
City City 0 99
Airport Airport 0 99
PassengerFare PassengerFare (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
NegotiatedFare NegotiatedFare false Optional
NegotiatedFareCode NegotiatedFareCode Optional
CurrencyCode CurrencyCode Optional
TariffNumber TariffNumber Optional
RuleNumber RuleNumber Optional
RoutingNumber RoutingNumber Optional
NbrOfCities NbrOfCities Optional
Collapse Derivation Tree:
