<xs:complexType name="FareType">
<xs:annotation>
<xs:documentation xml:lang="en">Holds a base fare, tax, total and currency information on a price</xs:documentation>
</xs:annotation>
<xs:sequence>
<xs:element name="BaseFare" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Price of the inventory excluding taxes and fees.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="CurrencyAmountGroup" />
<xs:attributeGroup ref="ExchangeRateGroup" />
</xs:complexType>
</xs:element>
<xs:element name="EquivFare" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Price of the inventory excluding taxes and fees in the payable currency.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="CurrencyAmountGroup" />
</xs:complexType>
</xs:element>
<xs:element name="Taxes" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">This is a collection of Taxes</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Tax" type="AirTaxType" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Any individual tax applied to the fare</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attribute name="Amount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The total of all the taxes.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Fees" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">This is a collection of Fees</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Fee" type="AirFeeType" maxOccurs="9">
<xs:annotation>
<xs:documentation xml:lang="en">Any additional fee incurred by the passenger but not shown on the ticket. </xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="CurrencyAmountGroup">
<xs:annotation>
<xs:documentation xml:lang="en">The fee total and the appropriate currency code.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
<xs:element name="TotalFare" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The total price that the passenger would pay (includes fare, taxes, fees) </xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="CurrencyAmountGroup" />
</xs:complexType>
</xs:element>
<xs:element name="FareConstruction" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Should not contain unstructured FareCalc data.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="FormattedIndicator" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, this is structured fare calculation information.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Language" type="xs:language" use="optional" />
<xs:attribute name="OriginCityCode" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The origin airport city code for this fare construction.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="OriginCodeContext" type="StringLength1to32" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Identifies the context of the origin city code such as IATA, ARC, or internal code.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DestinationCityCode" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The destination airport city code for this fare construction.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DestinationCodeContext" type="StringLength1to32" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Identifies the context of the destination city code such as IATA, ARC, or internal code.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="UnstructuredFareCalc" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Contains the fare calc information for the stored fare for the passenger.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="xs:string">
<xs:attribute name="FareCalcMode" type="AlphaNumericStringLength1" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Used to identify the method of pricing for this transaction (e.g., manual, automated pricing). Should be 1 character in length.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="FareBaggageAllowance" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Checked baggage allowance for the fare.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="UnitsOfMeasureGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Baggage allowance for this fare.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
<xs:attribute name="FlightSegmentRPH" type="RPH_Type" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The segment this baggage allowance is associated with.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="TourCode" type="StringLength1to16" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The tour code associated with the fare.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Remark" minOccurs="0" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">Free flow remarks for the fare breakdown.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StringLength0to64" />
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="OriginalIssueInfo" minOccurs="0">
<xs:annotation>
<xs:documentation>The original ticket/document issue information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="TicketDocumentNbr" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The original ticket/document number.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="IssuingAgentID" type="NumericStringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">ID of the original issuer of the ticket/document.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DateOfIssue" type="xs:date" use="optional">
<xs:annotation>
<xs:documentation>Date the ticket/document was originally issued.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="LocationCode" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Location of original issue.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="ExchangeInfo" minOccurs="0">
<xs:annotation>
<xs:documentation>Exchange ticket/document information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="CouponInfo" minOccurs="0" maxOccurs="4">
<xs:annotation>
<xs:documentation>Optional information on coupon numbers being exchanged.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Number" type="Numeric1to4" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The applicable coupon number.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="OriginalOriginDestination" minOccurs="0">
<xs:annotation>
<xs:documentation>The original origin and destination for exchanged ticket/documents.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="OriginCityCode" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Origin city code.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DestinationCityCode" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Destination city code.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="TicketDocumentNbr" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The new ticket/document number.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Discounts" minOccurs="0">
<xs:annotation>
<xs:documentation>Collection for discounts.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Discount" maxOccurs="99">
<xs:annotation>
<xs:documentation>Provides discount information associated with the fare.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="DiscountInfoGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Details regarding the discount.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element ref="TPA_Extensions" minOccurs="0" />
</xs:sequence>
<xs:attributeGroup ref="NegotiatedFareAttributes">
<xs:annotation>
<xs:documentation xml:lang="en"> Used to indicate a negotiated fare and, if so, the fare code.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
<xs:attribute name="TicketDesignatorCode" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies a discount code applicable to the fare.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TotalNbrTrips" type="Numeric1to99" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The total number of trips in this itinerary.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TotalNbrPTC" type="Numeric1to99" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The total number of passenger type codes in this priced itinerary.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
|

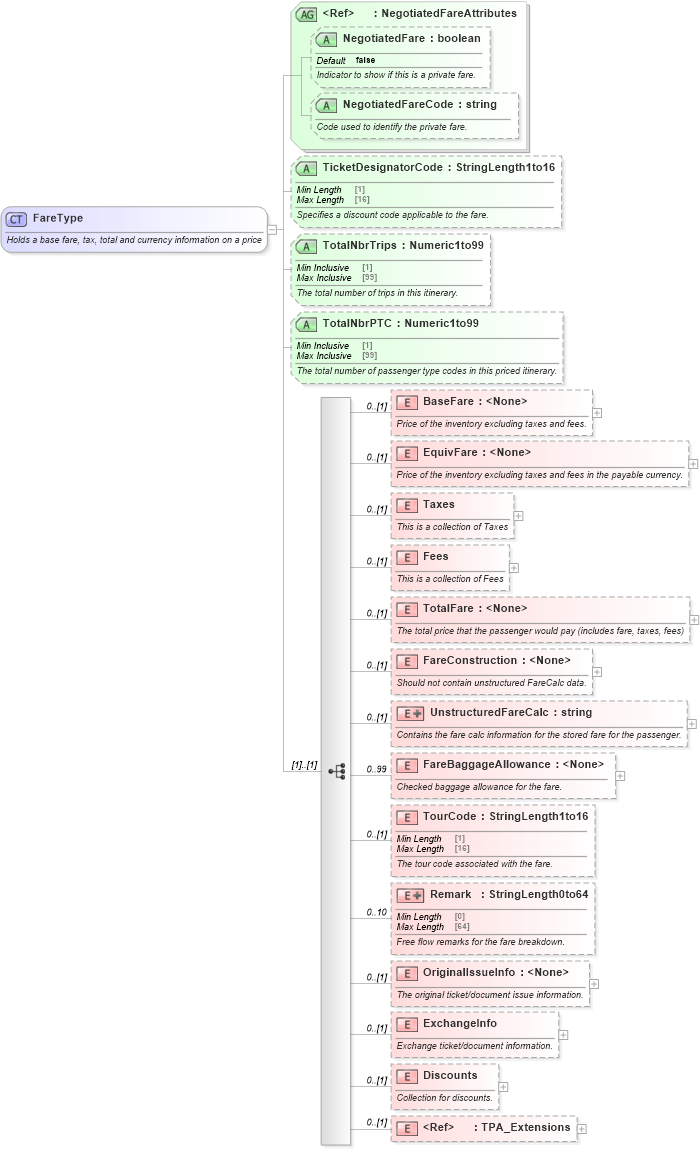

XSD Schema Diagram:
