Definition Type: Element
Name: Fee
Containing Schema: OTA_AirCommonTypes.xsd
MinOccurs (1)
MaxOccurs 9
Abstract
Documentation:
The ticket fee code.

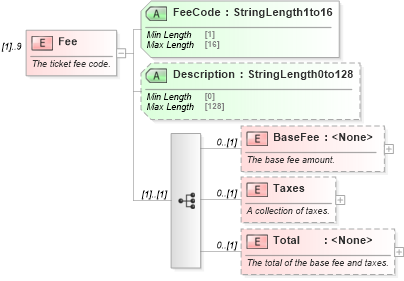

Collapse XSD Schema Diagram:
Drilldown into Description in schema ota_aircommontypes_xsd Drilldown into FeeCode in schema ota_aircommontypes_xsdXSD Diagram of Fee in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="Fee" maxOccurs="9">
    <xs:annotation>
        <xs:documentation xml:lang="en">The ticket fee code.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="BaseFee" minOccurs="0">
                <xs:annotation>
                    <xs:documentation xml:lang="en">The base fee amount.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="Amount" type="Money" use="required">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">The base fee amount.</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                </xs:complexType>
            </xs:element>
            <xs:element name="Taxes" minOccurs="0">
                <xs:annotation>
                    <xs:documentation xml:lang="en">A collection of taxes.</xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="Tax" type="AirTaxType" maxOccurs="99">
                            <xs:annotation>
                                <xs:documentation xml:lang="en">The tax for the ticket fee.</xs:documentation>
                            </xs:annotation>
                        </xs:element>
                    </xs:sequence>
                    <xs:attribute name="Amount" type="Money" use="optional">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">The total amount for all ticket fee taxes.</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                </xs:complexType>
            </xs:element>
            <xs:element name="Total" minOccurs="0">
                <xs:annotation>
                    <xs:documentation xml:lang="en">The total of the base fee and taxes. </xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:attribute name="Amount" type="Money" use="required">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">The total of the base fee and taxes.</xs:documentation>
                        </xs:annotation>
                    </xs:attribute>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
        <xs:attribute name="FeeCode" type="StringLength1to16" use="required" />
        <xs:attribute name="Description" type="StringLength0to128" use="optional" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BaseFee BaseFee 0 (1)
Taxes Taxes 0 (1)
Total Total 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
FeeCode FeeCode Required
Description Description Optional
