Definition Type: Element
Name: HotelRef
Containing Schema: OTA_CommonTypes.xsd
MinOccurs 0
MaxOccurs 99
Abstract
Documentation:
Indicates the detail of hotel reference information.

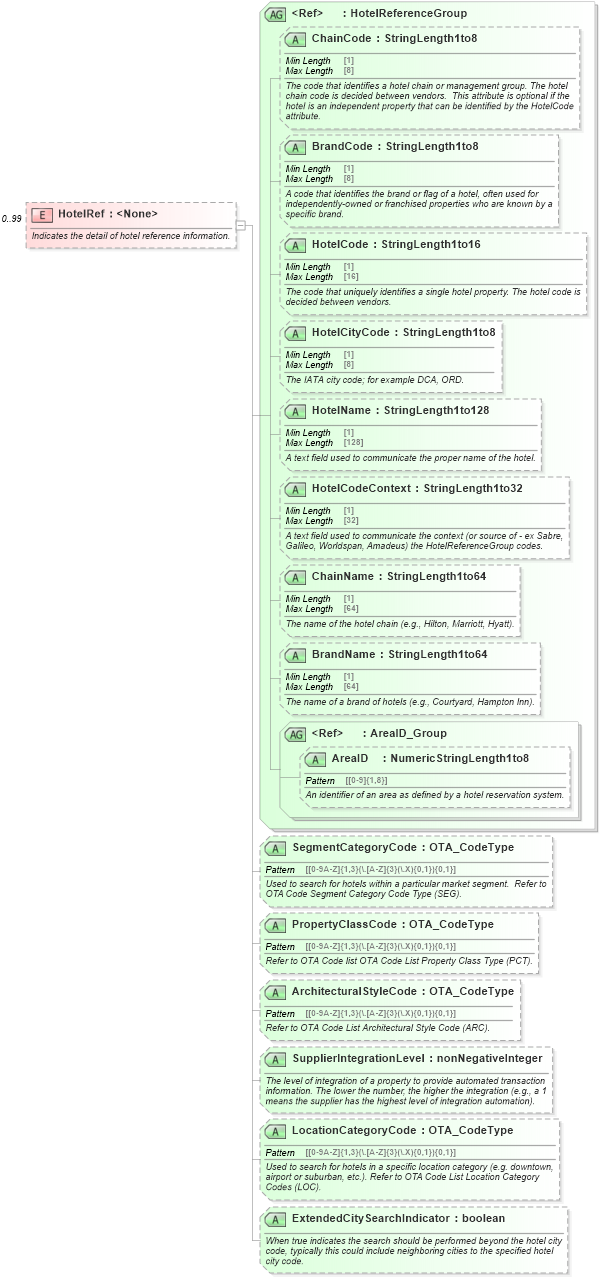

Collapse XSD Schema Diagram:
Drilldown into ExtendedCitySearchIndicator in schema ota_commontypes_xsd1 Drilldown into LocationCategoryCode in schema ota_commontypes_xsd1 Drilldown into SupplierIntegrationLevel in schema ota_commontypes_xsd1 Drilldown into ArchitecturalStyleCode in schema ota_commontypes_xsd1 Drilldown into PropertyClassCode in schema ota_commontypes_xsd1 Drilldown into SegmentCategoryCode in schema ota_commontypes_xsd1 Drilldown into AreaID in schema ota_commontypes_xsd1 Drilldown into AreaID_Group in schema ota_commontypes_xsd Drilldown into BrandName in schema ota_commontypes_xsd1 Drilldown into ChainName in schema ota_commontypes_xsd1 Drilldown into HotelCodeContext in schema ota_commontypes_xsd1 Drilldown into HotelName in schema ota_commontypes_xsd1 Drilldown into HotelCityCode in schema ota_commontypes_xsd1 Drilldown into HotelCode in schema ota_commontypes_xsd1 Drilldown into BrandCode in schema ota_commontypes_xsd1 Drilldown into ChainCode in schema ota_commontypes_xsd1 Drilldown into HotelReferenceGroup in schema ota_commontypes_xsdXSD Diagram of HotelRef in schema ota_commontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="HotelRef" minOccurs="0" maxOccurs="99">
    <xs:annotation>
        <xs:documentation xml:lang="en">Indicates the detail of hotel reference information.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attributeGroup ref="HotelReferenceGroup">
            <xs:annotation>
                <xs:documentation xml:lang="en">Detailed hotel information for the search.</xs:documentation>
            </xs:annotation>
        </xs:attributeGroup>
        <xs:attribute name="SegmentCategoryCode" type="OTA_CodeType" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Used to search for hotels within a particular market segment.  Refer to OTA Code Segment Category Code Type (SEG).
							</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="PropertyClassCode" type="OTA_CodeType" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Refer to OTA Code list OTA Code List Property Class Type (PCT).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="ArchitecturalStyleCode" type="OTA_CodeType" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Refer to OTA Code List Architectural Style Code (ARC).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="SupplierIntegrationLevel" type="xs:nonNegativeInteger" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">The level of integration of a property to provide automated transaction information. The lower the number, the higher the integration (e.g., a 1 means the supplier has the highest level of integration automation).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="LocationCategoryCode" type="OTA_CodeType" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Used to search for hotels in a specific location category (e.g. downtown, airport or suburban, etc.). Refer to OTA Code List Location Category Codes (LOC). </xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="ExtendedCitySearchIndicator" type="xs:boolean" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">When true indicates the search should be performed beyond the hotel city code, typically this could include neighboring cities to the specified hotel city code.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
ChainCode ChainCode Optional
BrandCode BrandCode Optional
HotelCode HotelCode Optional
HotelCityCode HotelCityCode Optional
HotelName HotelName Optional
HotelCodeContext HotelCodeContext Optional
ChainName ChainName Optional
BrandName BrandName Optional
AreaID AreaID Optional
SegmentCategoryCode SegmentCategoryCode Optional
PropertyClassCode PropertyClassCode Optional
ArchitecturalStyleCode ArchitecturalStyleCode Optional
SupplierIntegrationLevel SupplierIntegrationLevel Optional
LocationCategoryCode LocationCategoryCode Optional
ExtendedCitySearchIndicator ExtendedCitySearchIndicator Optional
