Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: LocationType
Type: string:http://www.w3.org/2001/XMLSchema
Containing Schema: OTA_CommonTypes.xsd
Abstract
Documentation:
Code and optional string to describe a location point.

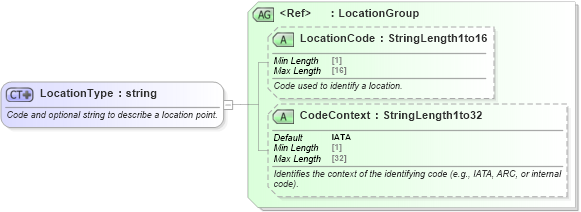

Collapse XSD Schema Diagram:
Drilldown into CodeContext in schema ota_commontypes_xsd1 Drilldown into LocationCode in schema ota_commontypes_xsd1 Drilldown into LocationGroup in schema ota_commontypes_xsdXSD Diagram of LocationType in schema ota_commontypes_xsd1 (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:complexType name="LocationType">
    <xs:annotation>
        <xs:documentation xml:lang="en">Code and optional string to describe a location point.</xs:documentation>
    </xs:annotation>
    <xs:simpleContent>
        <xs:extension base="xs:string">
            <xs:attributeGroup ref="LocationGroup">
                <xs:annotation>
                    <xs:documentation>
                        <DeprecationWarning>The attribute's default value is a candidate for removal and should not be relied upon. OpenTravel plans to remove all default values from the specification. Deprecation Warning added in 2008B.</DeprecationWarning>
                    </xs:documentation>
                    <xs:documentation xml:lang="en">A code identifying a location.</xs:documentation>
                </xs:annotation>
            </xs:attributeGroup>
        </xs:extension>
    </xs:simpleContent>
</xs:complexType>
Collapse Child Attributes:
Name Type Default Value Use
LocationCode LocationCode Optional
CodeContext CodeContext IATA (Optional)
Collapse Derivation Tree:
Collapse References:
AirportPrefType, Unresolved link to arrival, ArrivalAirport, ArrivalAirport, nsA:ArrivalAirport, nsA:ArrivalAirport, nsA:ArrivalAirport, Unresolved link to arrivalcity, nsA:ArrivalLocation, Unresolved link to arrivallocation1, Unresolved link to arrivallocation2, Unresolved link to arrivallocation3, Unresolved link to arrivalport, Unresolved link to arrivalstation, nsA:CityCodeOfIssue, CodeRef, nsA:ConnectionLocation, ConnectionLocation, Unresolved link to departure, DepartureAirport, Unresolved link to departureairport15, DepartureAirport, nsA:DepartureAirport, nsA:DepartureAirport, nsA:DepartureAirport, Unresolved link to departurecity1, nsA:DepartureLocation, Unresolved link to departurelocation1, Unresolved link to departurelocation2, Unresolved link to departureport1, Unresolved link to departurestation, Unresolved link to destination2, DestinationLocation, Unresolved link to destinationlocation3, Unresolved link to destinationlocation4, Unresolved link to destinationlocation6, Unresolved link to dropofflocation1, EndLocation, Unresolved link to exchangelocation, Unresolved link to gatewaycity1, Unresolved link to guestcity, Unresolved link to location15, Unresolved link to location16, Unresolved link to location19, Unresolved link to onewaydroplocation1, Unresolved link to origin, OriginLocation, Unresolved link to originlocation3, Unresolved link to originlocation4, Unresolved link to originlocation7, Unresolved link to pickuplocation2, Unresolved link to pickuplocation4, Unresolved link to pickuplocation5, Unresolved link to pickuplocation7, Unresolved link to pickuplocation8, Unresolved link to returnlocation, Unresolved link to returnlocation2, Unresolved link to returnlocation3, Unresolved link to returnlocation5StartLocation, Unresolved link to stationtype1, Unresolved link to traindestination, Unresolved link to trainorigin, nsA:TransitPoint, Unresolved link to vendorlocation1,
