Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: MessageAcknowledgementType
Containing Schema: OTA_CommonTypes.xsd
Abstract
Documentation:
Information to acknowledge the receipt of a message.

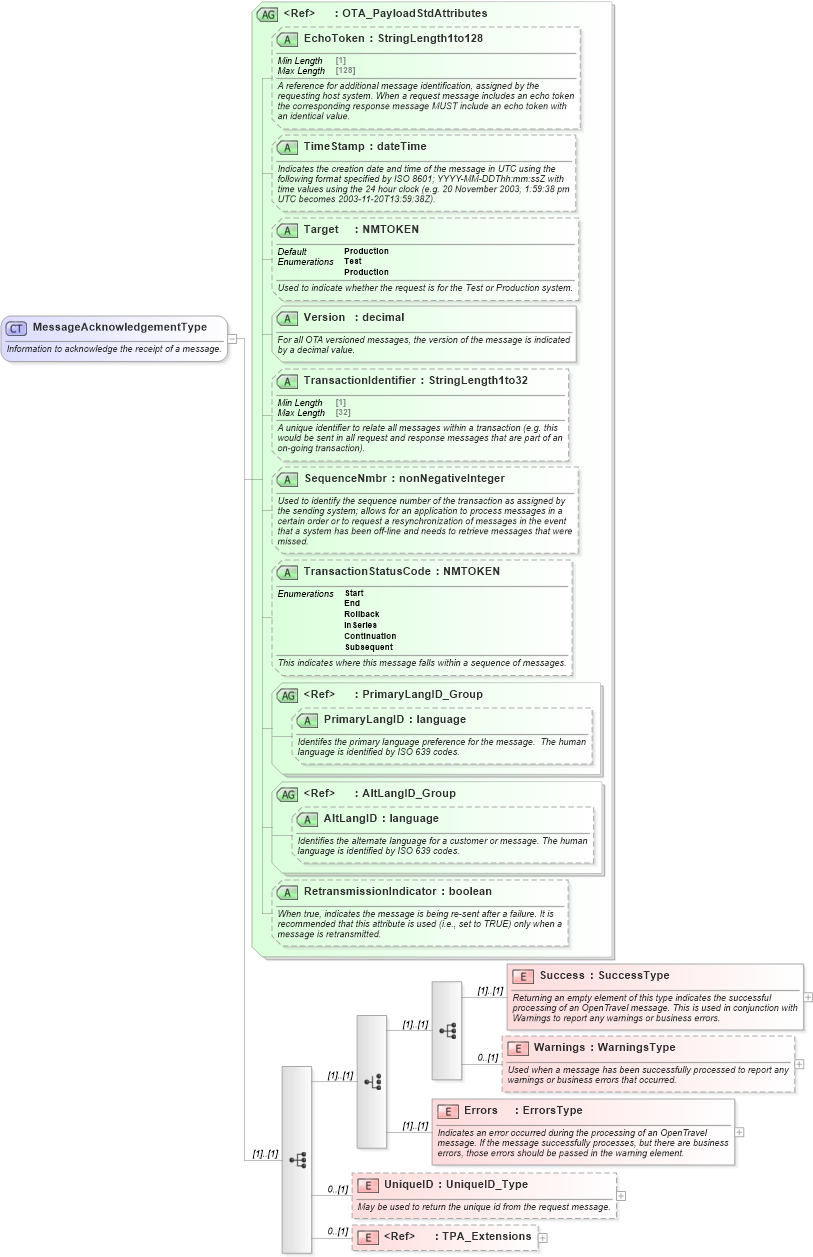

Collapse XSD Schema Diagram:
Drilldown into TPA_Extensions in schema ota_commontypes_xsd Drilldown into UniqueID in schema ota_commontypes_xsd Drilldown into Errors in schema ota_commontypes_xsd Drilldown into Warnings in schema ota_commontypes_xsd Drilldown into Success in schema ota_commontypes_xsd Drilldown into RetransmissionIndicator in schema ota_commontypes_xsd1 Drilldown into AltLangID in schema ota_commontypes_xsd1 Drilldown into AltLangID_Group in schema ota_commontypes_xsd Drilldown into PrimaryLangID in schema ota_commontypes_xsd1 Drilldown into PrimaryLangID_Group in schema ota_commontypes_xsd Drilldown into TransactionStatusCode in schema ota_commontypes_xsd1 Drilldown into SequenceNmbr in schema ota_commontypes_xsd1 Drilldown into TransactionIdentifier in schema ota_commontypes_xsd1 Drilldown into Version in schema ota_commontypes_xsd1 Drilldown into Target in schema ota_commontypes_xsd1 Drilldown into TimeStamp in schema ota_commontypes_xsd1 Drilldown into EchoToken in schema ota_commontypes_xsd1 Drilldown into OTA_PayloadStdAttributes in schema ota_commontypes_xsdXSD Diagram of MessageAcknowledgementType in schema ota_commontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:complexType name="MessageAcknowledgementType">
    <xs:annotation>
        <xs:documentation xml:lang="en">Information to acknowledge the receipt of a message.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:choice>
            <xs:sequence>
                <xs:element name="Success" type="SuccessType">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">Returning an empty element of this type indicates the successful processing of an OpenTravel message. This is used in conjunction with Warnings to report any warnings or business errors.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="Warnings" type="WarningsType" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">Used when a message has been successfully processed to report any warnings or business errors that occurred.</xs:documentation>
                    </xs:annotation>
                </xs:element>
            </xs:sequence>
            <xs:element name="Errors" type="ErrorsType">
                <xs:annotation>
                    <xs:documentation xml:lang="en">Indicates an error occurred during the processing of an OpenTravel message. If the message successfully processes, but there are business errors, those errors should be passed in the warning element.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:choice>
        <xs:element name="UniqueID" type="UniqueID_Type" minOccurs="0">
            <xs:annotation>
                <xs:documentation xml:lang="en">May be used to return the unique id from the request message.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="TPA_Extensions" minOccurs="0" />
    </xs:sequence>
    <xs:attributeGroup ref="OTA_PayloadStdAttributes">
        <xs:annotation>
            <xs:documentation xml:lang="en">The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.</xs:documentation>
        </xs:annotation>
    </xs:attributeGroup>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Success Success (1) (1)
Warnings Warnings 0 (1)
Errors Errors (1) (1)
UniqueID UniqueID 0 (1)
TPA_Extensions TPA_Extensions 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
EchoToken EchoToken Optional
TimeStamp TimeStamp Optional
Target Target Production Optional
Version Version Required
TransactionIdentifier TransactionIdentifier Optional
SequenceNmbr SequenceNmbr Optional
TransactionStatusCode TransactionStatusCode Optional
PrimaryLangID PrimaryLangID Optional
AltLangID AltLangID Optional
RetransmissionIndicator RetransmissionIndicator Optional
