Documentation for Open Travel (OTA)
Definition Type: Element
Name: OriginDestinationInformation
Namespace: http://www.opentravel.org/OTA/2003/05
Type: OriginDestinationInformationType
Containing Schema: OTA_AirAvailRQ.xsd
MinOccurs (1)
MaxOccurs 5
Abstract
Documentation:
Information on the locations between which availability is to be checked.

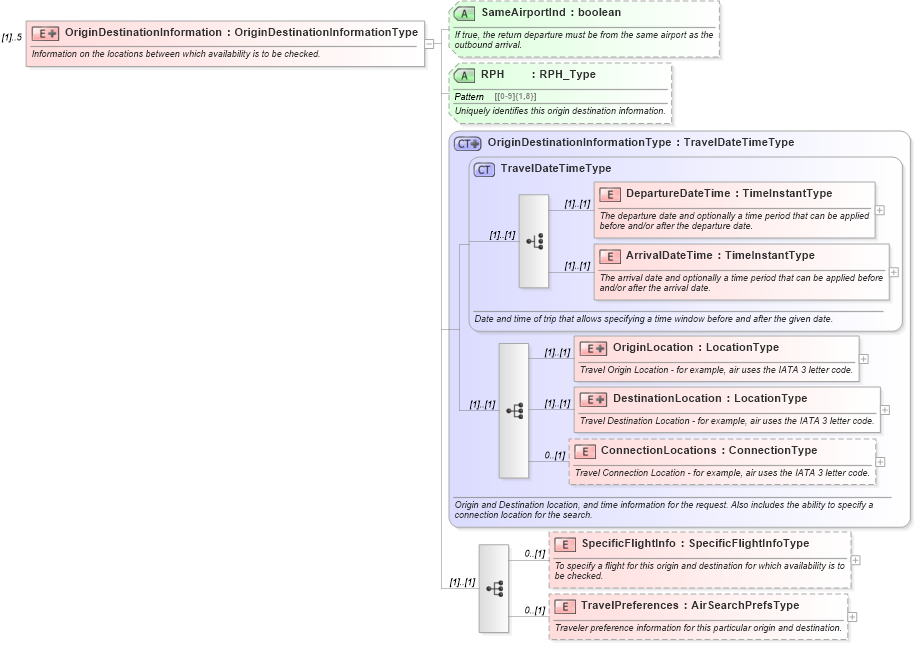

Collapse XSD Schema Diagram:
Drilldown into TravelPreferences in schema ota_airavailrq_xsd Drilldown into SpecificFlightInfo in schema ota_airavailrq_xsd Drilldown into ConnectionLocations in schema ota_commontypes_xsd1 Drilldown into DestinationLocation in schema ota_commontypes_xsd1 Drilldown into OriginLocation in schema ota_commontypes_xsd1 Drilldown into ArrivalDateTime in schema ota_commontypes_xsd1 Drilldown into DepartureDateTime in schema ota_commontypes_xsd1 Drilldown into TravelDateTimeType in schema ota_commontypes_xsd1 Drilldown into OriginDestinationInformationType in schema ota_commontypes_xsd1 Drilldown into RPH in schema ota_airavailrq_xsd Drilldown into SameAirportInd in schema ota_airavailrq_xsdXSD Diagram of OriginDestinationInformation in schema ota_airavailrq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="OriginDestinationInformation" maxOccurs="5">
    <xs:annotation>
        <xs:documentation xml:lang="en">Information on the locations between which availability is to be checked.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="OriginDestinationInformationType">
                <xs:sequence>
                    <xs:element name="SpecificFlightInfo" type="SpecificFlightInfoType" minOccurs="0">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">To specify a flight for this origin and destination for which availability is to be checked.</xs:documentation>
                        </xs:annotation>
                    </xs:element>
                    <xs:element name="TravelPreferences" type="AirSearchPrefsType" minOccurs="0">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">Traveler preference information for this particular origin and destination.</xs:documentation>
                        </xs:annotation>
                    </xs:element>
                </xs:sequence>
                <xs:attribute name="SameAirportInd" type="xs:boolean" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">If true, the return departure must be from the same airport as the outbound arrival.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
                <xs:attribute name="RPH" type="RPH_Type" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">Uniquely identifies this origin destination information.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureDateTime DepartureDateTime (1) (1)
ArrivalDateTime ArrivalDateTime (1) (1)
OriginLocation OriginLocation (1) (1)
DestinationLocation DestinationLocation (1) (1)
ConnectionLocations ConnectionLocations 0 (1)
SpecificFlightInfo nsA:SpecificFlightInfo 0 (1)
TravelPreferences nsA:TravelPreferences 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
SameAirportInd nsA:SameAirportInd Optional
RPH nsA:RPH Optional
Collapse Derivation Tree:
