Documentation for Open Travel (OTA)
Definition Type: Element
Name: OriginDestinationInformation
Namespace: http://www.opentravel.org/OTA/2003/05
Type: OriginDestinationInformationType
Containing Schema: OTA_AirFareDisplayRQ.xsd
MinOccurs (1)
MaxOccurs 5
Abstract
Documentation:
Origin and Destination location as well as all fare related detail information required for fare display.

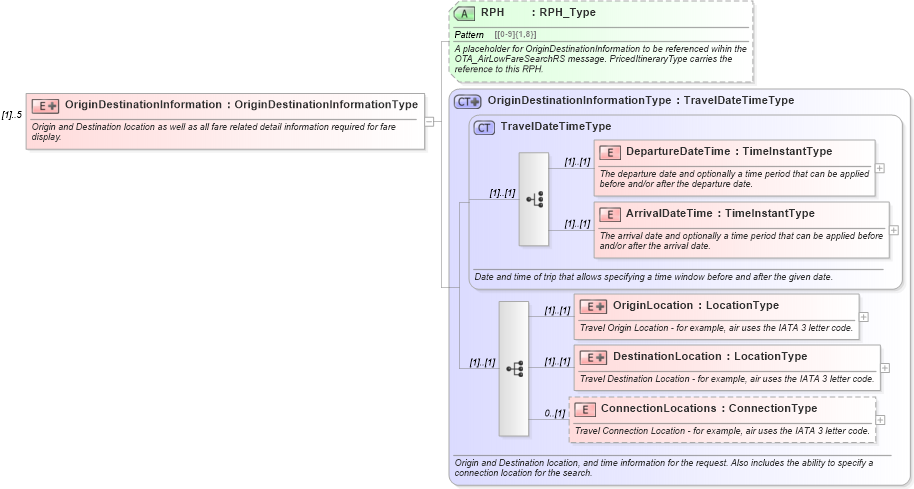

Collapse XSD Schema Diagram:
Drilldown into ConnectionLocations in schema ota_commontypes_xsd1 Drilldown into DestinationLocation in schema ota_commontypes_xsd1 Drilldown into OriginLocation in schema ota_commontypes_xsd1 Drilldown into ArrivalDateTime in schema ota_commontypes_xsd1 Drilldown into DepartureDateTime in schema ota_commontypes_xsd1 Drilldown into TravelDateTimeType in schema ota_commontypes_xsd1 Drilldown into OriginDestinationInformationType in schema ota_commontypes_xsd1 Drilldown into RPH in schema ota_airfaredisplayrq_xsdXSD Diagram of OriginDestinationInformation in schema ota_airfaredisplayrq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="OriginDestinationInformation" maxOccurs="5">
    <xs:annotation>
        <xs:documentation xml:lang="en">Origin and Destination location as well as all fare related detail information required for fare display.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="OriginDestinationInformationType">
                <xs:attribute name="RPH" type="RPH_Type" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">A placeholder for OriginDestinationInformation to be referenced wihin the OTA_AirLowFareSearchRS message. PricedItineraryType carries the reference to this RPH. </xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureDateTime DepartureDateTime (1) (1)
ArrivalDateTime ArrivalDateTime (1) (1)
OriginLocation OriginLocation (1) (1)
DestinationLocation DestinationLocation (1) (1)
ConnectionLocations ConnectionLocations 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
RPH nsA:RPH Optional
Collapse Derivation Tree:
