Documentation for Open Travel (OTA)
Definition Type: Element
Name: OriginDestinationInformation
Namespace: http://www.opentravel.org/OTA/2003/05
Type: OriginDestinationInformationType
Containing Schema: OTA_AirScheduleRQ.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Origin and Destination location, and time information for the Air Schedule request.

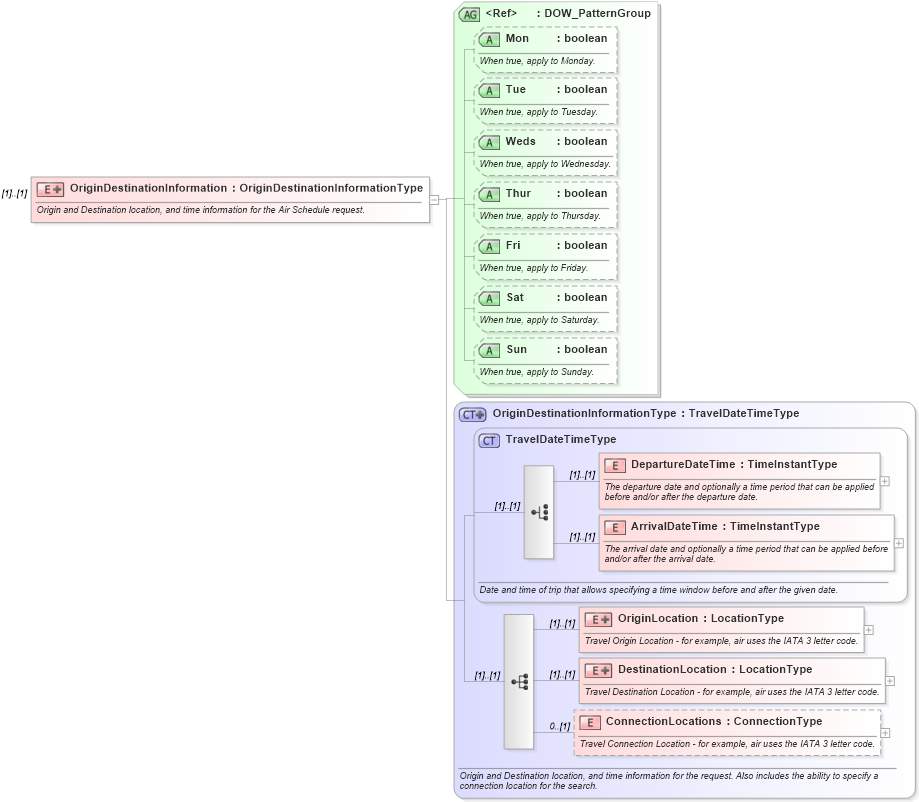

Collapse XSD Schema Diagram:
Drilldown into ConnectionLocations in schema ota_commontypes_xsd1 Drilldown into DestinationLocation in schema ota_commontypes_xsd1 Drilldown into OriginLocation in schema ota_commontypes_xsd1 Drilldown into ArrivalDateTime in schema ota_commontypes_xsd1 Drilldown into DepartureDateTime in schema ota_commontypes_xsd1 Drilldown into TravelDateTimeType in schema ota_commontypes_xsd1 Drilldown into OriginDestinationInformationType in schema ota_commontypes_xsd1 Drilldown into Sun in schema ota_commontypes_xsd1 Drilldown into Sat in schema ota_commontypes_xsd1 Drilldown into Fri in schema ota_commontypes_xsd1 Drilldown into Thur in schema ota_commontypes_xsd1 Drilldown into Weds in schema ota_commontypes_xsd1 Drilldown into Tue in schema ota_commontypes_xsd1 Drilldown into Mon in schema ota_commontypes_xsd1 Drilldown into DOW_PatternGroup in schema ota_commontypes_xsd1XSD Diagram of OriginDestinationInformation in schema ota_airschedulerq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="OriginDestinationInformation">
    <xs:annotation>
        <xs:documentation xml:lang="en">Origin and Destination location, and time information for the Air Schedule request. </xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="OriginDestinationInformationType">
                <xs:attributeGroup ref="DOW_PatternGroup">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">If any day of the week attributes are set to true, only flights for those days of the week are being requested.</xs:documentation>
                    </xs:annotation>
                </xs:attributeGroup>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureDateTime DepartureDateTime (1) (1)
ArrivalDateTime ArrivalDateTime (1) (1)
OriginLocation OriginLocation (1) (1)
DestinationLocation DestinationLocation (1) (1)
ConnectionLocations ConnectionLocations 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Mon Mon Optional
Tue Tue Optional
Weds Weds Optional
Thur Thur Optional
Fri Fri Optional
Sat Sat Optional
Sun Sun Optional
Collapse Derivation Tree:
