<xs:element name="OTA_AirDemandTicketRS">
<xs:annotation>
<xs:documentation xml:lang="en">Provides the capability to respond to a demand ticket request, returning minimal information about the ticket that was issued.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:choice>
<xs:sequence>
<xs:element name="Success" type="SuccessType">
<xs:annotation>
<xs:documentation xml:lang="en">The presence of the empty Success element explicitly indicates that the OTA message succeeded.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Warnings" type="WarningType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Used in conjunction with the Success element to define one or more business errors.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="BookingReferenceID" type="UniqueID_Type" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The PNR record locator for which a ticket was issued.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="TicketItemInfo" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Information for the ticket that was issued.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="PassengerName" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The name of the person for whom the ticket was issued.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="PersonNameType">
<xs:attribute name="PassengerTypeCode" type="AlphaLength3" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Used to identify the PTC code (passenger type code) for the passenger (e.g. infant).</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="ConjunctiveTicket" minOccurs="0" maxOccurs="3">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify conjunctive ticket/document numbers.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="TicketNumber" type="StringLength1to32" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The number of the conjunctive ticket/document that was issued.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="TicketNumber" type="StringLength1to32" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The number of the document that was issued.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Type" type="TicketType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The type of document that was issued (e.g., electronic ticket, MCO).</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ItemNumber" type="NumericStringLength1to5" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The number associated with the document for back office accounting purposes.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="InvoiceNumber" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The invoice number associated with the document that was issued.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TotalAmount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The gross total amount of the ticket.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="CommissionAmount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The amount of commission that will be paid.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="PaymentType" type="OTA_CodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The form of payment for the ticket. Refer to OTA code list Payment Type (PMT).</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="NetAmount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The monetary value of the ticket after any applicable deductions have been made to the total (i.e., gross) amount.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TicketingStatus" type="OTA_CodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The status of the ticket. Refer to OTA Code List Ticketing Status (TST).</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="QueuePNR" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Information to specify which queue a PNR was placed on after the ticket was isssued.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="QueueGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Information to identify a queue.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
<xs:attribute name="Date" type="DateOrMonthDay" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The month and day of the queue on which the PNR is to be placed.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DateRangeNumber" type="xs:integer" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">A number specifying a range of days (e.g., today plus 3, today plus 6) for the queue on which the PNR is to be placed. </xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Comment" type="FreeTextType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">A comment associated with the ticket.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:element name="Errors" type="ErrorsType">
<xs:annotation>
<xs:documentation xml:lang="en">Errors are returned if the request was unable to be processed.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:choice>
<xs:attributeGroup ref="OTA_PayloadStdAttributes">
<xs:annotation>
<xs:documentation xml:lang="en">The standard attributes that appear on the root element for all OTA payloads. </xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
|

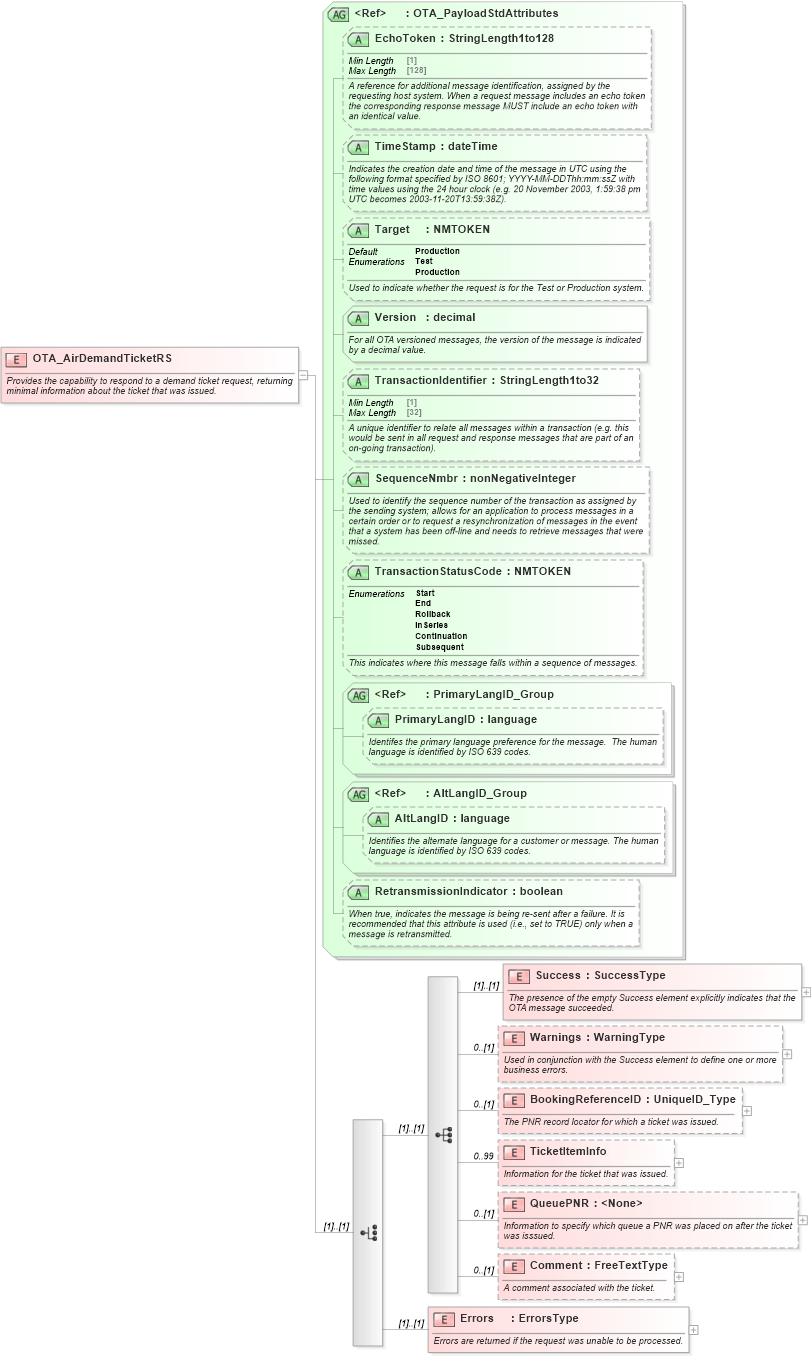

XSD Schema Diagram:
