<xs:element name="OTA_AirDetailsRS">
<xs:annotation>
<xs:documentation xml:lang="en">The AirDetails Response message provides additional flight details for each leg of a flight (e.g. journey time, meal service). Types of information in the response include:
- Marketing Airline
- Board and Off points for each flight leg
- Operating Airline
- Equipment
- Meal service for each cabin type
</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:choice>
<xs:sequence>
<xs:element name="Success" type="SuccessType">
<xs:annotation>
<xs:documentation xml:lang="en"> Standard way to indicate successful processing of an OTA message.
Returning an empty element of this type indicates success.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Warnings" type="WarningsType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en"> Standard way to indicate successful processing of an OTA message, but
one in which warnings are generated.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="FlightDetails" minOccurs="0" maxOccurs="150">
<xs:annotation>
<xs:documentation xml:lang="en">Construct to describe details for a specific flight.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FlightLegDetails" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">Construct for holding flight leg information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="DepartureAirport" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The departure airport of the flight leg.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="AirportLocationGroup" />
</xs:complexType>
</xs:element>
<xs:element name="ArrivalAirport" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The arrival airport of the flight leg.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="AirportLocationGroup" />
</xs:complexType>
</xs:element>
<xs:element name="MarketingAirline" type="CompanyNameType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The marketing airline.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="OperatingAirline" type="OperatingAirlineType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The air carrier engaged directly in the operation of the flight.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Equipment" type="EquipmentType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The type of equipment used for the flight..</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Comment" type="FreeTextType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation xml:lang="en">Any special comments on the leg. (eg. operated by XX)</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="MarketingCabinAvailability" type="CabinAvailabilityType" minOccurs="0" maxOccurs="9">
<xs:annotation>
<xs:documentation xml:lang="en">Identifies the cabins available for the flight.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Warnings" type="WarningsType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Warning information for this flight leg.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attribute name="SequenceNumber" type="xs:integer" use="required">
<xs:annotation>
<xs:documentation xml:lang="en"> The sequence number of the flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="FlightNumber" type="xs:positiveInteger" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The flight number of the flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="JourneyDuration" type="xs:duration" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The duration of the flight from departure location to destination location.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="GroundDuration" type="xs:duration" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The duration of a ground stop.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attributeGroup ref="SmokingIndicatorGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies if the flight is smoking or not.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
<xs:attribute name="OnTimeRate" type="Percentage" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the Dept. of Transport on time rate of the flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Ticket" type="TicketType" default="Paper">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies if the flight is e-ticketable or not.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DepartureDateTime" type="xs:dateTime" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Scheduled flight departure date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ArrivalDateTime" type="xs:dateTime" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Scheduled flight arrival date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DepartureDayOfWeek" type="DayOfWeekType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">A three letter abbreviation for the day of the week as specified in the departure date.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="LegDistance" type="xs:positiveInteger" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The number of miles for this flight leg.
</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DateChangeNbr" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When present contains the number of days by which the flight's arrival date differs from its departure date.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:string">
<xs:enumeration value="-1">
<xs:annotation>
<xs:documentation xml:lang="en">The date of arrival is 1 day before the departure date.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="+1">
<xs:annotation>
<xs:documentation xml:lang="en">The date of arrival is 1 day after the departure date.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="+2">
<xs:annotation>
<xs:documentation xml:lang="en">The date of arrival is 2 days after the departure date.</xs:documentation>
</xs:annotation>
</xs:enumeration>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="AirDetailsRSAttributes" />
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:element name="Errors" type="ErrorsType">
<xs:annotation>
<xs:documentation xml:lang="en"> A collection of errors that occurred during the processing of a message.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:choice>
<xs:attributeGroup ref="OTA_PayloadStdAttributes" />
</xs:complexType>
</xs:element>
|

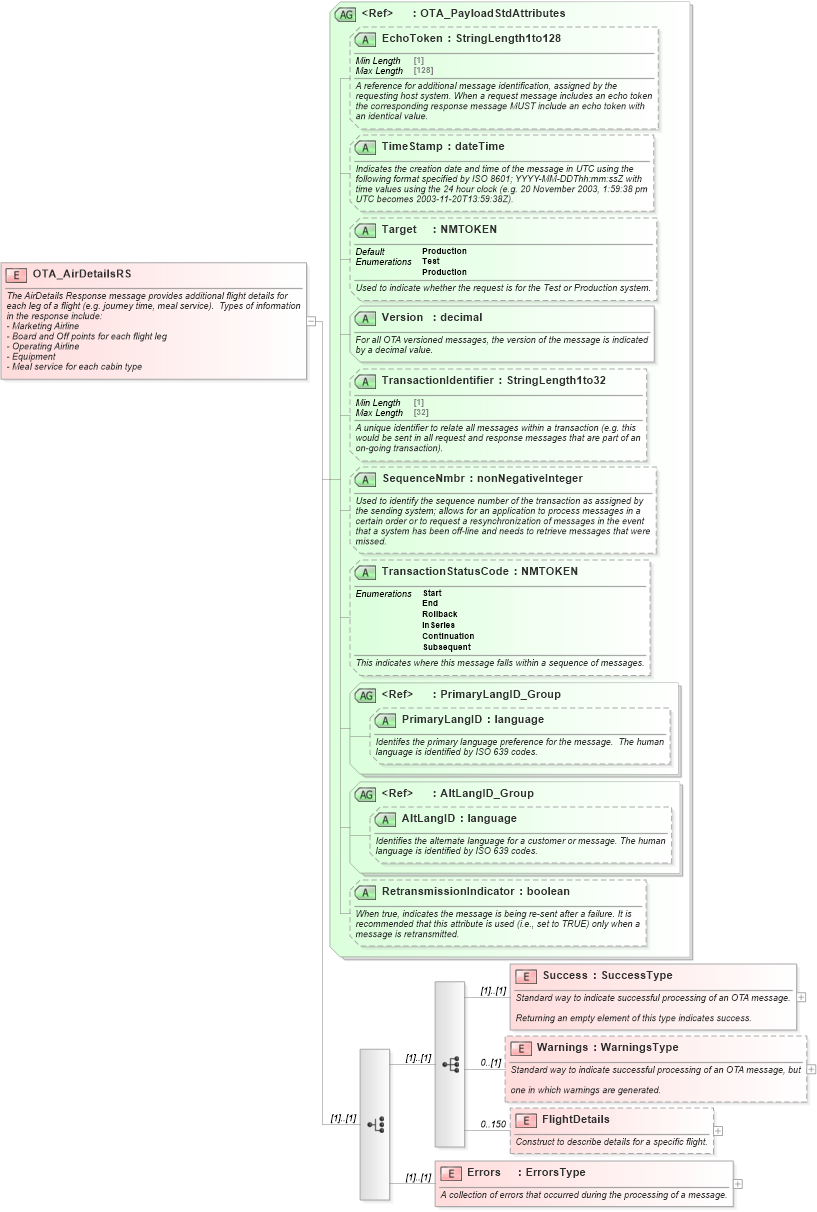

XSD Schema Diagram:
