<xs:element name="OTA_AirFlifoRS">
<xs:annotation>
<xs:documentation xml:lang="en">Details of flight departure, arrival and gate information for a particular flight, including actual as well as scheduled departure and arrival times.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:choice>
<xs:sequence>
<xs:element name="Success" type="SuccessType">
<xs:annotation>
<xs:documentation xml:lang="en"> Standard way to indicate successful processing of an OTA message.
Returning an empty element of this type indicates success.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Warnings" type="WarningsType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Standard way to indicate successful processing of an OTA message, but one in which warnings are generated.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="FlightInfoDetails" minOccurs="0" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">A collection of flight information for a flight number.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FlightLegInfo" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">Information regarding each leg of the flight. A flight leg is one departure and one arrival (non-stop sector). </xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="DepartureAirport" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en"> Departure airport for flight leg.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Comment" type="FreeTextType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation xml:lang="en">Any special comments about the departure airport.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="AirportLocationGroup" />
</xs:complexType>
</xs:element>
<xs:element name="ArrivalAirport" minOccurs="0" maxOccurs="2">
<xs:annotation>
<xs:documentation xml:lang="en">Arrival point of flight segment. Second occurrence indicates diversion airport.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Comment" type="FreeTextType" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation xml:lang="en">Any special comments about the arrival airport.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="AirportLocationGroup" />
<xs:attribute name="Diversion" type="xs:boolean" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates the flight has diverted to this airport.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="BaggageClaim" type="StringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the location or carousel number for baggage from the arriving flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="MarketingAirline" type="CompanyNameType">
<xs:annotation>
<xs:documentation xml:lang="en">The marketing airline.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="OperatingAirline" type="OperatingAirlineType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The operating airline of the flight if it is a codeshare flight.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Equipment" type="EquipmentType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en"> The type of equipment used for the flight..</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Comment" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Any special comments on the leg such as travel advisory messages, passenger advisory messages, etc.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="FreeTextType" />
</xs:simpleContent>
</xs:complexType>
</xs:element>
<xs:element name="DepartureDateTime" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies scheduled and other date time information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Scheduled" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Scheduled departure date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Estimated" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Estimated departure date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Actual" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Actual operational departure date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ReasonCode" type="OTA_CodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The reason attributed to a delay or cancellation.
Refers to OTA Code Table FDC.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="NextAdvisoryTime" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the time when the next information will be published.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="ArrivalDateTime" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies scheduled and other date time information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Scheduled" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Scheduled arrival date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Estimated" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Estimated arrival date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="Actual" type="TimeOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Actual operational arrival date/time for flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ReasonCode" type="OTA_CodeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The reason attributed to a delay or cancellation.
Refers to OTA Code Table FDC.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="OperationTimes" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en"> A collection of OperationTimes.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="OperationTime" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Provides information on operational events for this flight leg e.g. off-ground.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="OperationTimeGroup" />
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="FlifoLegAttributes" />
<xs:attribute name="FlightStatus" type="StringLength1to32" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Status of the current flight operation. </xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="OnTimeRate" type="Percentage" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the Department of Transportation on time rate for the flight leg.
</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Comment" type="FreeTextType" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">Any special comments on the flight.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Warnings" type="WarningsType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Warning(s) specifying an application error for this flight (e.g., invalid flight number).</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attribute name="MessageStatus" type="StringLength1to32" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates various status information about the flight such as real-time, scheduled or flight cancelled.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attributeGroup ref="AirDetailsRSAttributes" />
<xs:attribute name="FlightNumber" type="FlightNumberType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The flight number of the flight.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:element name="Errors" type="ErrorsType">
<xs:annotation>
<xs:documentation xml:lang="en">A collection of errors that occurred during the processing of a message.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:choice>
<xs:attributeGroup ref="OTA_PayloadStdAttributes">
<xs:annotation>
<xs:documentation xml:lang="en"> The OTA_PayloadStdAttributes defines the standard attributes that
appear on the root element for all OTA payloads.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
|

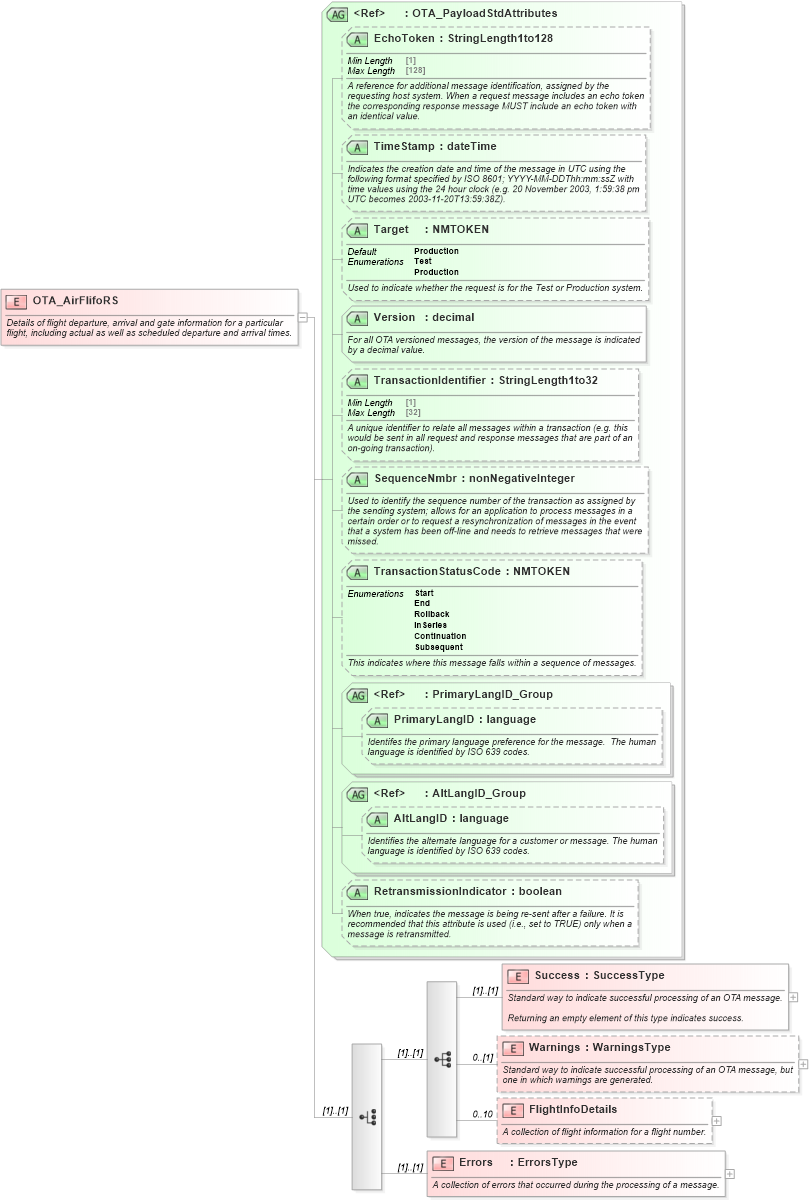

XSD Schema Diagram:
