<xs:element name="OTA_AirPriceRS">
<xs:annotation>
<xs:documentation xml:lang="en">
The Pricing Response message contains a 'Priced Itinerary'. This includes:
- The set of flights sent in the Pricing request message
- Pricing information including taxes and full fare breakdown for each passenger type
- Ticketing information
- Fare Basis Codes and the information necessary to make a Fare Rules entry.
This message contains similar information to a standard airline CRS or GDS itinerary pricing response message.
</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:choice>
<xs:sequence maxOccurs="2">
<xs:element name="Success" type="SuccessType">
<xs:annotation>
<xs:documentation xml:lang="en"> Standard way to indicate successful processing of an OTA message. Returning an empty element of this type indicates success.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Warnings" type="WarningsType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en"> Standard way to indicate successful processing of an OTA message, but one in which warnings are generated.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="PricedItineraries" type="PricedItinerariesType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Provides priced itinerary information. </xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="BookingReferenceID" type="UniqueID_Type" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Used to identify the PNR containing the itinerary that was priced.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="PricingOverview" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Pricing information which applies to all the priced itineraries.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FareInfo" type="FareType" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Fare information that applies to all of the priced itineraries.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Notes" type="FreeTextType" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Free text information that applies to all the priced itineraries.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Account" minOccurs="0" maxOccurs="5">
<xs:annotation>
<xs:documentation xml:lang="en">An account code that applies to all the priced itineraries.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Code" type="StringLength1to32" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The account code.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="PTC_FareBreakdowns" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">A collection of fares by PTC code.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="PTC_FareBreakdown" type="PTCFareBreakdownType" maxOccurs="20">
<xs:annotation>
<xs:documentation xml:lang="en">The fare information for a specific PTC code for all of the priced itineraries.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="PricingIndicator" minOccurs="0" maxOccurs="20">
<xs:annotation>
<xs:documentation xml:lang="en">Pricing information for all the priced itineraries.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="PricingInfoGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Use to specify a type of pricing information and whether it should be applied or not applied to the pricing.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="Type" type="AlphaNumericStringLength1to14" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies how the pricing was done.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="StatisticalCode" type="AlphaNumericStringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Used for domestic or international sales differentiation.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="ValidatingAirlineCode" type="AlphaNumericStringLength1to8" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The code of the validating airline carrier.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="PriceQuoteDate" type="DateOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The date that pricing was done.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="FirstTicketDate" type="DateOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The first date this itinerary can be ticketed at this price.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="DepartureDate" type="DateOrDateTimeType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The first date of departure for this itinerary.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:element name="Errors" type="ErrorsType">
<xs:annotation>
<xs:documentation xml:lang="en"> A collection of errors that occurred during the processing of a message.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:choice>
<xs:attributeGroup ref="OTA_PayloadStdAttributes">
<xs:annotation>
<xs:documentation xml:lang="en"> The OTA_PayloadStdAttributes defines the standard attributes that appear on the root element for all OTA payloads.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
|

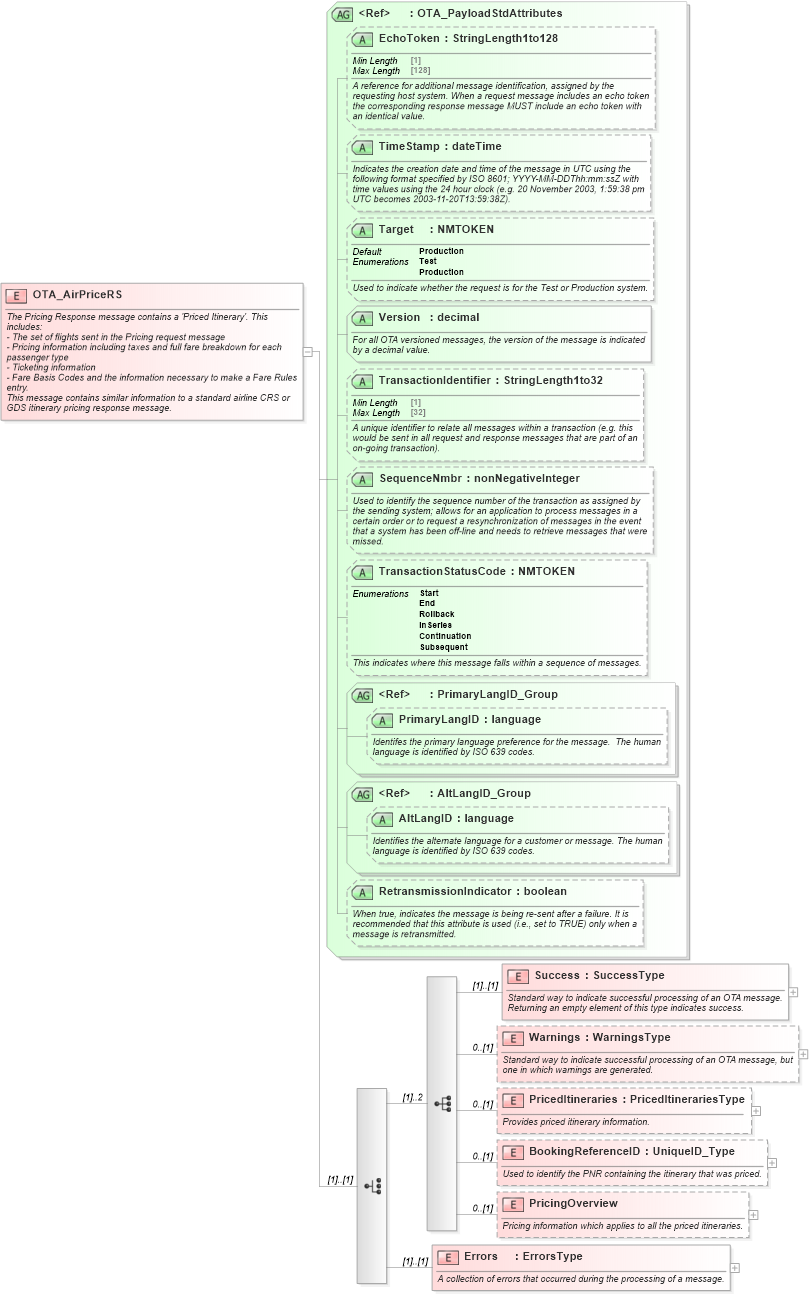

XSD Schema Diagram:
