Definition Type: Element
Name: OTA_CruiseBookingDocumentRS
Namespace: http://www.opentravel.org/OTA/2003/05
Containing Schema: OTA_CruiseBookingDocumentRS.xsd
Abstract
Documentation:
Provides confirmation that the documents will be delivered as requested.

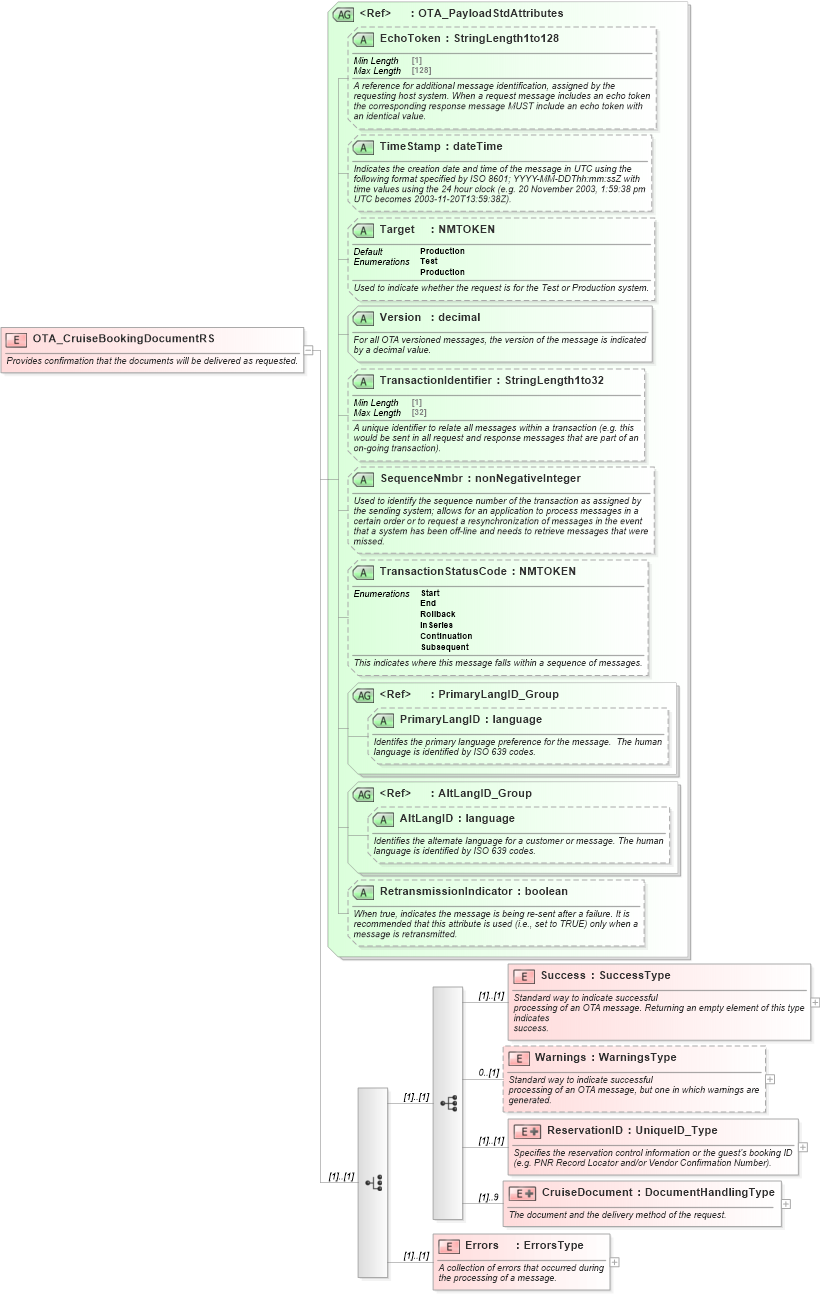

Collapse XSD Schema Diagram:
Drilldown into Errors in schema ota_cruisebookingdocumentrs_xsd Drilldown into CruiseDocument in schema ota_cruisebookingdocumentrs_xsd Drilldown into ReservationID in schema ota_cruisebookingdocumentrs_xsd Drilldown into Warnings in schema ota_cruisebookingdocumentrs_xsd Drilldown into Success in schema ota_cruisebookingdocumentrs_xsd Drilldown into RetransmissionIndicator in schema ota_commontypes_xsd1 Drilldown into AltLangID in schema ota_commontypes_xsd1 Drilldown into AltLangID_Group in schema ota_commontypes_xsd1 Drilldown into PrimaryLangID in schema ota_commontypes_xsd1 Drilldown into PrimaryLangID_Group in schema ota_commontypes_xsd1 Drilldown into TransactionStatusCode in schema ota_commontypes_xsd1 Drilldown into SequenceNmbr in schema ota_commontypes_xsd1 Drilldown into TransactionIdentifier in schema ota_commontypes_xsd1 Drilldown into Version in schema ota_commontypes_xsd1 Drilldown into Target in schema ota_commontypes_xsd1 Drilldown into TimeStamp in schema ota_commontypes_xsd1 Drilldown into EchoToken in schema ota_commontypes_xsd1 Drilldown into OTA_PayloadStdAttributes in schema ota_commontypes_xsd1XSD Diagram of OTA_CruiseBookingDocumentRS in schema ota_cruisebookingdocumentrs_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="OTA_CruiseBookingDocumentRS">
    <xs:annotation>
        <xs:documentation xml:lang="en">Provides confirmation that the documents will be delivered as requested.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:choice>
            <xs:sequence>
                <xs:element name="Success" type="SuccessType">
                    <xs:annotation>
                        <xs:documentation xml:lang="en"> Standard way to indicate successful
processing of an OTA message. Returning an empty element of this type indicates
success.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="Warnings" type="WarningsType" minOccurs="0">
                    <xs:annotation>
                        <xs:documentation xml:lang="en"> Standard way to indicate successful
processing of an OTA message, but one in which warnings are
generated.</xs:documentation>
                    </xs:annotation>
                </xs:element>
                <xs:element name="ReservationID">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">Specifies the reservation control information or the guest's booking ID  (e.g. PNR Record Locator and/or Vendor Confirmation Number).</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:complexContent>
                            <xs:extension base="UniqueID_Type">
                                <xs:attribute name="SyncDateTime" type="xs:dateTime" use="optional">
                                    <xs:annotation>
                                        <xs:documentation xml:lang="en">Specifies the Syncronization date of the record between GDS and CruiseLine.
</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                            </xs:extension>
                        </xs:complexContent>
                    </xs:complexType>
                </xs:element>
                <xs:element name="CruiseDocument" maxOccurs="9">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">The document and the delivery method of the request.</xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:complexContent>
                            <xs:extension base="DocumentHandlingType">
                                <xs:attribute name="Status" type="OTA_CodeType" use="optional">
                                    <xs:annotation>
                                        <xs:documentation xml:lang="en">Provides the status of the cruise booking document (e.g. "confirmed" or "declined"). Refer to OTA Code List Status (STS).</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                                <xs:attribute name="Reason" type="StringLength1to32" use="optional">
                                    <xs:annotation>
                                        <xs:documentation xml:lang="en">Provides a short description of the reason for why the document has a particular status.</xs:documentation>
                                    </xs:annotation>
                                </xs:attribute>
                            </xs:extension>
                        </xs:complexContent>
                    </xs:complexType>
                </xs:element>
            </xs:sequence>
            <xs:element name="Errors" type="ErrorsType">
                <xs:annotation>
                    <xs:documentation xml:lang="en"> A collection of errors that occurred during
the processing of a message.</xs:documentation>
                </xs:annotation>
            </xs:element>
        </xs:choice>
        <xs:attributeGroup ref="OTA_PayloadStdAttributes">
            <xs:annotation>
                <xs:documentation xml:lang="en">The standard attributes that appear on the root element for all OTA payloads. </xs:documentation>
            </xs:annotation>
        </xs:attributeGroup>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Success nsA:Success (1) (1)
Warnings nsA:Warnings 0 (1)
ReservationID nsA:ReservationID (1) (1)
CruiseDocument nsA:CruiseDocument (1) 9
Errors nsA:Errors (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
EchoToken EchoToken Optional
TimeStamp TimeStamp Optional
Target Target Production Optional
Version Version Required
TransactionIdentifier TransactionIdentifier Optional
SequenceNmbr SequenceNmbr Optional
TransactionStatusCode TransactionStatusCode Optional
PrimaryLangID PrimaryLangID Optional
AltLangID AltLangID Optional
RetransmissionIndicator RetransmissionIndicator Optional
