Definition Type: Element
Name: PassengerNameReference
Namespace: http://www.opentravel.org/OTA/2003/05
Containing Schema: OTA_AirDemandTicketRQ.xsd
MinOccurs 0
MaxOccurs 99
Abstract
Documentation:
A reference to the passenger name number to be ticketed. A range of name numbers may also be requested.

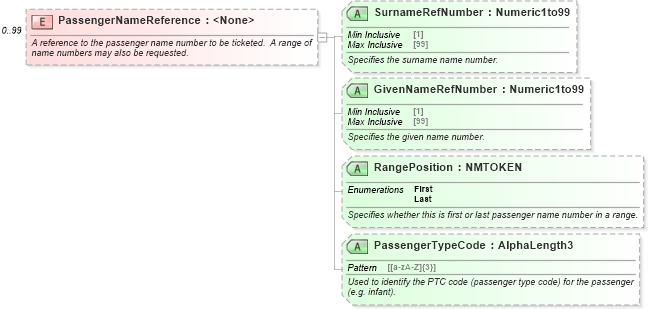

Collapse XSD Schema Diagram:
Drilldown into PassengerTypeCode in schema ota_airdemandticketrq_xsd Drilldown into RangePosition in schema ota_airdemandticketrq_xsd Drilldown into GivenNameRefNumber in schema ota_airdemandticketrq_xsd Drilldown into SurnameRefNumber in schema ota_airdemandticketrq_xsdXSD Diagram of PassengerNameReference in schema ota_airdemandticketrq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="PassengerNameReference" minOccurs="0" maxOccurs="99">
    <xs:annotation>
        <xs:documentation xml:lang="en">A reference to the passenger name number to be ticketed.  A range of name numbers may also be requested.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:attribute name="SurnameRefNumber" type="Numeric1to99" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Specifies the surname name number.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="GivenNameRefNumber" type="Numeric1to99" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Specifies the given name number.</xs:documentation>
            </xs:annotation>
        </xs:attribute>
        <xs:attribute name="RangePosition" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Specifies whether this is first or last passenger name number in a range.</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
                <xs:restriction base="xs:NMTOKEN">
                    <xs:enumeration value="First">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">Indicates that the surname and given name reference numbers represent the first passenger name in a range of passengers to be ticketed. </xs:documentation>
                        </xs:annotation>
                    </xs:enumeration>
                    <xs:enumeration value="Last">
                        <xs:annotation>
                            <xs:documentation xml:lang="en">Indicates that the surname and given name reference numbers represent the last passenger name in a range of passengers to be ticketed.</xs:documentation>
                        </xs:annotation>
                    </xs:enumeration>
                </xs:restriction>
            </xs:simpleType>
        </xs:attribute>
        <xs:attribute name="PassengerTypeCode" type="AlphaLength3" use="optional">
            <xs:annotation>
                <xs:documentation xml:lang="en">Used to identify the PTC code (passenger type code) for the passenger (e.g. infant).</xs:documentation>
            </xs:annotation>
        </xs:attribute>
    </xs:complexType>
</xs:element>
Collapse Child Attributes:
Name Type Default Value Use
SurnameRefNumber nsA:SurnameRefNumber Optional
GivenNameRefNumber nsA:GivenNameRefNumber Optional
RangePosition nsA:RangePosition Optional
PassengerTypeCode nsA:PassengerTypeCode Optional
