Definition Type: AttributeGroup
Name: PositionGroup
Containing Schema: OTA_CommonTypes.xsd
Documentation:
Used to specify the geographic coordinates of a location.

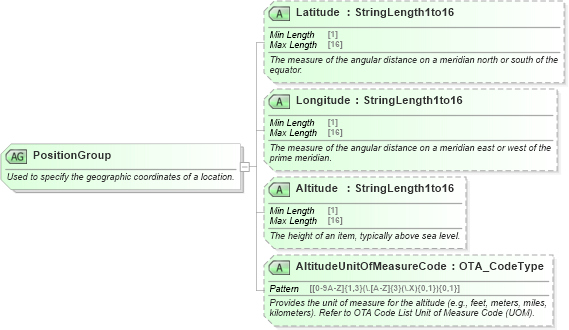

Collapse XSD Schema Diagram:
Drilldown into AltitudeUnitOfMeasureCode in schema ota_commontypes_xsd1 Drilldown into Altitude in schema ota_commontypes_xsd1 Drilldown into Longitude in schema ota_commontypes_xsd1 Drilldown into Latitude in schema ota_commontypes_xsd1XSD Diagram of PositionGroup in schema ota_commontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:attributeGroup name="PositionGroup">
    <xs:annotation>
        <xs:documentation xml:lang="en">Used to specify the geographic coordinates of a location.</xs:documentation>
    </xs:annotation>
    <xs:attribute name="Latitude" type="StringLength1to16" use="optional">
        <xs:annotation>
            <xs:documentation xml:lang="en">The measure of the angular distance on a meridian north or south of the equator.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="Longitude" type="StringLength1to16" use="optional">
        <xs:annotation>
            <xs:documentation xml:lang="en">The measure of the angular distance on a meridian east or west of the prime meridian.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="Altitude" type="StringLength1to16" use="optional">
        <xs:annotation>
            <xs:documentation xml:lang="en">The height of an item, typically above sea level.</xs:documentation>
        </xs:annotation>
    </xs:attribute>
    <xs:attribute name="AltitudeUnitOfMeasureCode" type="OTA_CodeType" use="optional">
        <xs:annotation>
            <xs:documentation xml:lang="en">Provides the unit of measure for the altitude (e.g., feet, meters, miles, kilometers). Refer to OTA Code List Unit of Measure Code (UOM).</xs:documentation>
        </xs:annotation>
    </xs:attribute>
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
Latitude Latitude Optional
Longitude Longitude Optional
Altitude Altitude Optional
AltitudeUnitOfMeasureCode AltitudeUnitOfMeasureCode Optional
