Documentation for Open Travel (OTA)
Definition Type: Element
Name: PricedItinerary
Type: PricedItineraryType
Containing Schema: OTA_AirCommonTypes.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Documentation:
Itinerary with pricing information.

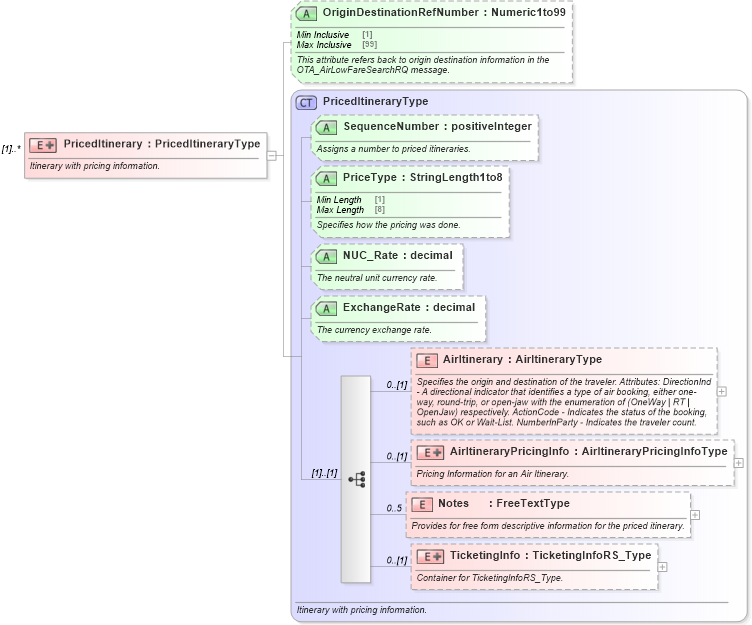

Collapse XSD Schema Diagram:
Drilldown into TicketingInfo in schema ota_aircommontypes_xsd1 Drilldown into Notes in schema ota_aircommontypes_xsd1 Drilldown into AirItineraryPricingInfo in schema ota_aircommontypes_xsd1 Drilldown into AirItinerary in schema ota_aircommontypes_xsd1 Drilldown into ExchangeRate in schema ota_aircommontypes_xsd Drilldown into NUC_Rate in schema ota_aircommontypes_xsd Drilldown into PriceType in schema ota_aircommontypes_xsd Drilldown into SequenceNumber in schema ota_aircommontypes_xsd Drilldown into PricedItineraryType in schema ota_aircommontypes_xsd1 Drilldown into OriginDestinationRefNumber in schema ota_aircommontypes_xsdXSD Diagram of PricedItinerary in schema ota_aircommontypes_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="PricedItinerary" maxOccurs="unbounded">
    <xs:annotation>
        <xs:documentation xml:lang="en">Itinerary with pricing information.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="PricedItineraryType">
                <xs:attribute name="OriginDestinationRefNumber" type="Numeric1to99" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">This attribute refers back to origin destination information in the OTA_AirLowFareSearchRQ message.</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AirItinerary AirItinerary 0 (1)
AirItineraryPricingInfo AirItineraryPricingInfo 0 (1)
Notes Notes 0 5
TicketingInfo TicketingInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
SequenceNumber SequenceNumber Optional
PriceType PriceType Optional
NUC_Rate NUC_Rate Optional
ExchangeRate ExchangeRate Optional
OriginDestinationRefNumber OriginDestinationRefNumber Optional
Collapse Derivation Tree:
