<xs:complexType name="PTCFareBreakdownType">
<xs:annotation>
<xs:documentation xml:lang="en">Per passenger type code pricing for this itinerary. Set if fareBreakdown was requested.</xs:documentation>
</xs:annotation>
<xs:sequence>
<xs:element name="PassengerTypeQuantity" type="PassengerTypeQuantityType">
<xs:annotation>
<xs:documentation xml:lang="en">Number of individuals traveling under this PTC</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="FareBasisCodes" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">This is a collection of fare basis codes.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FareBasisCode" maxOccurs="16">
<xs:annotation>
<xs:documentation xml:lang="en">Fare basis code for the price for this PTC</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="StringLength1to16">
<xs:attribute name="FlightSegmentRPH" type="RPH_Type" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">A reference to the flight segment associated with this fare basis code.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="NotValidBefore" type="xs:date" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The date before which the fare basis code is not valid.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="NotValidAfter" type="xs:date" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The date after which the fare basis code is not valid.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:extension>
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="PassengerFare" minOccurs="0" maxOccurs="2">
<xs:annotation>
<xs:documentation xml:lang="en">The total passenger fare with cost breakdown.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="FareType">
<xs:sequence>
<xs:element name="TicketFeeDetail" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The ticket fee information for this passsenger type code.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Fee" maxOccurs="9">
<xs:annotation>
<xs:documentation xml:lang="en">The ticket fee code.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="BaseFee" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The base fee amount.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Amount" type="Money" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The base fee amount.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Taxes" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">A collection of taxes.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Tax" type="AirTaxType" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">The tax for the ticket fee.</xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
<xs:attribute name="Amount" type="Money" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The total amount for all ticket fee taxes.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="Total" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">The total of the base fee and taxes. </xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Amount" type="Money" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The total of the base fee and taxes.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="FeeCode" type="StringLength1to16" use="required" />
<xs:attribute name="Description" type="StringLength0to128" use="optional" />
</xs:complexType>
</xs:element>
<xs:element name="Total" minOccurs="0" maxOccurs="3">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify the total base fees, total taxes and total of both.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="Type" use="required">
<xs:simpleType>
<xs:restriction base="xs:NMTOKEN">
<xs:enumeration value="Base">
<xs:annotation>
<xs:documentation xml:lang="en">The total of base ticket fees.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="Tax">
<xs:annotation>
<xs:documentation xml:lang="en">The total of all taxes for the ticket fees.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="Total">
<xs:annotation>
<xs:documentation xml:lang="en">The total of all ticket fees.</xs:documentation>
</xs:annotation>
</xs:enumeration>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
<xs:attribute name="Amount" type="Money" use="required" />
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attributeGroup ref="CurrencyCodeGroup">
<xs:annotation>
<xs:documentation xml:lang="en">The currency code for all of the ticketing fees.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="Usage" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies the usage of the passenger fare structure.</xs:documentation>
</xs:annotation>
<xs:simpleType>
<xs:restriction base="xs:NMTOKEN">
<xs:enumeration value="PassengerFare">
<xs:annotation>
<xs:documentation xml:lang="en">The fare information for the passenger fees.</xs:documentation>
</xs:annotation>
</xs:enumeration>
<xs:enumeration value="TicketFee">
<xs:annotation>
<xs:documentation xml:lang="en">The fare information for the ticket fees.</xs:documentation>
</xs:annotation>
</xs:enumeration>
</xs:restriction>
</xs:simpleType>
</xs:attribute>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="TravelerRefNumber" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Contains the RPH reference to the traveler.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attributeGroup ref="TravelerRefNumberGroup" />
</xs:complexType>
</xs:element>
<xs:element name="TicketDesignators" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">This is a collection of ticket designator elements.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="TicketDesignator" maxOccurs="10">
<xs:annotation>
<xs:documentation xml:lang="en">Contains the discount code and a flight reference applicable to the fare.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:attribute name="FlightRefRPH" type="RPH_Type" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Identifies the flight to which this ticket designator applies.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TicketDesignatorCode" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies a discount code applicable to the fare.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="TicketDesignatorExtension" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies an extension that a carrier may apply to a ticket designator.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="Endorsements" minOccurs="0">
<xs:annotation>
<xs:documentation xml:lang="en">Container for endorsements.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="Endorsement" maxOccurs="9">
<xs:annotation>
<xs:documentation xml:lang="en">Specifies ticket endorsement information.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:simpleContent>
<xs:extension base="FreeTextType" />
</xs:simpleContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="NonRefundableIndicator" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates whether the ticket is refundable. If true, the ticket is NOT refundable.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="NonEndorsableIndicator" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">Indicates whether the ticket is endorsable. If true, the ticket is NOT endorsable.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
<xs:element name="FareInfo" minOccurs="0" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Detailed information on individual priced fares. </xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:annotation>
<xs:documentation xml:lang="en"> Information used to define a fare and its associated rules information.</xs:documentation>
</xs:annotation>
<xs:complexContent>
<xs:extension base="FareInfoType">
<xs:sequence>
<xs:element name="PassengerFare" type="FareType">
<xs:annotation>
<xs:documentation xml:lang="en">The fare with cost breakdown. </xs:documentation>
</xs:annotation>
</xs:element>
</xs:sequence>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
<xs:element name="PricingUnit" minOccurs="0" maxOccurs="20">
<xs:annotation>
<xs:documentation xml:lang="en">A pricing unit for a passenger type code.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FareComponent" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">Provides the data for a component of the fare.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:sequence>
<xs:element name="FlightLeg" maxOccurs="99">
<xs:annotation>
<xs:documentation xml:lang="en">The flight leg information for the fare component.</xs:documentation>
</xs:annotation>
<xs:complexType>
<xs:complexContent>
<xs:extension base="BookFlightSegmentType">
<xs:attribute name="SurchargeInd" type="xs:boolean" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">When true, a surcharge applies to this flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="FareBasisCode" type="StringLength1to16" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">The fare basis code for this flight leg.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attributeGroup ref="UnitsOfMeasureGroup">
<xs:annotation>
<xs:documentation xml:lang="en">Used to specify the free baggage allowance for this flight leg.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:extension>
</xs:complexContent>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="Number" type="Numeric1to99" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">The fare component number.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attributeGroup ref="CurrencyAmountGroup">
<xs:annotation>
<xs:documentation xml:lang="en">The currency code and the amount for the fare component.</xs:documentation>
</xs:annotation>
</xs:attributeGroup>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="UnitNumber" type="Numeric1to99" use="required">
<xs:annotation>
<xs:documentation xml:lang="en">A sequential number that identifies this pricing unit.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
</xs:element>
</xs:sequence>
<xs:attribute name="PricingSource" type="PricingSourceType" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en"> Indicates whether the fare is public, private or both.</xs:documentation>
</xs:annotation>
</xs:attribute>
<xs:attribute name="FlightRefNumberRPHList" type="ListOfRPH" use="optional">
<xs:annotation>
<xs:documentation xml:lang="en">One or more flights to which this fare applies.</xs:documentation>
</xs:annotation>
</xs:attribute>
</xs:complexType>
|

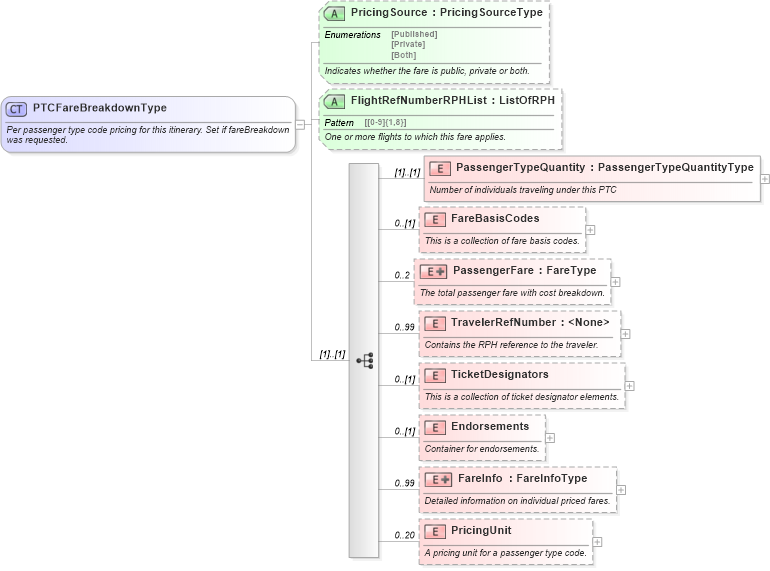

XSD Schema Diagram:
