Documentation for Open Travel (OTA)
Definition Type: Element
Name: RuleReqInfo
Namespace: http://www.opentravel.org/OTA/2003/05
Type: FareInfoType
Containing Schema: OTA_AirRulesRQ.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
The Rule Request Information required to return all applicable fare rule categories.

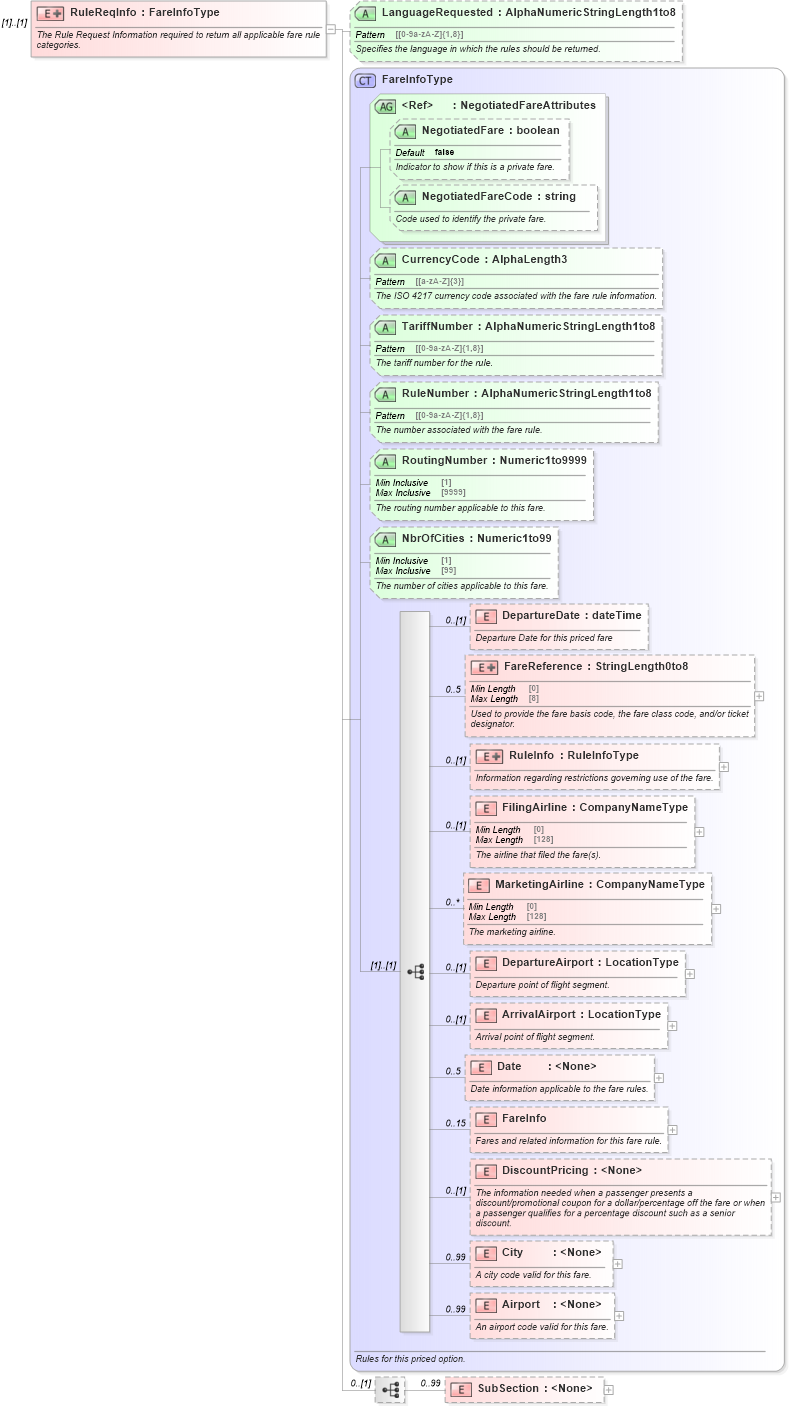

Collapse XSD Schema Diagram:
Drilldown into SubSection in schema ota_airrulesrq_xsd Drilldown into Airport in schema ota_aircommontypes_xsd Drilldown into City in schema ota_aircommontypes_xsd Drilldown into DiscountPricing in schema ota_aircommontypes_xsd Drilldown into FareInfo in schema ota_aircommontypes_xsd Drilldown into Date in schema ota_aircommontypes_xsd Drilldown into ArrivalAirport in schema ota_aircommontypes_xsd Drilldown into DepartureAirport in schema ota_aircommontypes_xsd Drilldown into MarketingAirline in schema ota_aircommontypes_xsd Drilldown into FilingAirline in schema ota_aircommontypes_xsd Drilldown into RuleInfo in schema ota_aircommontypes_xsd Drilldown into FareReference in schema ota_aircommontypes_xsd Drilldown into DepartureDate in schema ota_aircommontypes_xsd Drilldown into NbrOfCities in schema ota_aircommontypes_xsd Drilldown into RoutingNumber in schema ota_aircommontypes_xsd Drilldown into RuleNumber in schema ota_aircommontypes_xsd Drilldown into TariffNumber in schema ota_aircommontypes_xsd Drilldown into CurrencyCode in schema ota_aircommontypes_xsd Drilldown into NegotiatedFareCode in schema ota_aircommontypes_xsd Drilldown into NegotiatedFare in schema ota_aircommontypes_xsd Drilldown into NegotiatedFareAttributes in schema ota_aircommontypes_xsd Drilldown into FareInfoType in schema ota_aircommontypes_xsd Drilldown into LanguageRequested in schema ota_airrulesrq_xsdXSD Diagram of RuleReqInfo in schema ota_airrulesrq_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xs:element name="RuleReqInfo">
    <xs:annotation>
        <xs:documentation xml:lang="en">The Rule Request Information required to return all applicable fare rule categories.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:complexContent>
            <xs:extension base="FareInfoType">
                <xs:sequence minOccurs="0">
                    <xs:element name="SubSection" minOccurs="0" maxOccurs="99">
                        <xs:complexType>
                            <xs:attribute name="SubTitle" type="StringLength1to32" use="optional" />
                            <xs:attribute name="SubCode" type="StringLength1to16" use="optional" />
                            <xs:attribute name="SubSectionNumber" type="StringLength1to8" use="optional" />
                        </xs:complexType>
                    </xs:element>
                </xs:sequence>
                <xs:attribute name="LanguageRequested" type="AlphaNumericStringLength1to8" use="optional">
                    <xs:annotation>
                        <xs:documentation xml:lang="en">Specifies the language in which the rules should be returned.
</xs:documentation>
                    </xs:annotation>
                </xs:attribute>
            </xs:extension>
        </xs:complexContent>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DepartureDate DepartureDate 0 (1)
FareReference FareReference 0 5
RuleInfo RuleInfo 0 (1)
FilingAirline FilingAirline 0 (1)
MarketingAirline MarketingAirline 0 unbounded
DepartureAirport DepartureAirport 0 (1)
ArrivalAirport ArrivalAirport 0 (1)
Date Date 0 5
FareInfo FareInfo 0 15
DiscountPricing DiscountPricing 0 (1)
City City 0 99
Airport Airport 0 99
SubSection nsA:SubSection 0 99
Collapse Child Attributes:
Name Type Default Value Use
NegotiatedFare NegotiatedFare false Optional
NegotiatedFareCode NegotiatedFareCode Optional
CurrencyCode CurrencyCode Optional
TariffNumber TariffNumber Optional
RuleNumber RuleNumber Optional
RoutingNumber RoutingNumber Optional
NbrOfCities NbrOfCities Optional
LanguageRequested nsA:LanguageRequested Optional
Collapse Derivation Tree:
